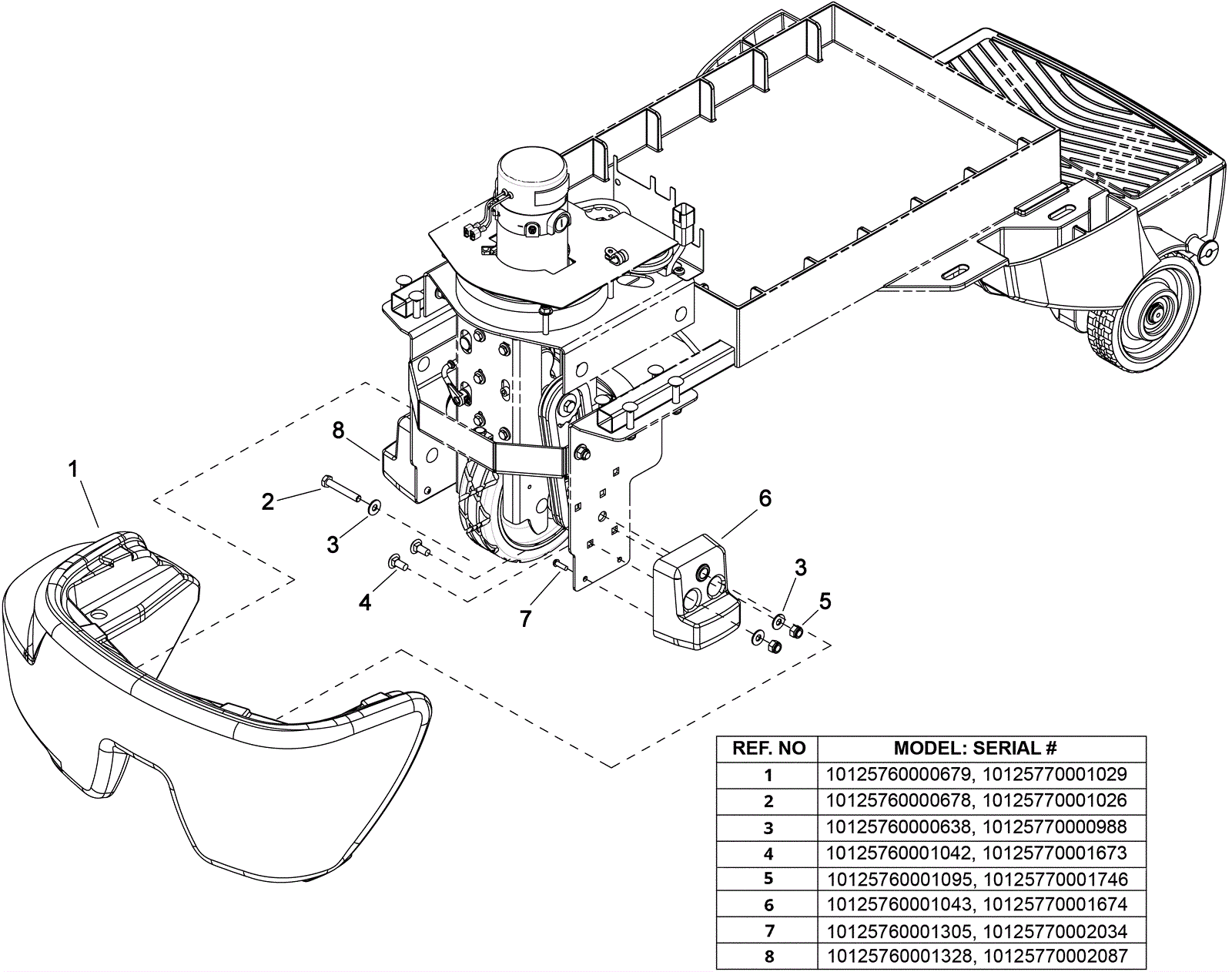

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
273-6951
|
Bumper |
$388.30
|
1 |
(see reference number 3 and 4) |
usually ships 1-5 days |
1b |
273-9142
|
Bumper |
$419.01
|
1 |
(see reference number 6) |
usually ships 11-15 days |
2 |
999-0893
|
Screw 5/16-18 x 2 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
6 |
|
ships same day |
4 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$2.16
|
4 |
|
ships same day |
5 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
4 |
|
ships same day |
6 |
173-5949
|
Left hand tipping pad |
$24.13
|
1 |
|
usually ships 11-15 days |
7 |
173-5950
|
Screw KA50 x 16 oval head phillips SS (OBSOLETE) |
$2.85
|
4 |
|
usually ships 11-15 days |
8 |
273-6952
|
Right hand tipping pad |
$21.67
|
1 |
|
usually ships 11-15 days |
