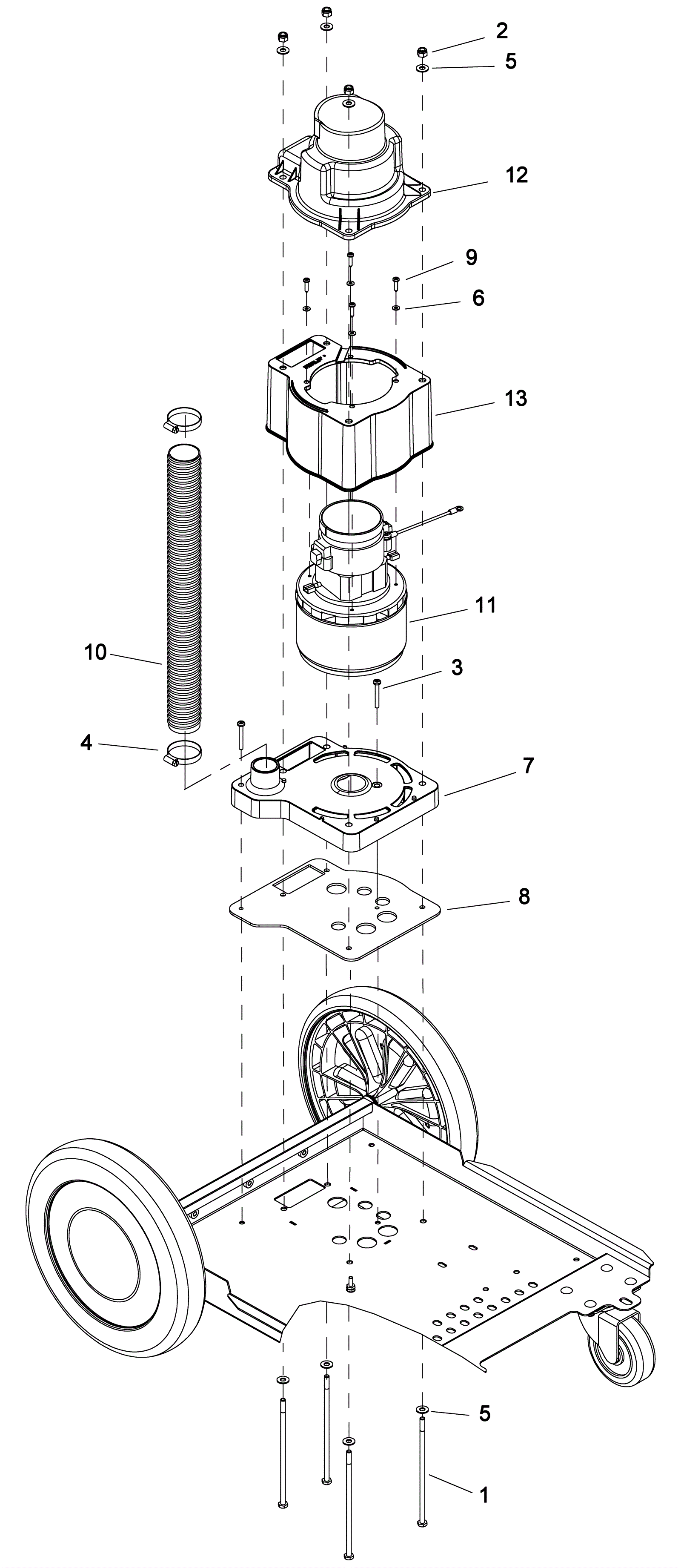

DOMINATOR 13 Vacuum Assembly without Heat - Single Vac

#PartDescriptionPriceReqNotesAvailability
1 273-6939 Screw 1/4-20 x 6 1/2 hex head cap $2.58 4 usually ships 1-5 days
2 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
3 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
4 997-2000 Hose clamp $2.37 2 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 8 ships same day
7 273-6940 Vacuum manifold $10.80 1 usually ships 1-5 days
8 273-6941 Manifold gasket $30.60 1 usually ships 7-19 days
9 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
10 273-6942 Vacuum hose 1 1/2 x 17 inch $19.60 1 usually ships 1-5 days
11a 273-6943 120V 3 stage vacuum motor $215.04 1 (includes 11b) usually ships 7-19 days
11b 273-4024 Carbon brush (pkg of 2) $10.50 2 usually ships 7-19 days
12 273-6936 Vacuum motor cover $39.90 1 usually ships 7-19 days
13 273-6944 Vacuum motor base $11.40 1 usually ships 7-19 days
N/S 273-6945 Vac housing $60.50 (includes 12 and 13) usually ships 1-5 days
