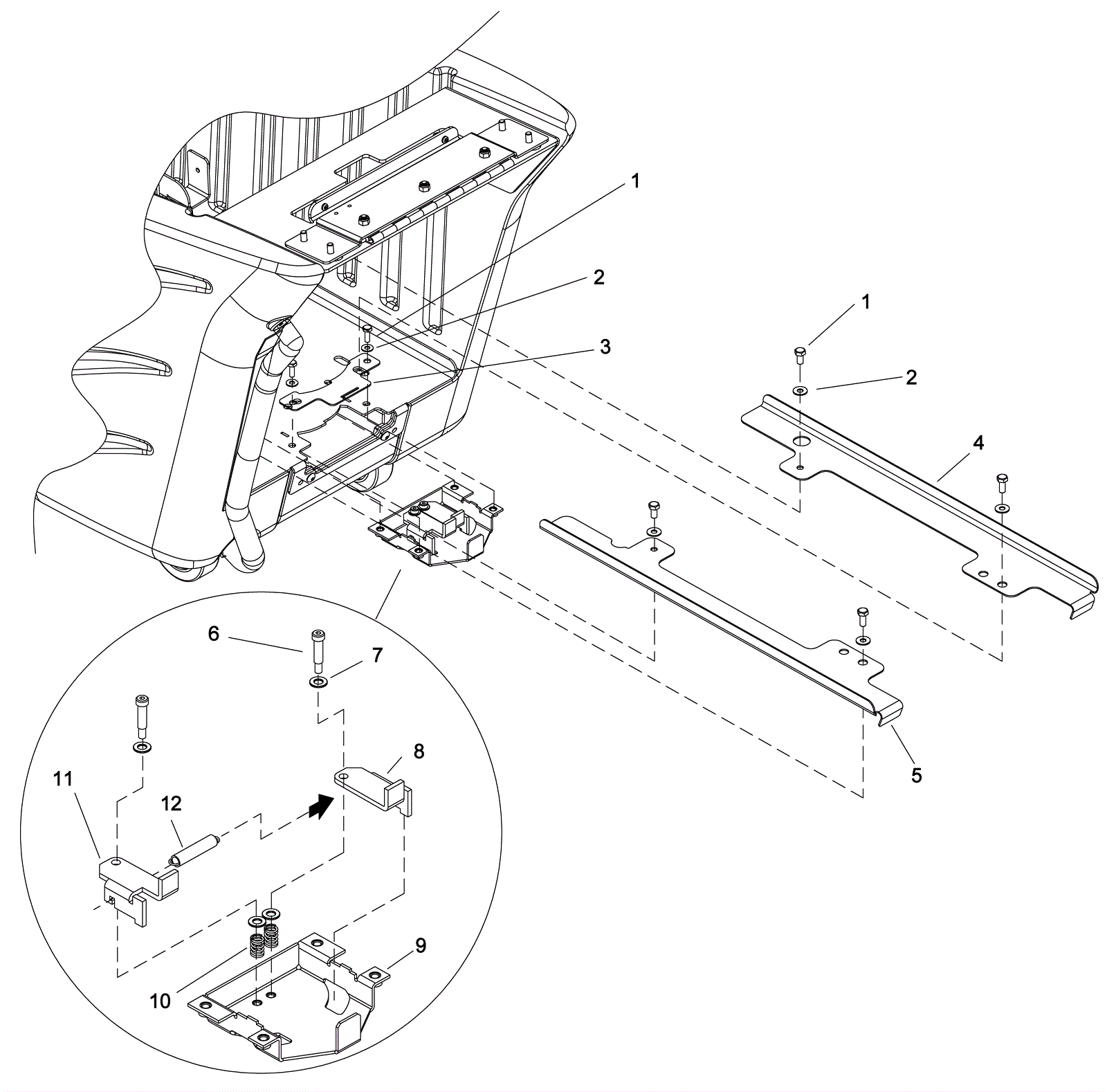

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
8 |
|
|
2 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
3 |
273-0228
|
Latch plate |
1 |
|
|
4 |
273-0229
|
Right hand battery tray guide |
1 |
|
|
5 |
273-0230
|
Left hand battery tray guide |
1 |
|
|
6 |
999-1056
|
Bolt 5/16-18 x 1 shoulder stainless steel |
2 |
|
|
7 |
273-0231
|
Thrust washer |
4 |
|
|
8 |
273-0232
|
Right hand stop latch |
1 |
|
|
9 |
273-0233
|
Latch cover |
1 |
|
|
10 |
273-0234
|
Compression spring |
2 |
|
|
11 |
273-0235
|
Left hand stop latch |
1 |
|
|
12 |
273-0236
|
Extension spring |
1 |
|
|
