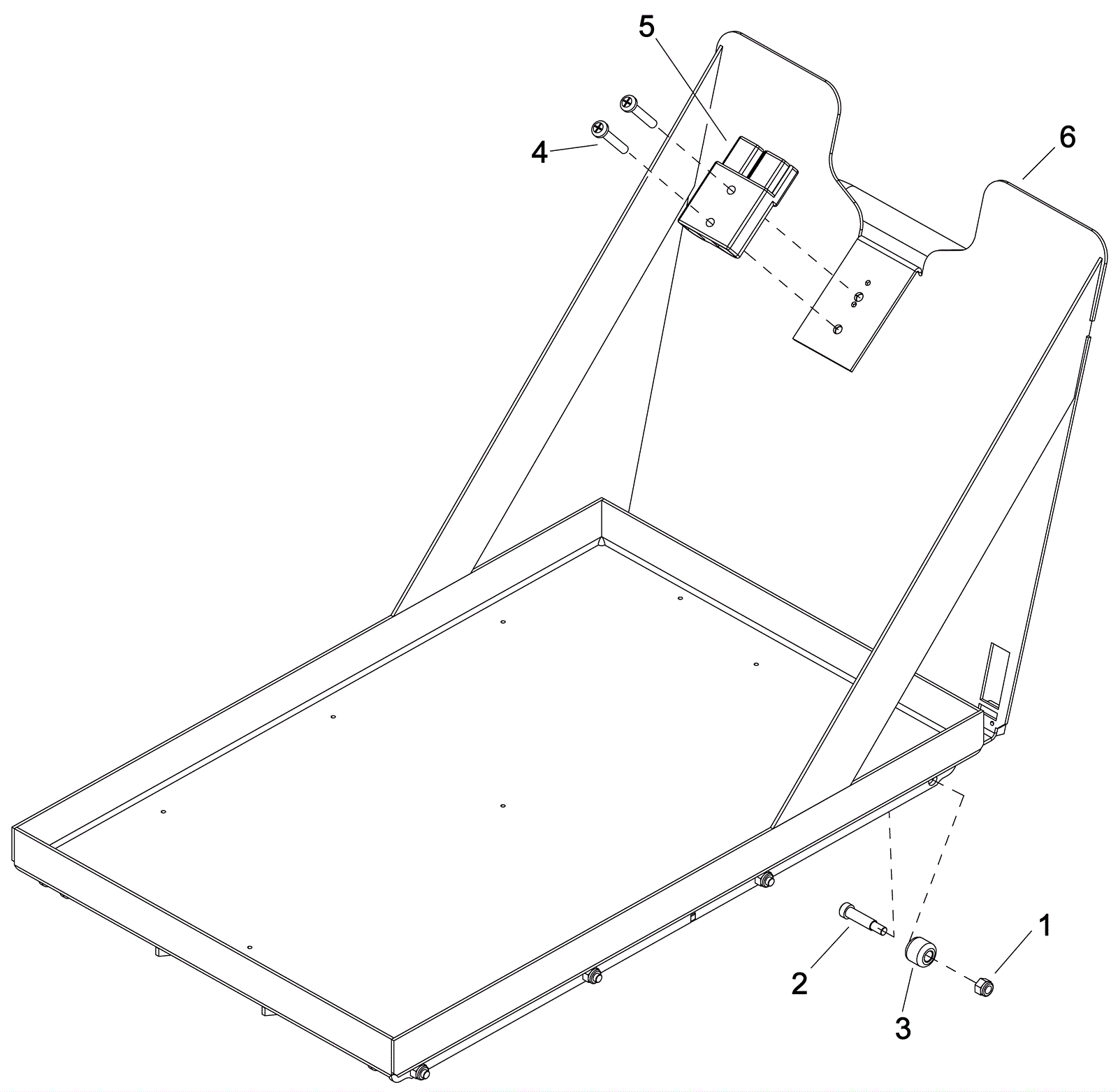

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
10 |
|
|
2 |
999-1056
|
Bolt 5/16-18 x 1 shoulder stainless steel |
8 |
|
|
3 |
173-5600
|
Battery tray wheel |
8 |
|
|
4 |
999-0398
|
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
2 |
|
|
5 |
991-2112
|
175amp charger plug with pins (gray) SB175 |
1 |
|
|
6 |
273-6870
|
Battery tray weldment |
1 |
|
|
