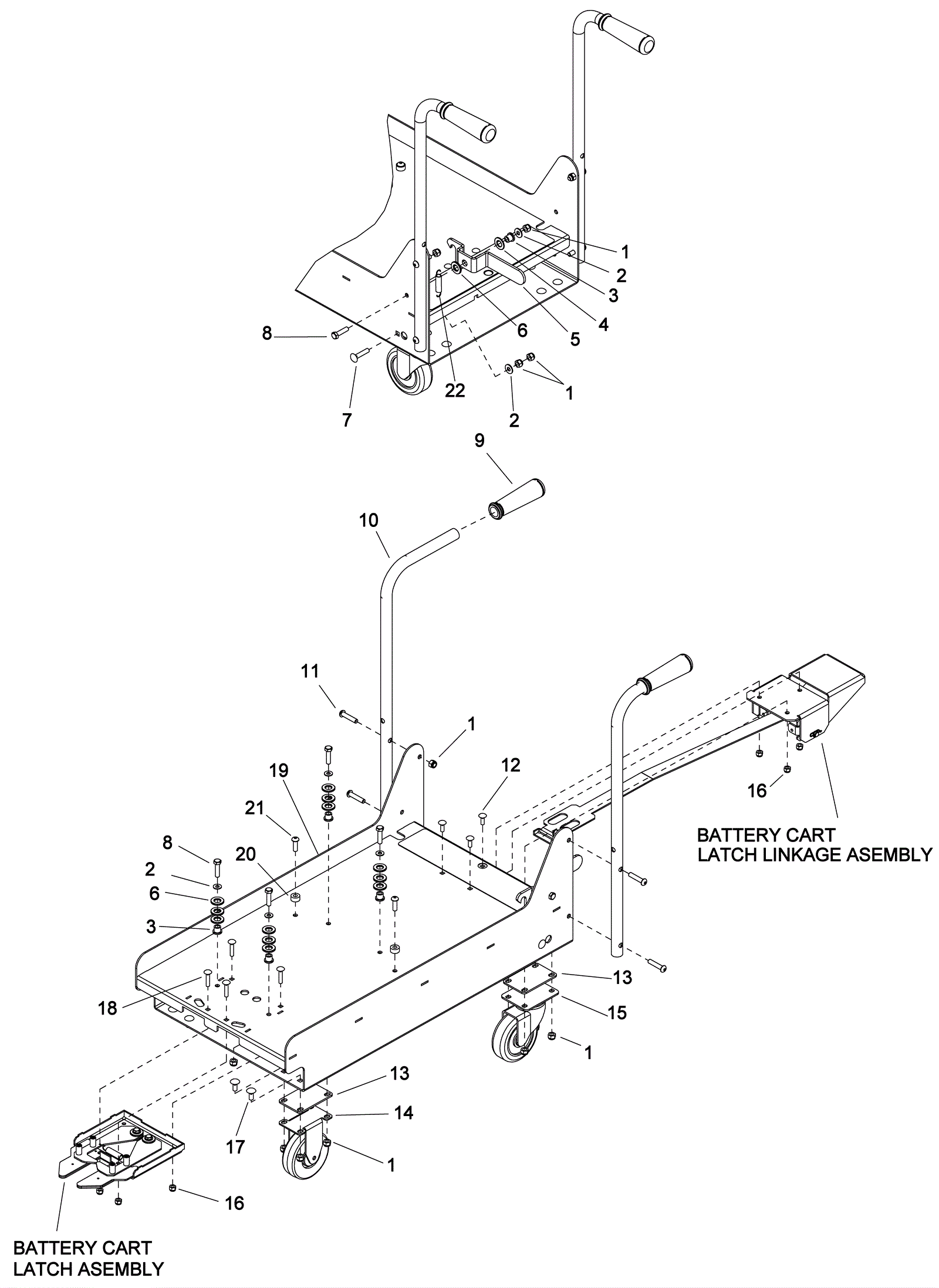

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
29 |
|
|
2 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
3 |
173-3116
|
Flanged bearing |
5 |
|
|
4 |
173-3964
|
Thrust washer |
1 |
|
|
5 |
173-5618
|
Bracket |
1 |
|
|
6 |
173-3963
|
Washer 1/2 thrust |
13 |
|
|
7 |
173-5464
|
Screw 5/16-18 x 1 1/2 carriage head stainless steel |
1 |
|
|
8 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
5 |
|
|
9 |
173-0371
|
Handle grip |
2 |
|
|
10 |
173-5620
|
Battery cart handle |
2 |
|
|
11 |
173-3967
|
Bolt 5/16-18 x 1 1/2 shoulder cap |
4 |
|
|
12 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
3 |
|
|
13 |
173-5621
|
Spacer plate |
4 |
|
|
14 |
173-5622
|
4 inch caster wheel |
2 |
|
|
15 |
173-0557
|
4 inch swivel caster wheel |
2 |
|
|
16 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
7 |
|
|
17 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
16 |
|
|
18 |
173-2580
|
Screw 1/4-20 x 1 1/4 carriage (OBSOLETE) |
4 |
|
|
19 |
273-6863
|
Battery cart housing |
1 |
|
|
20 |
173-5615
|
Spacer |
2 |
|
|
21 |
999-0225
|
Screw 5/16-18 x 1 button head socket plain finish |
2 |
|
|
22 |
173-1478
|
Extension spring |
1 |
|
|
