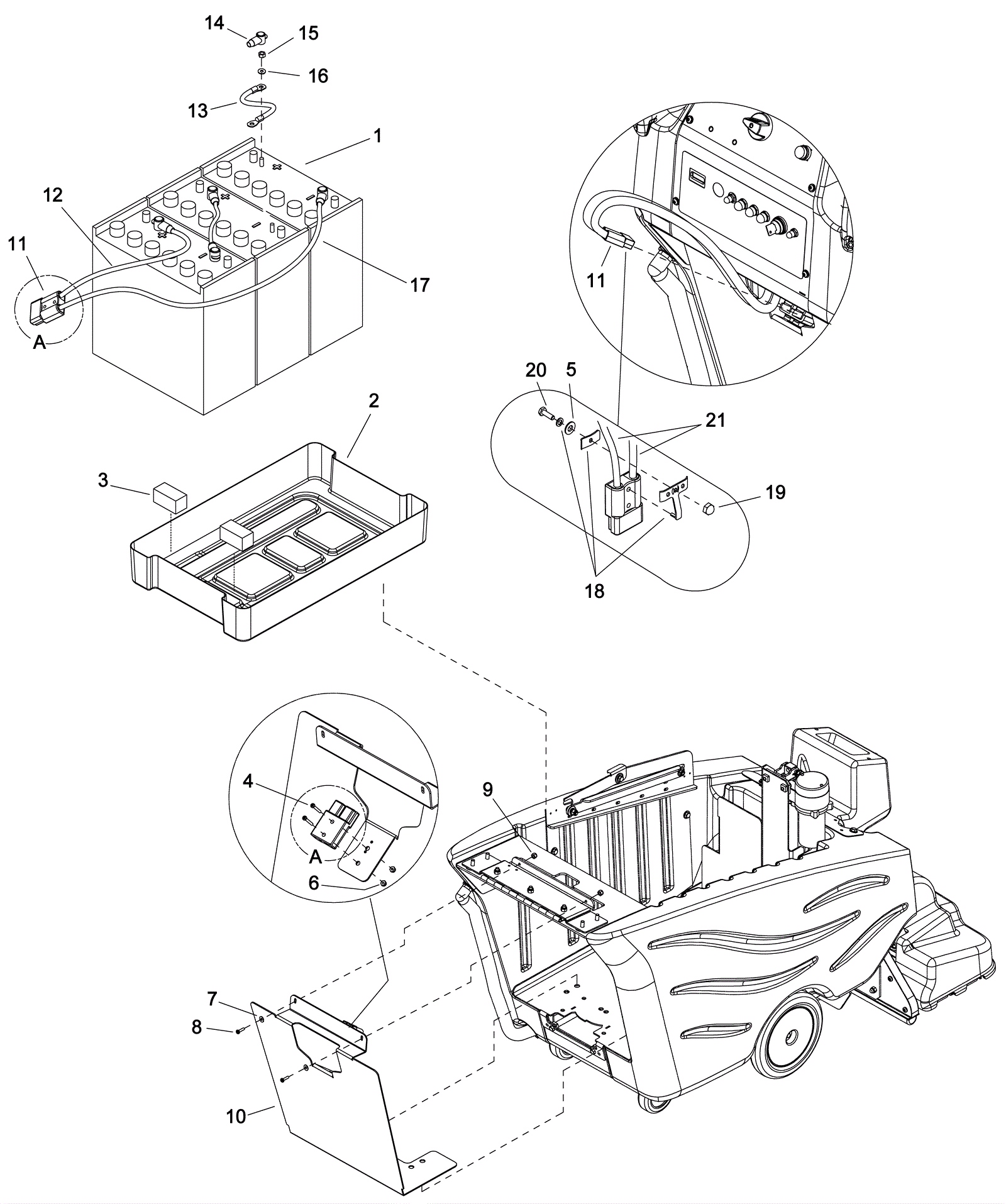

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
3 |
|
|
2 |
273-6859
|
Battery tray |
1 |
|
|
3 |
273-6860
|
Battery block |
2 |
|
|
4 |
999-0398
|
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
2 |
|
|
5 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
6 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
7 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
8 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
2 |
|
|
9 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
2 |
|
|
10 |
273-6861
|
Battery back plate |
1 |
|
|
11 |
991-2112
|
175amp charger plug with pins (gray) SB175 |
2 |
|
|
12 |
273-5992
|
Wire 4 x 25 inch ring style (red) |
1 |
|
|
13a |
273-5764
|
Ring style jumper cable (black) |
2 |
|
|
13b |
991-6025
|
Wire 4 x14.5, 3/8 ring x 3/8 ring |
2 |
(NON-OEM) |
|
14 |
173-3311
|
Insulated rubber terminal boot |
6 |
|
|
15 |
999-0895
|
Nut 5/16-18 flex type lock cadmium plated |
6 |
|
|
16 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
17 |
273-5993
|
Wire 4 x 30 inch ring style (black) |
1 |
|
|
18 |
273-0049
|
Cable clamp kit |
1 |
|
|
19 |
999-0961
|
Nut 10-32 acorn nickel plated |
1 |
|
|
20 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
|
21 |
173-3237
|
4 GA black wire 40 inch |
2 |
|
|
