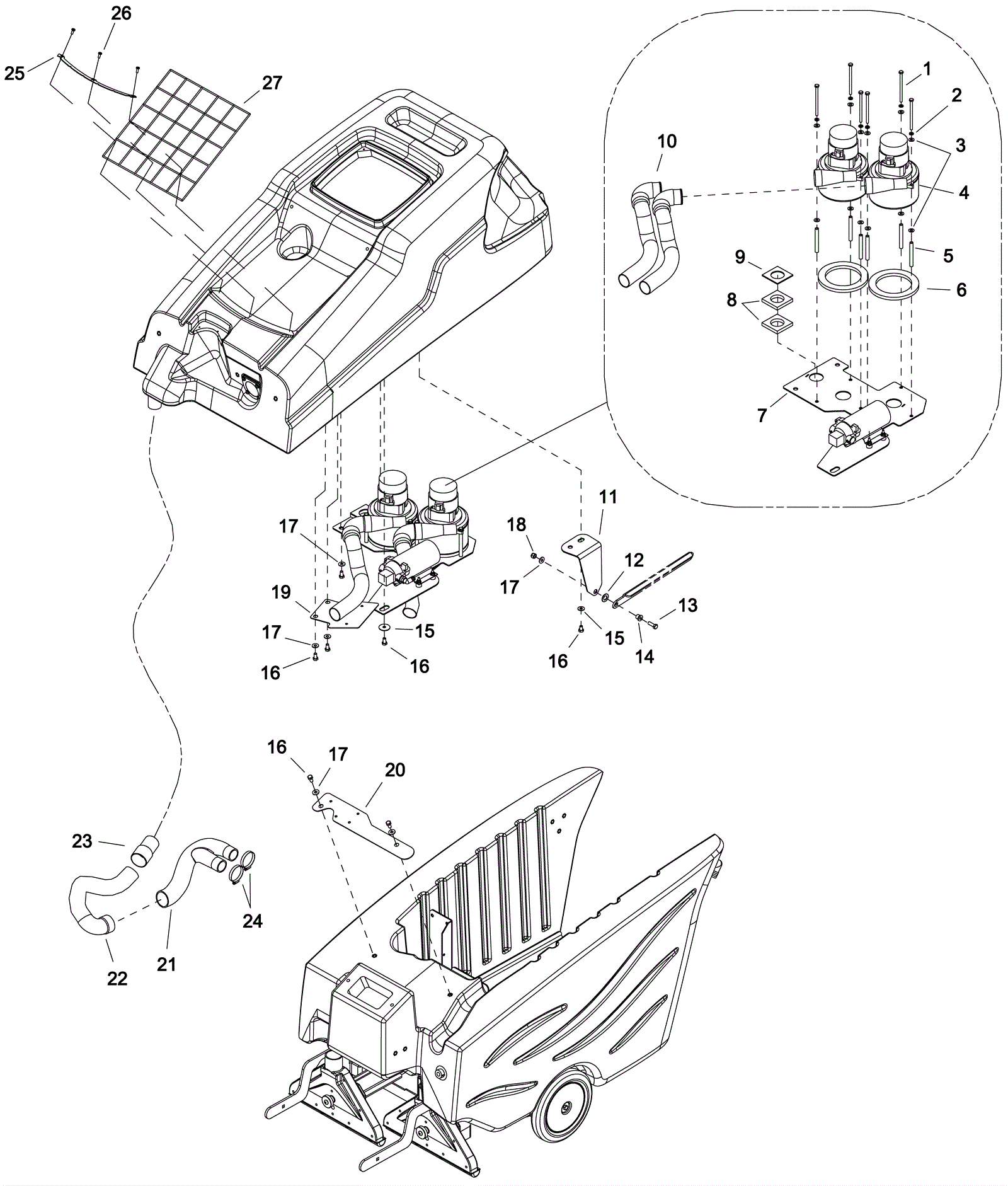

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
6 |
|
|
2 |
999-1049
|
Washer 1/4 split lock zinc plated |
6 |
|
|
3 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
12 |
|
|
4a |
173-0403
|
36V 3 stage vacuum motor |
2 |
(includes 4b) |
|
4b |
173-4105
|
Carbon brush |
2 |
|
|
4c |
991-1254
|
Carbon brush (set of 2) |
2 |
(NON-OEM) |
|
5 |
273-0251
|
Spacer |
6 |
|
|
6 |
173-5227
|
Vacuum motor gasket |
2 |
|
|
7 |
273-0250
|
Pump bracket |
1 |
|
|
8 |
273-0252
|
Vacuum plate gasket |
2 |
|
|
9 |
273-0253
|
Vacuum containment plate |
1 |
|
|
10 |
173-5335
|
Vacuum hose 1 1/2 x 14 inch |
2 |
|
|
11 |
273-0248
|
Pivot bracket |
1 |
|
|
12 |
173-3964
|
Thrust washer |
1 |
|
|
13 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
|
14 |
173-3116
|
Flanged bearing |
1 |
|
|
15 |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
2 |
|
|
16 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
7 |
|
|
17 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
7 |
|
|
18 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
19 |
273-0243
|
Vacuum exhaust bracket |
1 |
|
|
20 |
273-6858
|
Vacuum junction bracket |
1 |
|
|
21 |
273-0245
|
Coupler |
1 |
|
|
22 |
273-6839
|
Vacuum hose assembly black |
1 |
|
|
23 |
993-0014
|
CUFF, HOSE 1.5 inch BLK A 2161 |
1 |
|
|
24 |
189-0329
|
Hose clamp |
2 |
|
|
25 |
273-0247
|
Net bracket |
1 |
|
|
26 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
1 |
|
|
27 |
173-8237
|
Cargo net with hooks |
1 |
|
|
