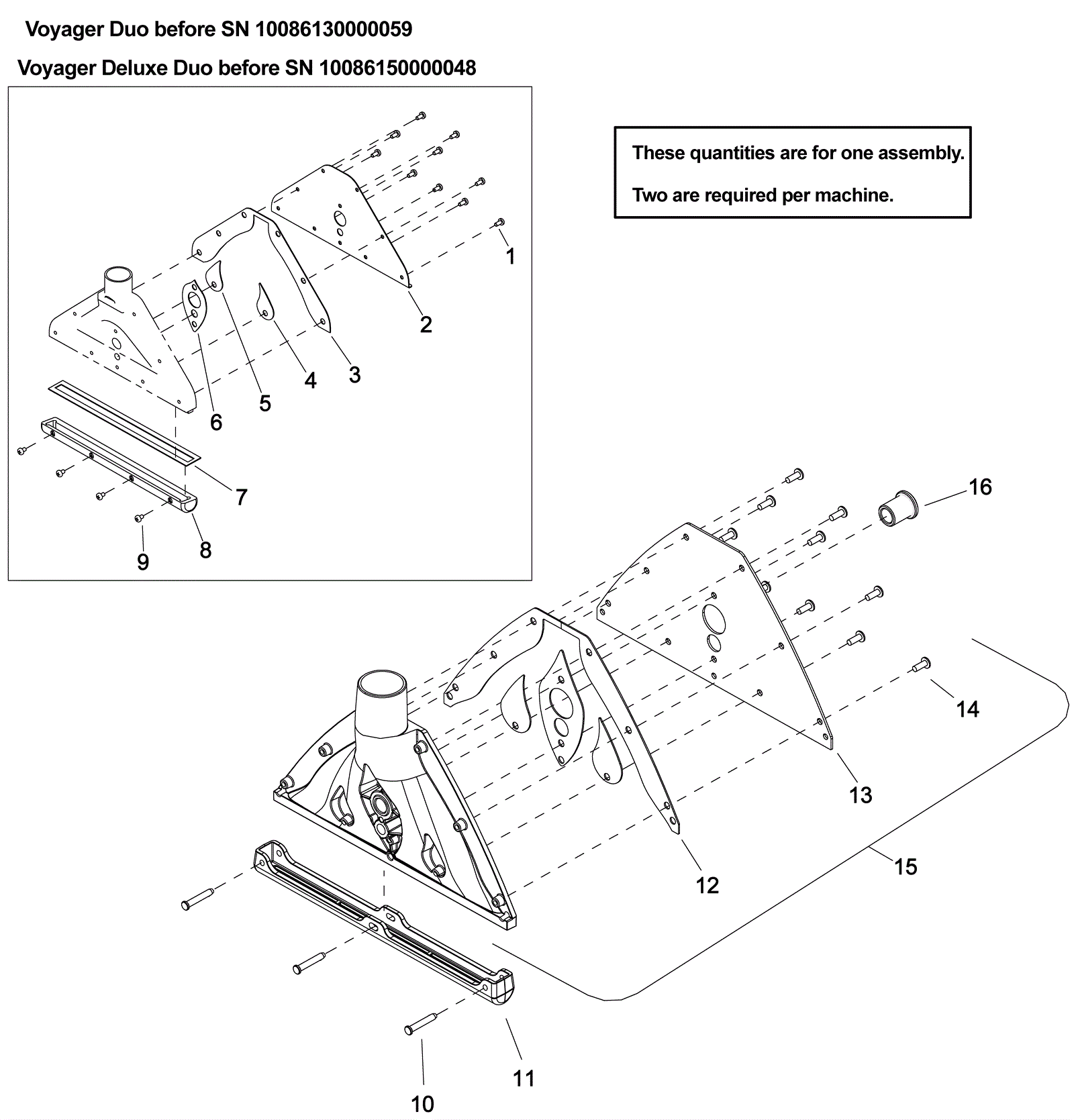

Vacuum Shoe Assembly

#PartDescription ReqNotesAvailability
1 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 10 (Voyager Duo before SN10086130000059) (Voyager Deluxe Duo before SN 10086150000048)
2 273-6253 Vacuum shoe cover (OBSOLETE) 1 (Voyager Duo before SN10086130000059) (Voyager Deluxe Duo before SN 10086150000048)
3 273-6254 Gasket 1 (Voyager Duo before SN10086130000059) (Voyager Deluxe Duo before SN 10086150000048)
4 273-6255 Gasket 1 (Voyager Duo before SN10086130000059) (Voyager Deluxe Duo before SN 10086150000048)
5 273-6256 Gasket 1 (Voyager Duo before SN10086130000059) (Voyager Deluxe Duo before SN 10086150000048)
6 273-5267 Gasket 1 (Voyager Duo before SN10086130000059) (Voyager Deluxe Duo before SN 10086150000048)
7 273-6258 Gasket 1 (Voyager Duo before SN10086130000059) (Voyager Deluxe Duo before SN 10086150000048)
8 173-6137 Vacuum shoe wiper 1 (Voyager Duo before SN10086130000059) (Voyager Deluxe Duo before SN 10086150000048)
9 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 4 (Voyager Duo before SN10086130000059) (Voyager Deluxe Duo before SN 10086150000048)
10 273-5736 Clevis pin 3 (Voyager Duo after SN 10086130000058) (Voyager Deluxe Duo after SN10086150000047)
11 273-6471 13 inch wiper with gasket (OBSOLETE) 1 (Voyager Duo after SN 10086130000058) (Voyager Deluxe Duo after SN10086150000047)
12 273-0224 Gasket assembly 1 (Voyager Duo after SN 10086130000058) (Voyager Deluxe Duo after SN10086150000047)
13 N/A Not available 1 (Voyager Duo after SN 10086130000058) (Voyager Deluxe Duo after SN10086150000047)
14 273-0225 Screw M6 x 16mm pan head stainless steel 10 (Voyager Duo after SN 10086130000058) (Voyager Deluxe Duo after SN10086150000047)
15 273-6268 13 inch vacuum shoe 1 (includes 12 - 14) (Voyager Duo after SN 10086130000058) (Voyager Deluxe Duo after SN10086150000047)
16 273-6529 Bronze bushing 1
