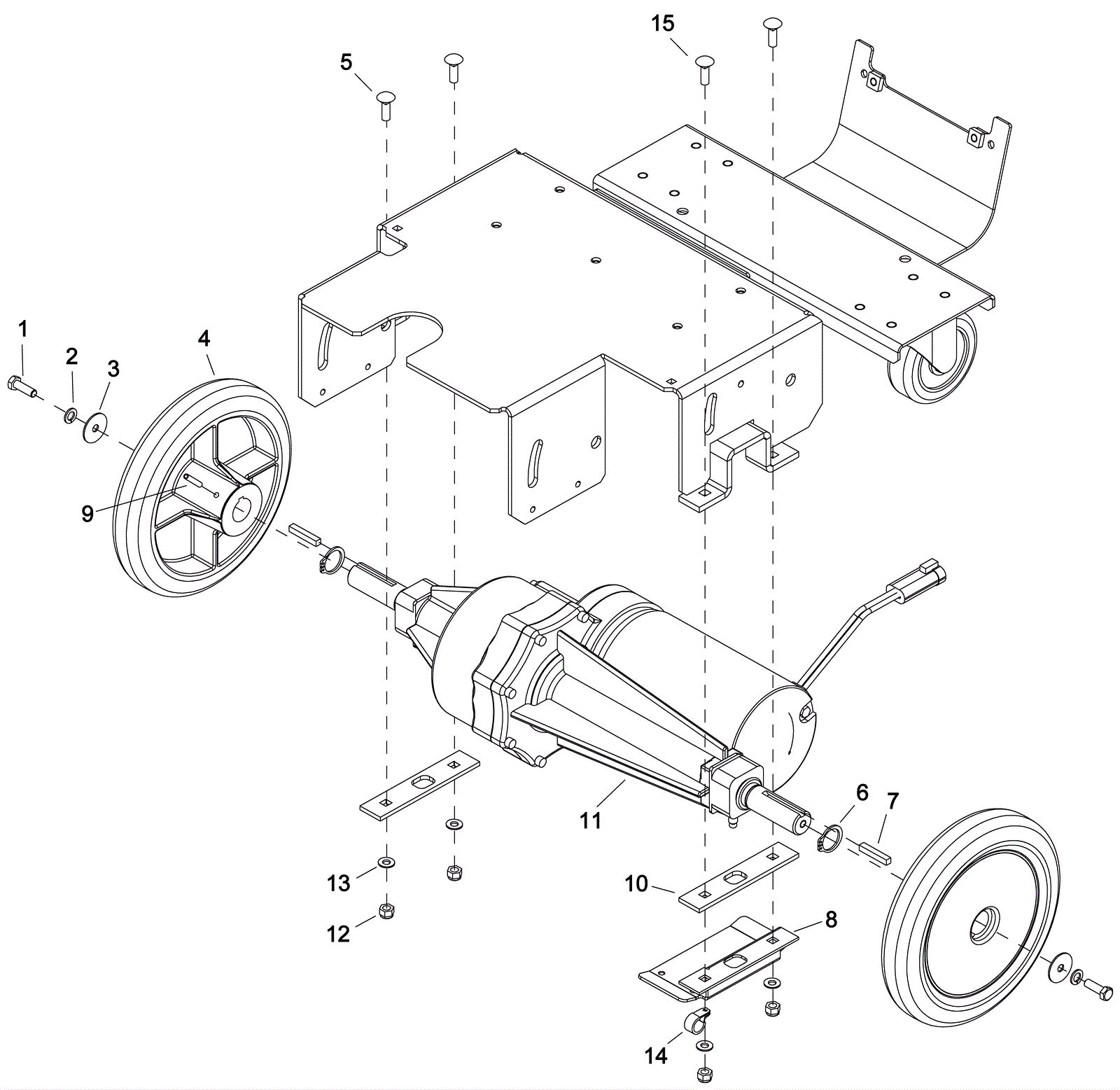

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
2 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
3 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
4 |
273-6851
|
Wheel |
2 |
|
|
5 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
3 |
|
|
6 |
173-1062
|
1.0 extension snap hd ring |
2 |
|
|
7 |
273-6852
|
Square keyway |
2 |
|
|
8 |
273-6853
|
Cable guard bracket |
1 |
|
|
9 |
173-4900
|
Screw 1/4-20 x 3/8 set (OBSOLETE) |
4 |
|
|
10 |
273-6854
|
Transaxle support plate |
2 |
|
|
11 |
273-6855
|
36V drive motor axle |
1 |
|
|
12 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
13 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
14 |
273-0216
|
Clamp |
1 |
|
|
15 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
1 |
|
|
