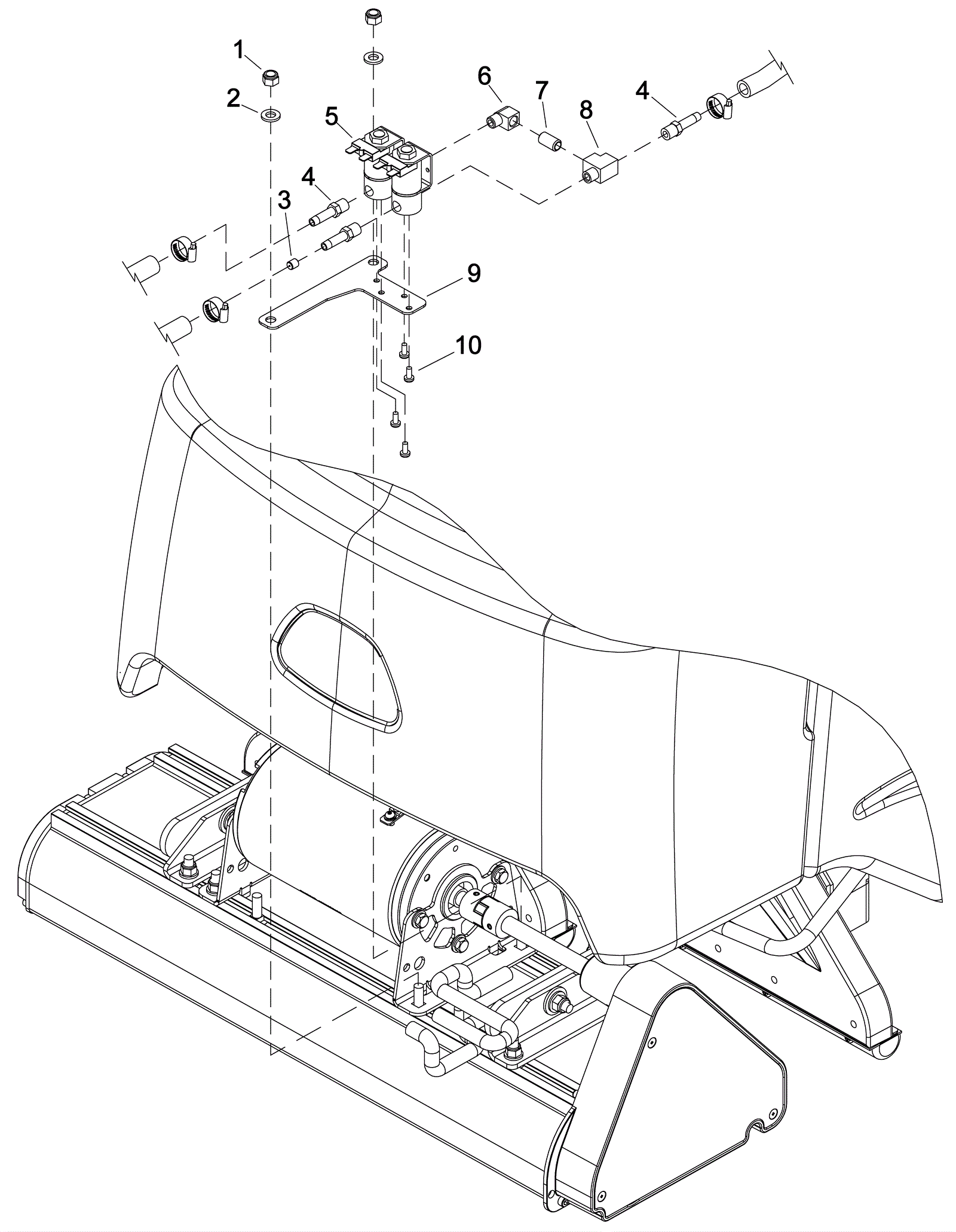

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
2 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
3 |
273-6515
|
Orfice |
1 |
|
|
4 |
173-4999
|
Hose barb 1/8 x 1/4 |
3 |
|
|
5 |
173-5414
|
Solenoid valve |
2 |
|
|
6 |
173-2223
|
90 degree elbow |
1 |
|
|
7 |
173-7032
|
1/8 close nipple |
1 |
|
|
8 |
273-5716
|
1/8 inch street run tee nickel plated thread |
1 |
|
|
9 |
273-0237
|
Valve bracket |
1 |
|
|
10 |
273-0187
|
Screw 8-32 x 5/16 stainless steel |
4 |
|
|
11 |
173-2741
|
Hose clamp |
3 |
|
|
