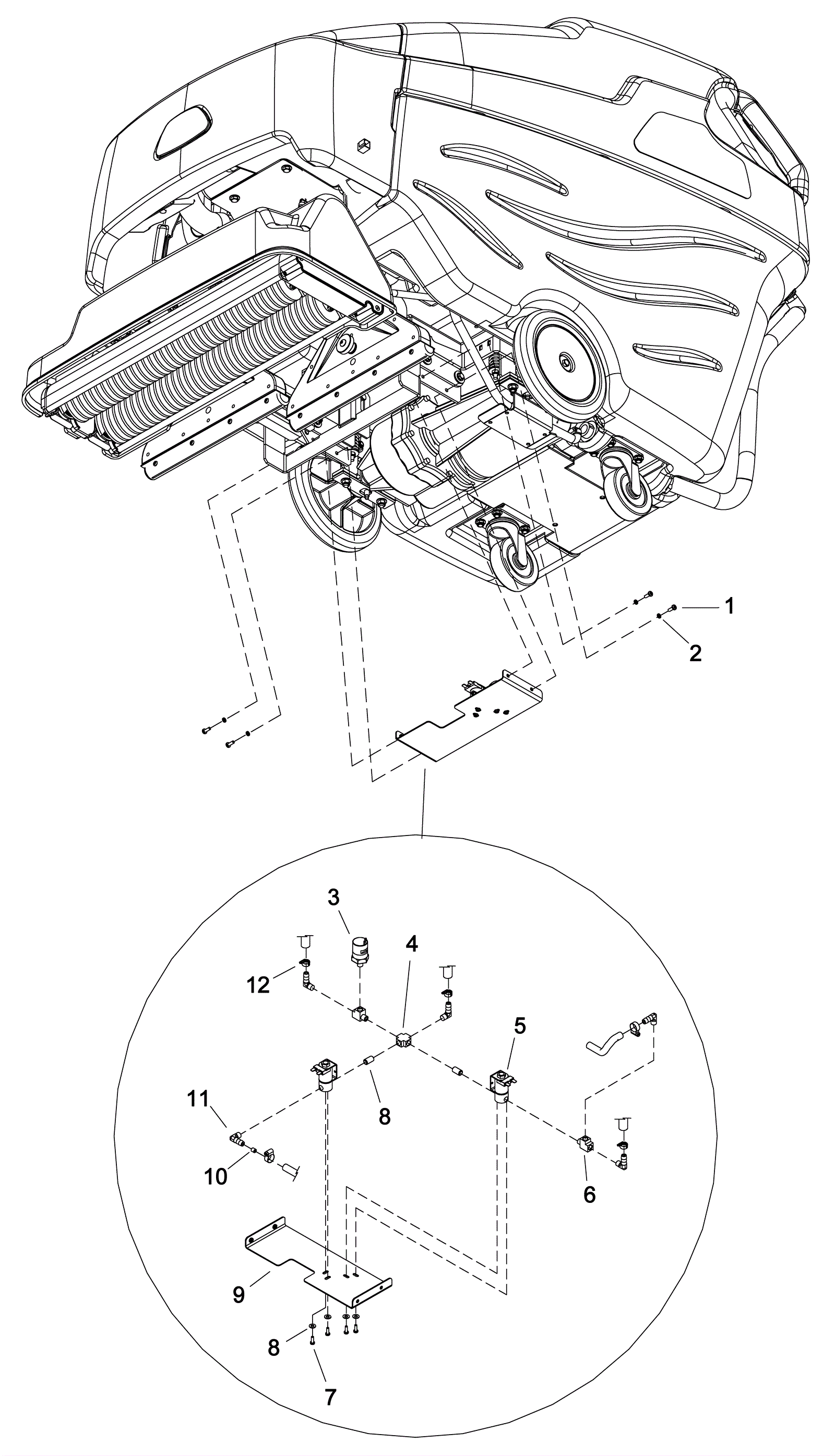

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
|
2 |
999-0998
|
Washer #10 flat stainless steel |
8 |
|
|
3 |
273-6846
|
Pressure switch |
1 |
|
|
4 |
273-0196
|
Cross |
1 |
|
|
5 |
173-5414
|
Solenoid valve |
2 |
|
|
6 |
273-5716
|
1/8 inch street run tee nickel plated thread |
2 |
|
|
7 |
273-0187
|
Screw 8-32 x 5/16 stainless steel |
4 |
|
|
8 |
173-7032
|
1/8 close nipple |
2 |
|
|
9 |
273-6847
|
Solution bypass bracket |
1 |
|
|
10 |
273-0198
|
Orifice |
1 |
|
|
11 |
273-5715
|
Hosebarb 1/8 x 1/4 inch |
5 |
|
|
12 |
173-2741
|
Hose clamp |
5 |
|
|
