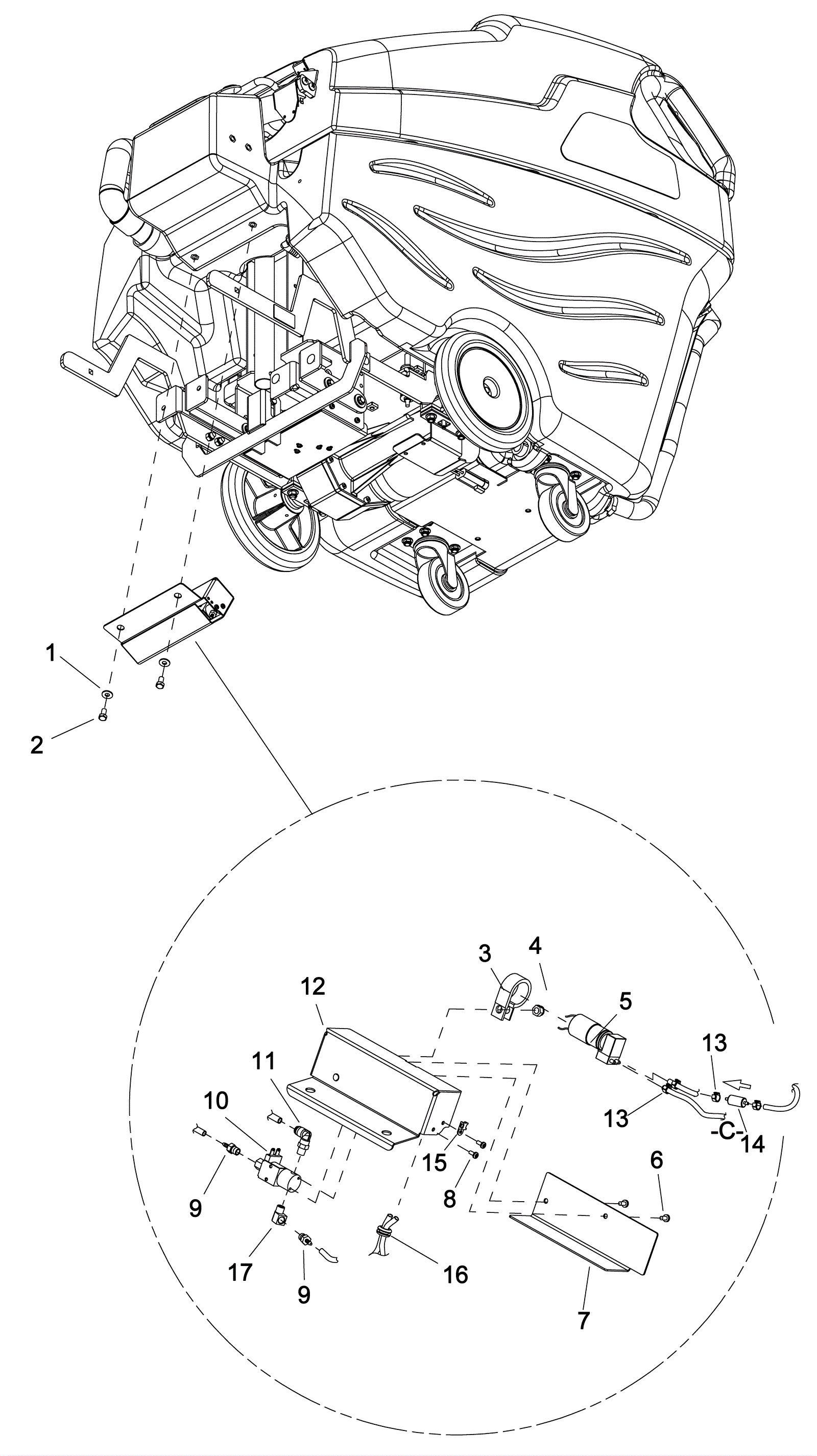

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
2 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
2 |
|
|
3 |
273-0184
|
P clamp |
1 |
|
|
4 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
5 |
273-6844
|
85 PSI chemical pump |
1 |
|
|
6 |
999-0896
|
Screw 10-32 x 3/8 round head phillips stainless steel |
2 |
|
|
7 |
273-0186
|
Cover bracket |
1 |
|
|
8 |
273-0187
|
Screw 8-32 x 5/16 stainless steel |
2 |
|
|
9 |
273-0188
|
Hosebarb 1/8 x 1/8 inch |
2 |
|
|
10 |
273-0189
|
3-way valve |
1 |
|
|
11 |
273-0190
|
Swivel elbow |
1 |
|
|
12 |
273-6845
|
Chemical pump bracket |
1 |
|
|
13 |
273-0192
|
Clamp |
4 |
|
|
14 |
273-0193
|
Hosebarb filter |
1 |
|
|
15 |
173-2281
|
Cable tie mount anchor |
1 |
|
|
16 |
273-0194
|
Elbow |
1 |
|
|
17 |
173-2223
|
90 degree elbow |
1 |
|
|
