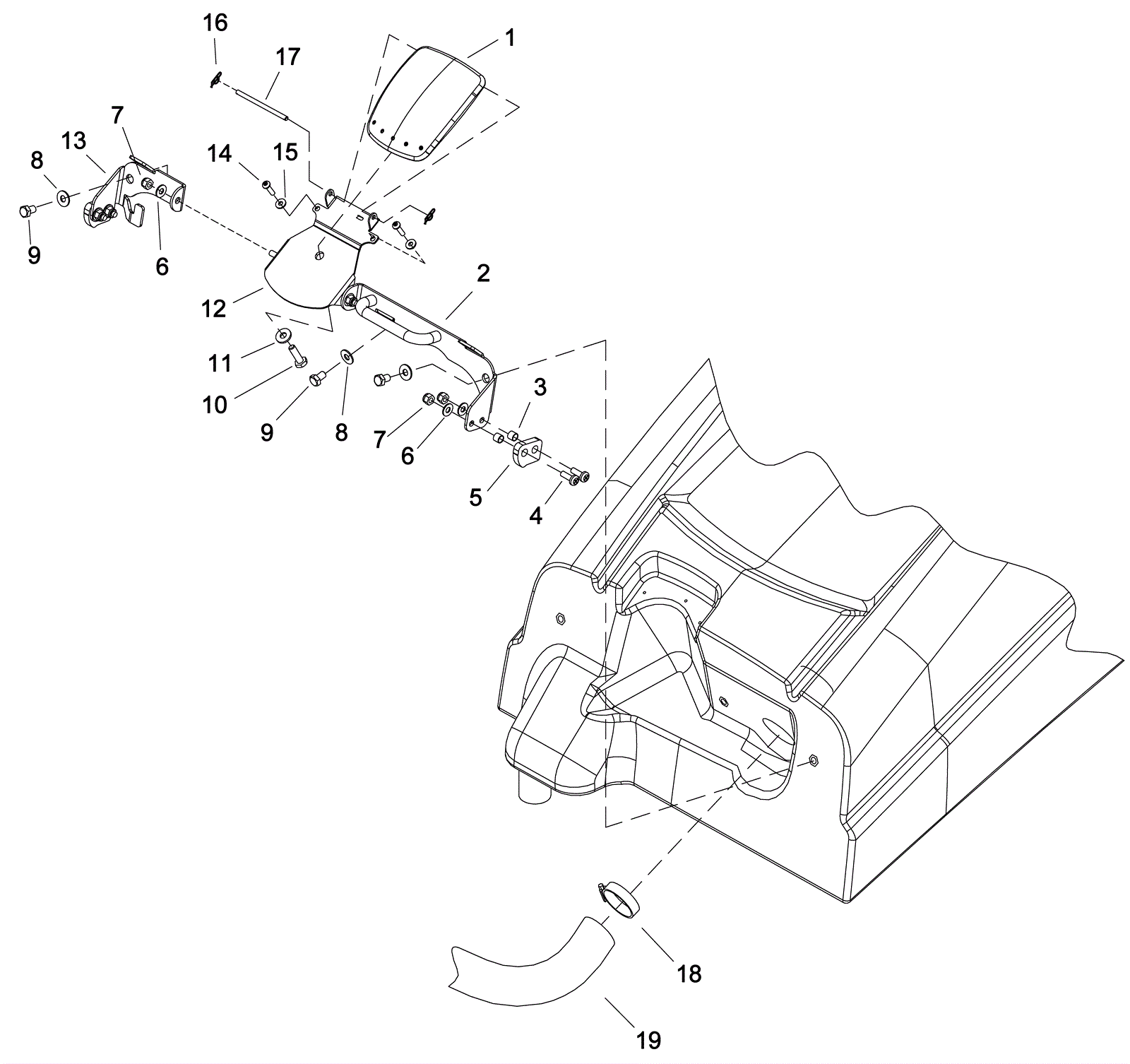

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-6319
|
Accessory port cover |
1 |
|
|
2 |
273-6837
|
Left front bracket assembly |
1 |
|
|
3 |
173-2117
|
Spacer |
4 |
|
|
4 |
999-9094
|
Screw 3/8-16 x 3 hex head stainless steel |
4 |
|
|
5 |
273-0260
|
Front cover latch |
2 |
|
|
6 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
7 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
|
8 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
9 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
3 |
|
|
10 |
273-0264
|
Screw M5 x 20mm hex head stainless steel |
1 |
|
|
11 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
12 |
273-0259
|
Cover bracket |
1 |
|
|
13 |
273-6838
|
Right front bracket assembly |
1 |
|
|
14 |
173-2807
|
Screw 10-32 x 3/4 pan head phillips hi-lo |
2 |
|
|
15 |
173-2808
|
Washer 7/32 x 1/2 stainless steel (black) |
2 |
|
|
16 |
173-1130
|
Cotter ring |
2 |
|
|
17 |
273-6322
|
Pin |
1 |
|
|
18 |
189-0329
|
Hose clamp |
1 |
|
|
19 |
173-1691
|
Wire bound hose 1/2 x 5 inch |
1 |
|
|
