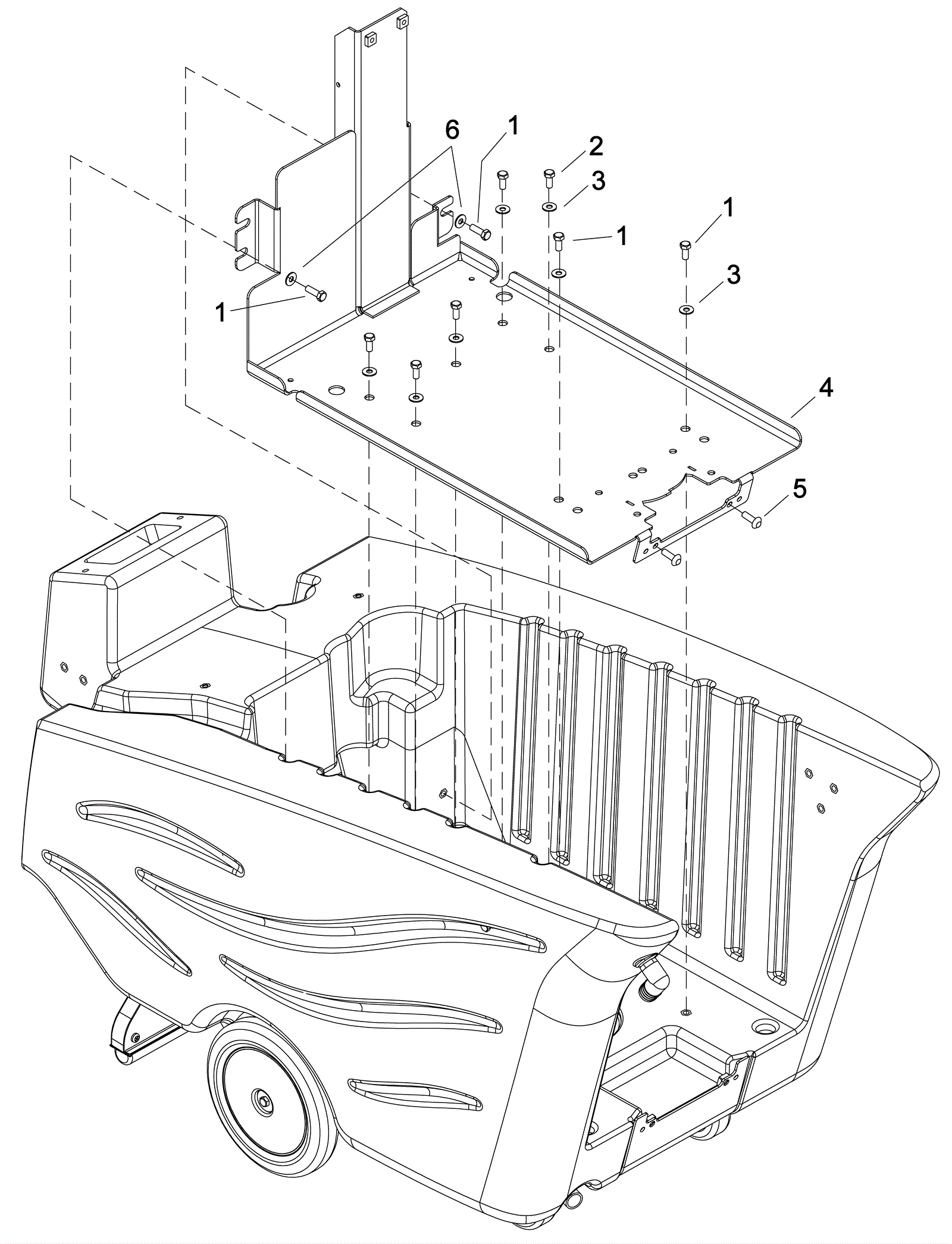

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
4 |
|
|
2 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
5 |
|
|
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
7 |
|
|
4 |
273-0166
|
Main frame weldment |
1 |
|
|
5 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
2 |
|
|
6 |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
2 |
|
|
