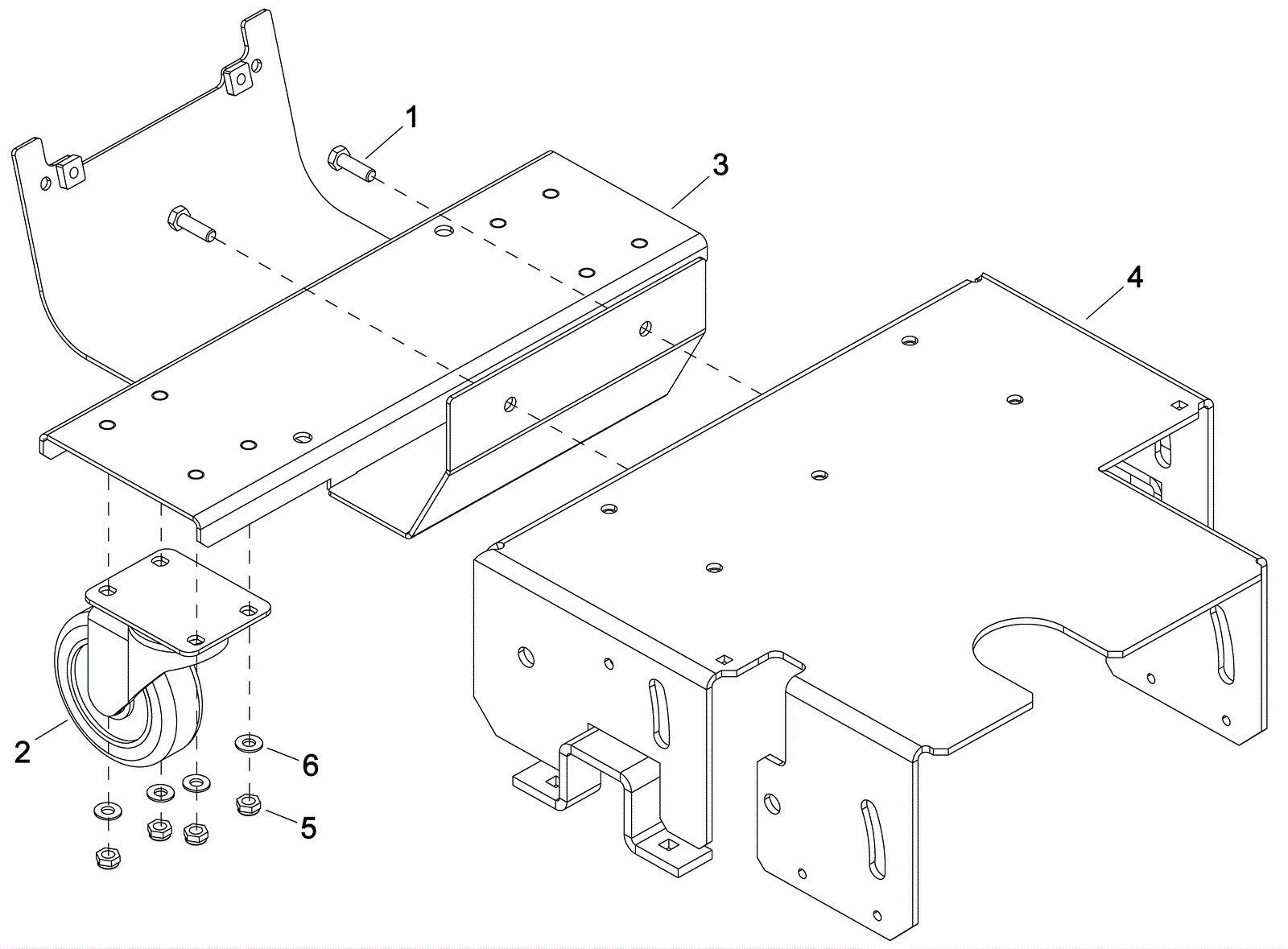

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
2 |
273-0165
|
4 inch swivel caster |
2 |
|
|
3 |
273-6832
|
Caster mount frame bracket |
1 |
|
|
4 |
273-6833
|
Transaxle mounting frame |
1 |
|
|
5 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
6 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
