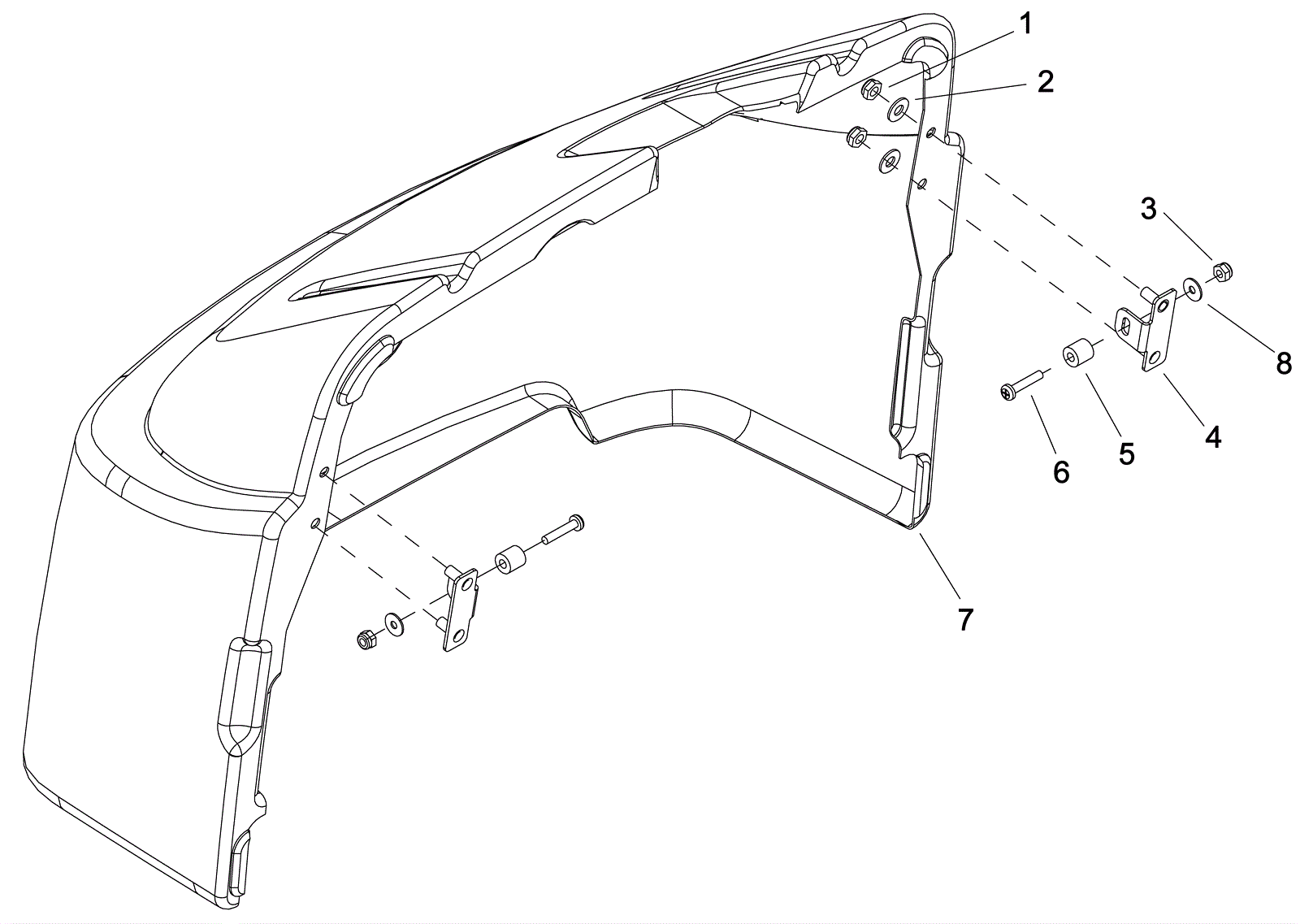

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
|
2 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
3 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
2 |
|
|
4 |
273-0155
|
Front latch bracket |
2 |
|
|
5 |
173-9739
|
Nylon spacer |
2 |
|
|
7 |
273-6827
|
Front cover |
1 |
|
|
8 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
