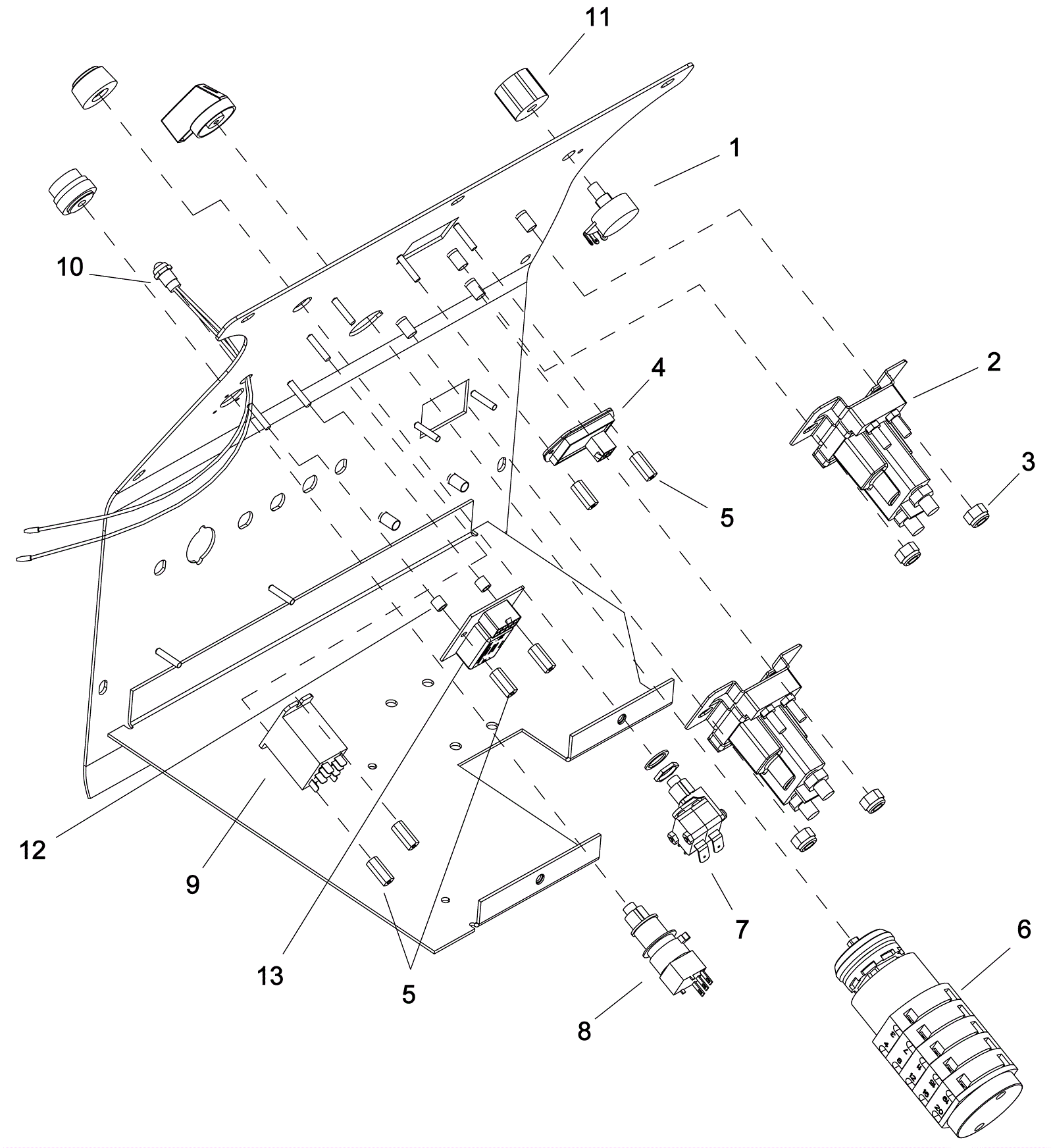

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-1799
|
Potentiometer |
1 |
|
|
2 |
173-1872
|
100amp relay |
2 |
|
|
3 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
4 |
273-5772
|
36V battery meter |
1 |
|
|
5 |
173-1520
|
Nylon standoff |
6 |
|
|
6 |
173-5430
|
Rotary switch 4 position |
1 |
|
|
7 |
273-0254
|
Push switch assembly (white) (OBSOLETE) |
1 |
|
|
8 |
173-5413
|
Button switch |
1 |
|
|
9 |
273-0032
|
Relay |
1 |
|
|
10 |
273-0255
|
Light assembly |
1 |
|
|
11 |
173-8240
|
Knob |
1 |
|
|
12 |
273-0257
|
Spacer |
2 |
|
|
13 |
273-0256
|
DC converter assembly |
|
|
|
