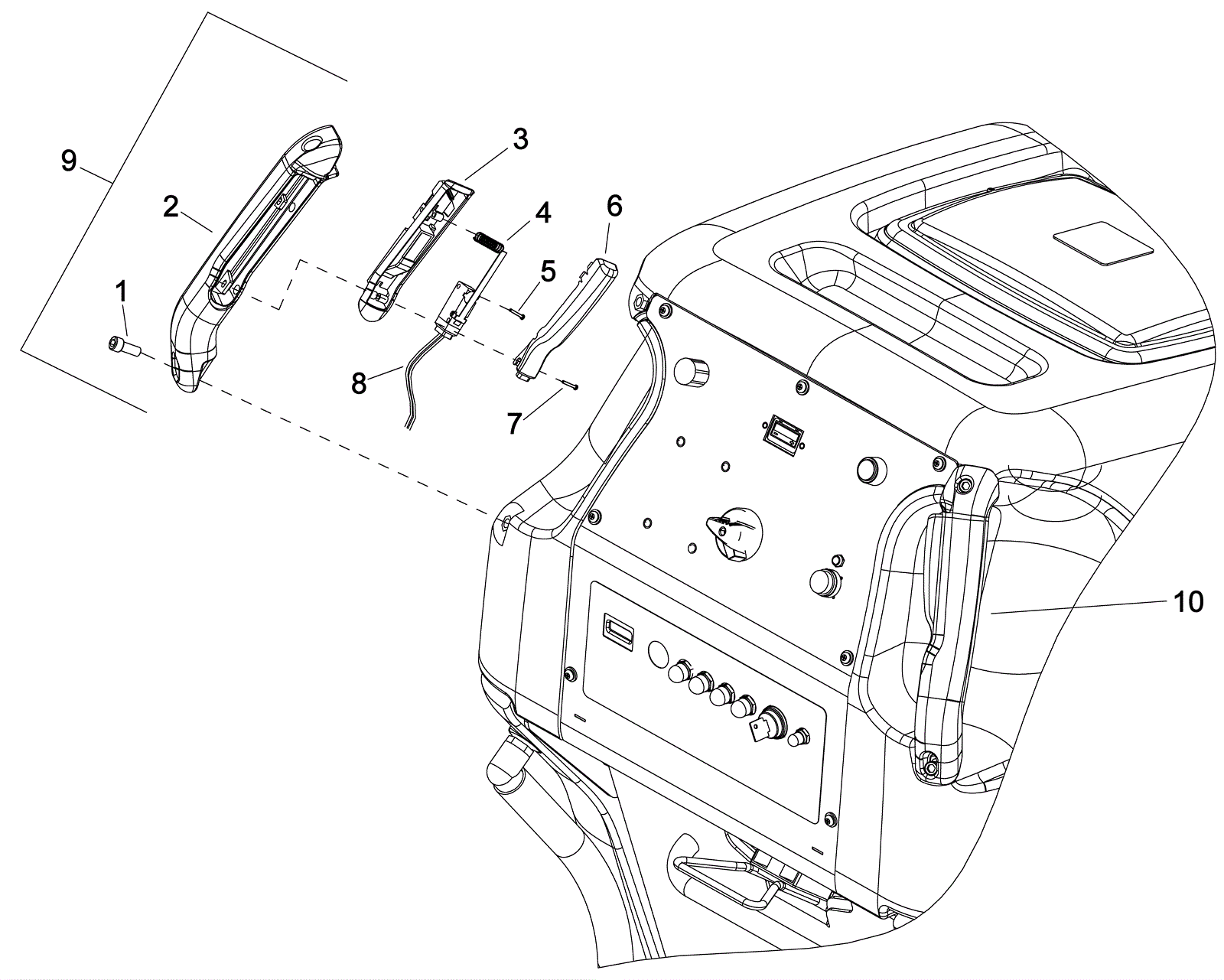

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0130
|
Screw 5/16-18 x 3/4 socket head alloy plain finish |
4 |
|
|
2a |
173-8225
|
Left hand handle |
1 |
|
|
2b |
173-8230
|
Right hand handle |
1 |
|
|
3 |
273-0152
|
Button housing |
2 |
|
|
4 |
173-8227
|
Compression spring |
2 |
|
|
5 |
273-0153
|
Screw 4-40 x 5/8 |
2 |
|
|
6 |
173-8228
|
Propel button |
2 |
|
|
7 |
999-0080
|
Screw 8-32 x 7/8 round head slotted zinc plated |
4 |
|
|
8 |
173-8226
|
Momentary switch with lever |
2 |
|
|
9 |
173-4064
|
Left hand propel handle assembly |
|
(includes 1-8) |
|
10 |
173-4065
|
Right hand propel handle assembly |
|
(includes 1-8) |
|
