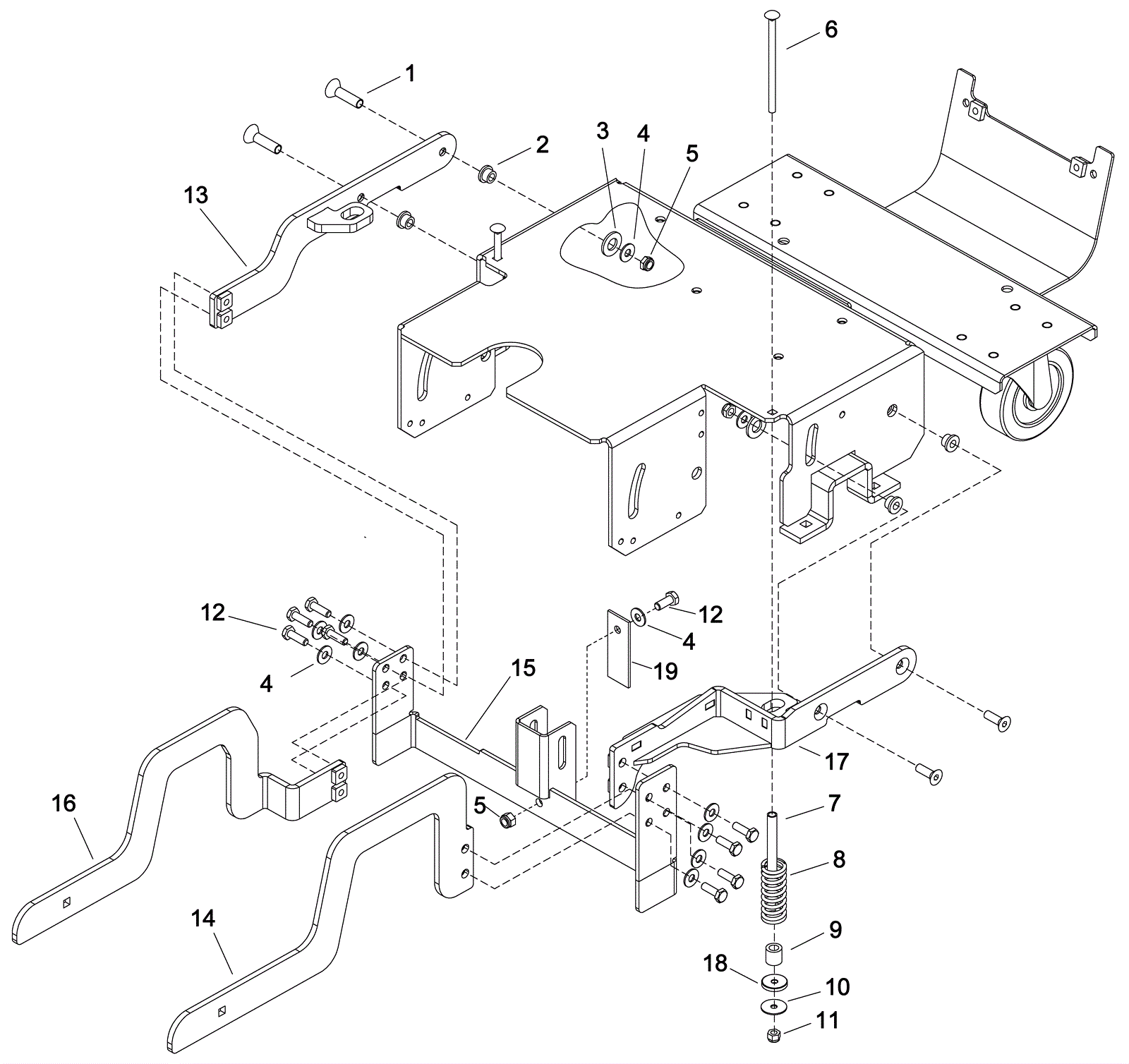

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-0145
|
Screw 5/16-8 x 1 stainless steel |
4 |
|
|
2 |
273-5628
|
Flanged bearing |
4 |
|
|
3 |
173-2815
|
Washer 33/64 x 1 thrust |
4 |
|
|
4 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
13 |
|
|
5 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
6 |
273-0143
|
Screw 1/4-20 x 4 1/2 carriage stainless steel |
2 |
|
|
7 |
273-0151
|
Counterbalance support |
4 |
|
|
8 |
273-6820
|
Compression spring |
2 |
|
|
9 |
173-0505
|
Bushing |
2 |
|
|
10 |
999-6684
|
Washer 1/4 flat stainless steel |
2 |
|
|
11 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
12 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
9 |
|
|
13 |
273-6821
|
Right rear lift arm assembly |
1 |
|
|
14 |
273-6822
|
Left front lift arm |
1 |
|
|
15 |
273-6823
|
Actuator lift bracket |
1 |
|
|
16 |
273-6824
|
Right front lift arm |
1 |
|
|
17 |
273-6825
|
Left rear lift arm assembly |
1 |
|
|
18 |
173-3963
|
Washer 1/2 thrust |
1 |
|
|
19 |
173-5517
|
Static strap |
1 |
|
|
