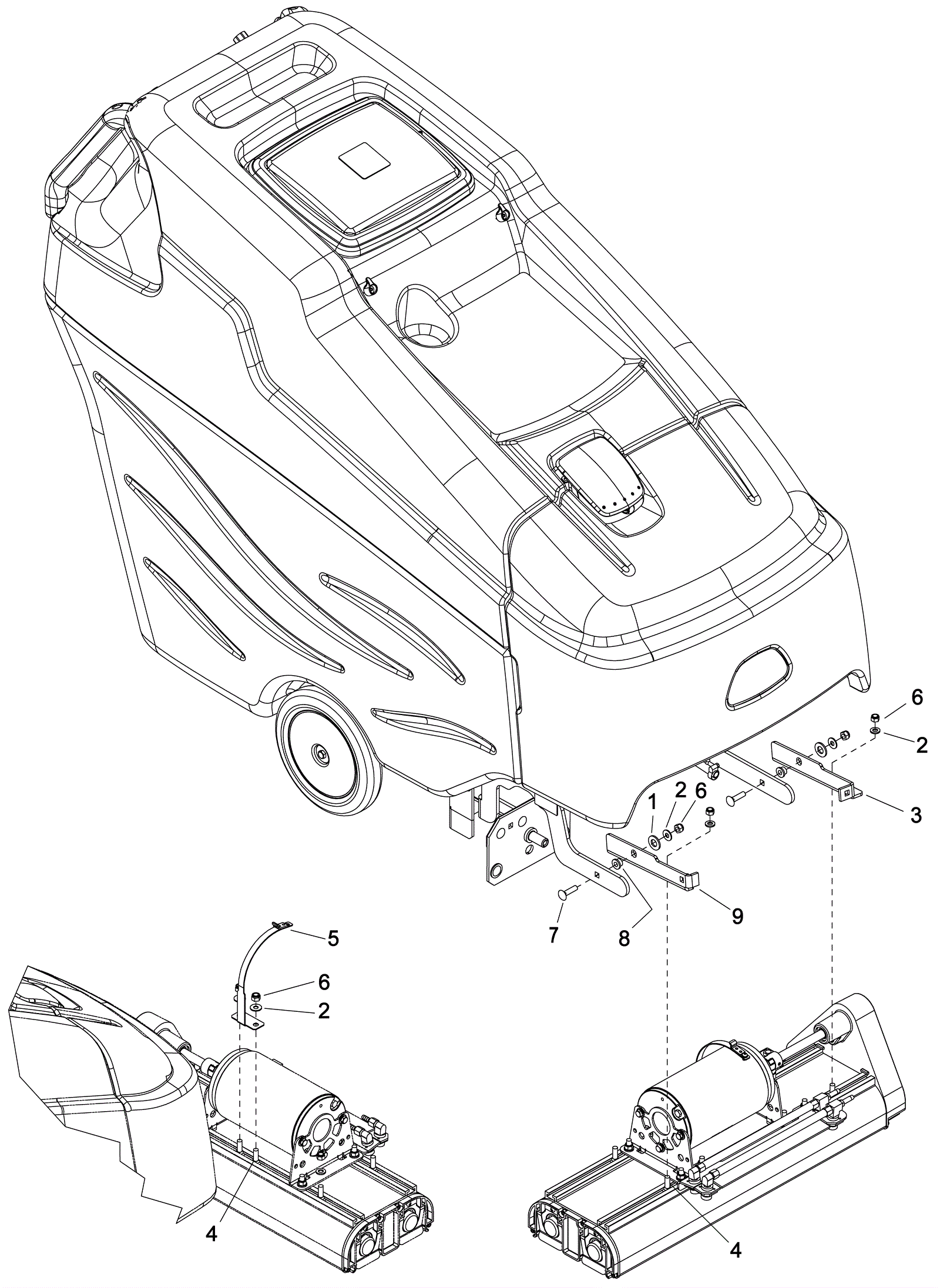

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-2815
|
Washer 33/64 x 1 thrust |
2 |
|
|
2 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
3 |
273-6817
|
Left pivot bracket |
1 |
|
|
4 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
6 |
|
|
5 |
273-6280
|
Latch strap |
1 |
|
|
6 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
7 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
2 |
|
|
8 |
273-5628
|
Flanged bearing |
2 |
|
|
9 |
273-6818
|
Right pivot bracket |
1 |
|
|
