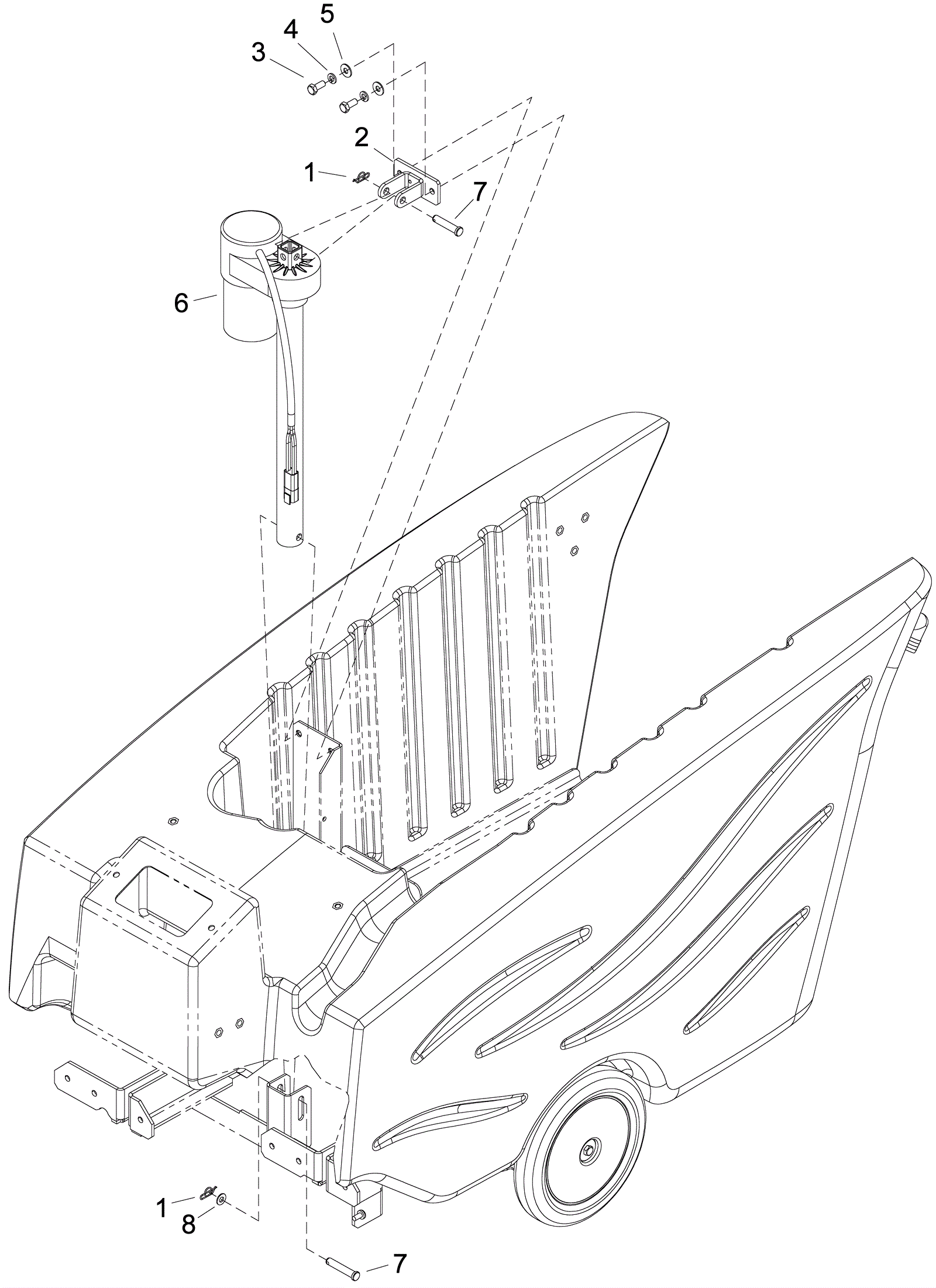

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-1593
|
Cotter ring (OBSOLETE) |
2 |
|
|
2 |
273-6277
|
Actuator mounting bracket |
1 |
|
|
3 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
4 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
5 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
6 |
273-6278
|
Actuator |
1 |
|
|
7 |
173-1595
|
Clevis pin |
2 |
|
|
8 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
