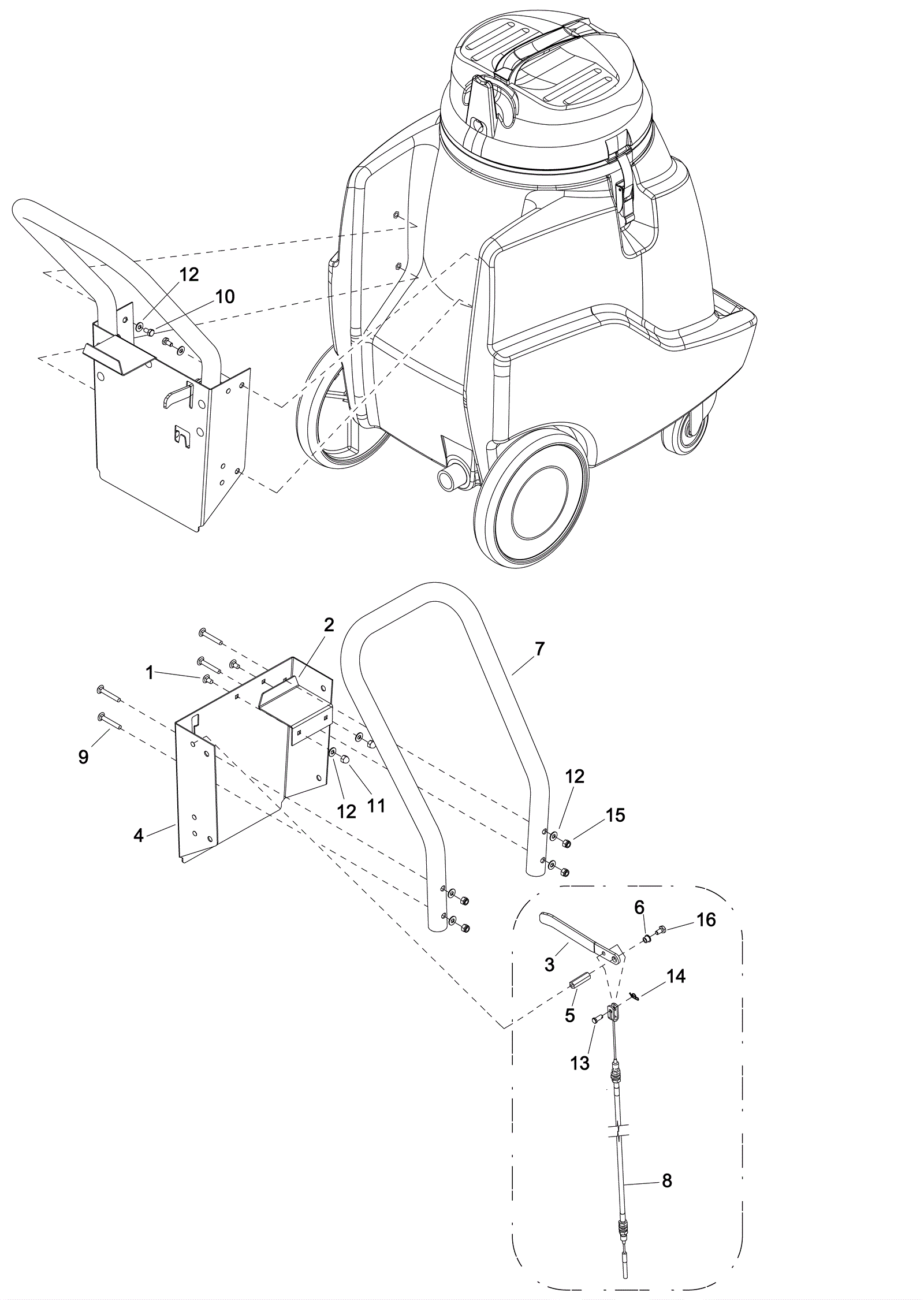

Handle Assembly

#PartDescription ReqNotesAvailability
1 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel 2
2 273-6792 Sign holder plate 1
3 273-6793 Squeegee lift handle 1 (squeegee models)
4 273-6794 Back panel plate 1
5 273-6795 Standoff 1 (squeegee models)
6 273-6796 Flanged bearing 1 (squeegee models)
7 273-6797 Vacuum handle 1
8 273-6798 Squeegee lift cable 1 (squeegee models)
9 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 4
10 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 4
11 999-1344 Nut 1/4-20 acorn stainless steel 2
12a 999-0123 Washer 1/4 SAE flat zinc plated 12 (squeegee models)
12b 999-0123 Washer 1/4 SAE flat zinc plated 10 (model 1.013-019.0)
13 173-3153 Clevis pin 1 (squeegee models)
14 173-1130 Cotter ring 1 (squeegee models)
15a 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6 (squeegee models)
15b 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4 (model 1.013-019.0)
16 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 1 (squeegee models)
