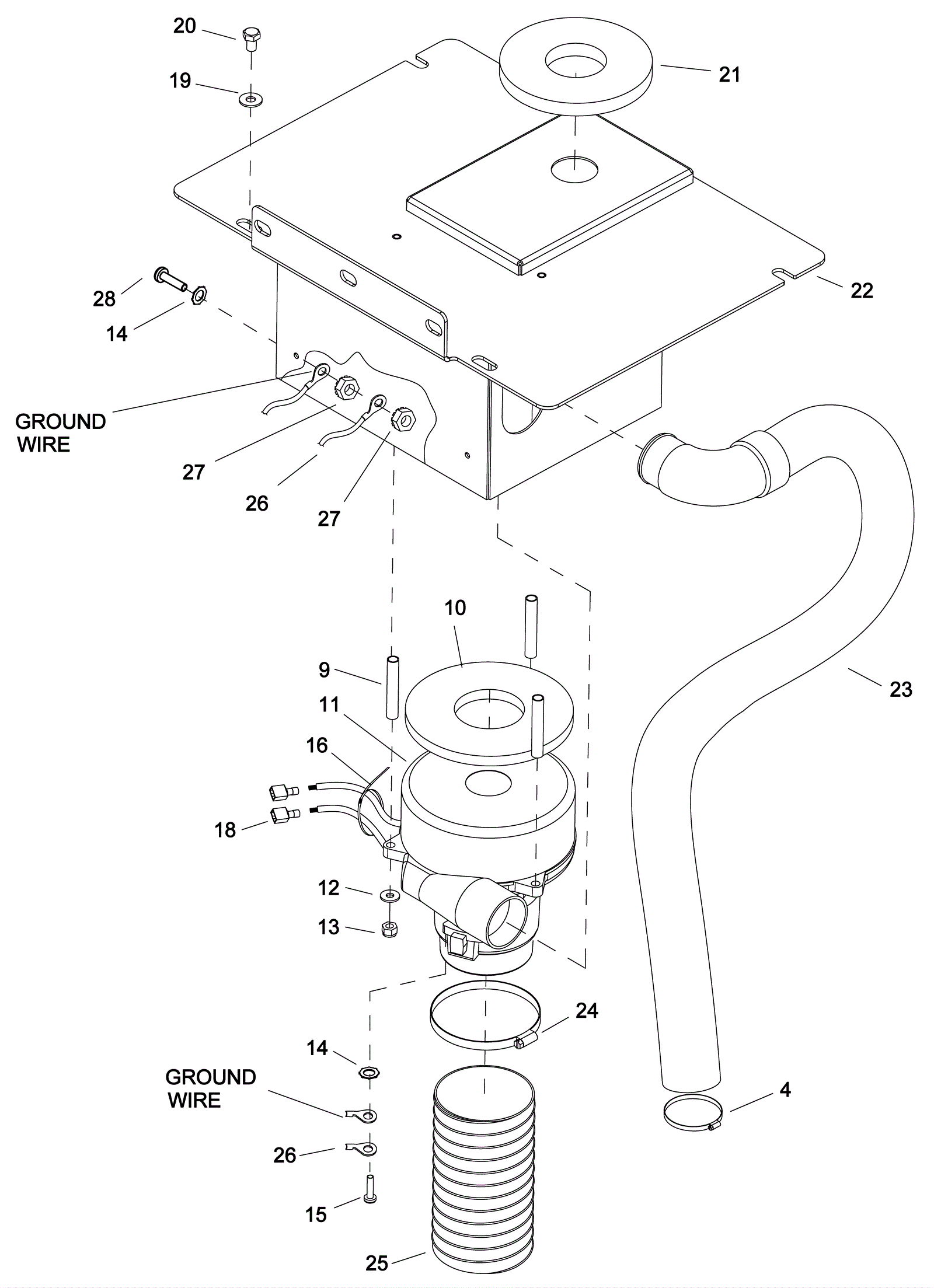

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-4413
|
Gasket |
2 |
|
|
2 |
173-4414
|
Vacuum motor cover |
1 |
|
|
3 |
173-4415
|
Gasket |
1 |
|
|
4 |
997-2000
|
Hose clamp |
1 |
|
|
5 |
173-9158
|
Vac exhaust hose 9 inch |
1 |
|
|
6 |
173-4419
|
Vacuum mounting plate |
1 |
|
|
7 |
173-2320
|
Vacuum hose 1 1/2 x 24 inch (black) |
1 |
|
|
8 |
999-0912
|
Bolt 1/4-20 x 3 1/2 18-8 hex head stainless steel |
3 |
|
|
9 |
173-5696
|
Spacer |
3 |
|
|
10 |
173-5227
|
Vacuum motor gasket |
1 |
|
|
11a |
273-7643
|
120V vacuum motor |
1 |
|
|
11b |
991-9278
|
120V 2 stage vacuum motor dual ball tangential |
1 |
|
|
11c |
273-4028
|
Carbon brush set (OBSOLETE) |
4 |
|
|
11d |
173-8820
|
Vacuum motor 115V with terminal |
1 |
|
|
12 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
|
|
13 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
14 |
999-0311
|
Washer #10 external star lock zinc plated |
2 |
|
|
15 |
999-1212
|
Screw 10-32 x 1/2 hex head stainless steel |
1 |
|
|
16 |
173-0822
|
Wire tie |
1 |
|
|
17 |
997-2007
|
Hose clamp |
1 |
|
|
18 |
173-4416
|
Male coupler |
2 |
|
|
19 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
|
20 |
999-1207
|
Screw 5/16-18 x 2 1/2 hex head stainless steel |
5 |
|
|
21 |
173-5694
|
Gasket |
1 |
|
|
22 |
173-4417
|
Vacuum cover mounting plate |
1 |
|
|
23 |
173-1671
|
Vacuum hose assembly (black) (OBSOLETE) |
1 |
|
|
24 |
173-2242
|
Hose clamp |
1 |
|
|
25 |
173-5695
|
7 inch vent hose |
1 |
|
|
26 |
173-4418
|
10 inch green wire |
1 |
|
|
27 |
173-2472
|
Nut 10-32 with star washer |
2 |
|
|
28 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
1 |
|
|
