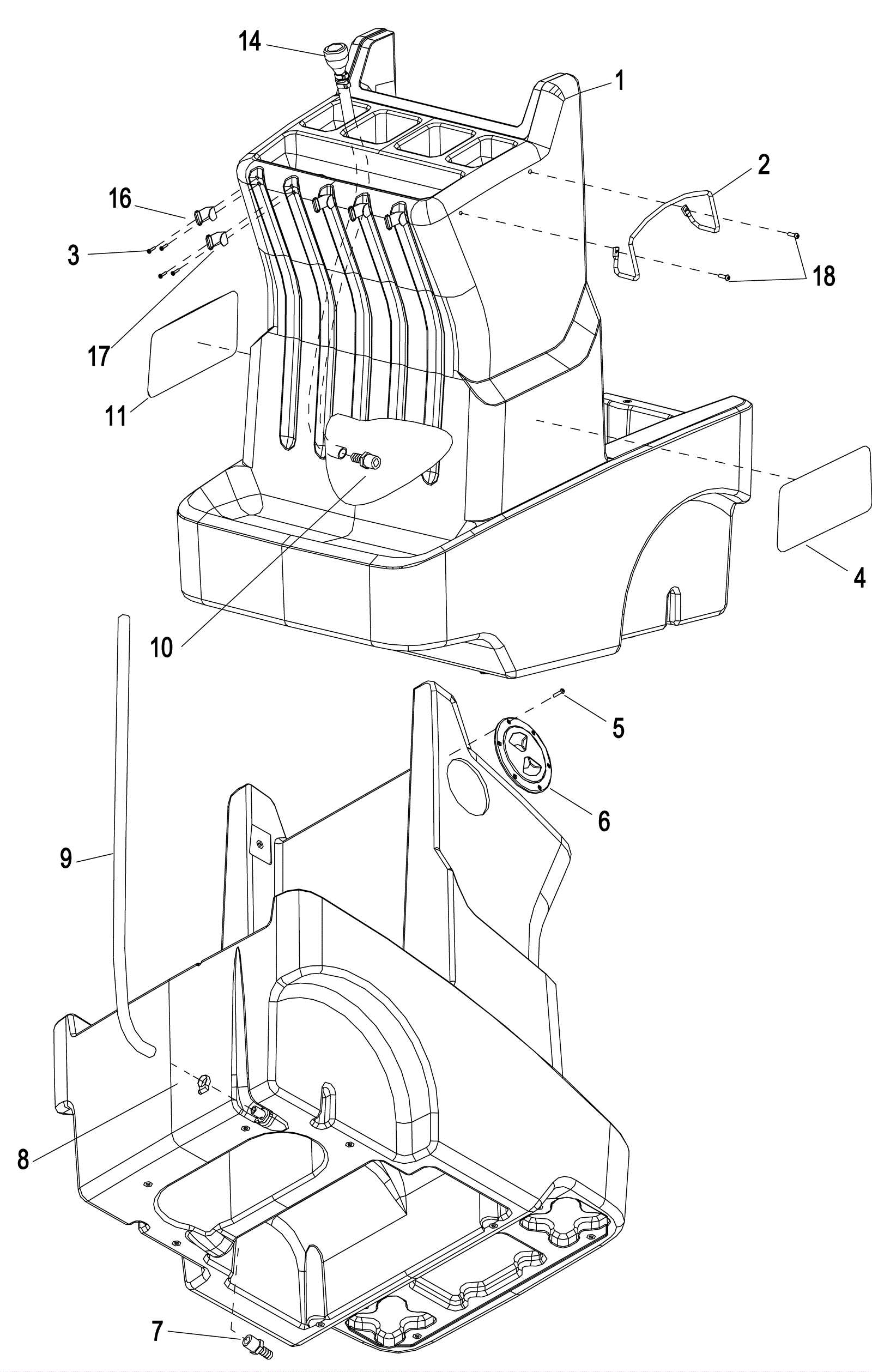

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-4404
|
Solution tank |
1 |
|
|
2 |
173-5655
|
Hose storage hook |
1 |
|
|
3 |
999-1390
|
Screw 10-12 x 3/4 truss head phillips stainless steel |
10 |
|
|
4 |
173-4405
|
Left Compass decal |
1 |
|
|
5 |
999-1141
|
Screw 8 x 3/4 pan head phillips zinc plated |
6 |
|
|
6 |
173-8611
|
Tank cover (OBSOLETE) |
1 |
|
|
7 |
173-3396
|
Hosebarb |
1 |
|
|
8 |
173-1821
|
Hose clamp |
1 |
|
|
9 |
173-4412
|
Hose |
1 |
|
|
10 |
173-2624
|
Hosebarb 3/4MPT x 1/2 hose |
1 |
|
|
11 |
173-4406
|
Right Compass decal |
1 |
|
|
12 |
999-1207
|
Screw 5/16-18 x 2 1/2 hex head stainless steel |
2 |
|
|
13 |
173-4407
|
Tab hook bracket |
2 |
|
|
14 |
173-2246
|
Fill hose assembly |
1 |
|
|
15 |
173-4409
|
Bungee cord |
1 |
|
|
16 |
173-4410
|
7 inch velcro strap |
3 |
|
|
17 |
173-4411
|
4 1/2 inch velcro strap |
2 |
|
|
18 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
2 |
|
|
