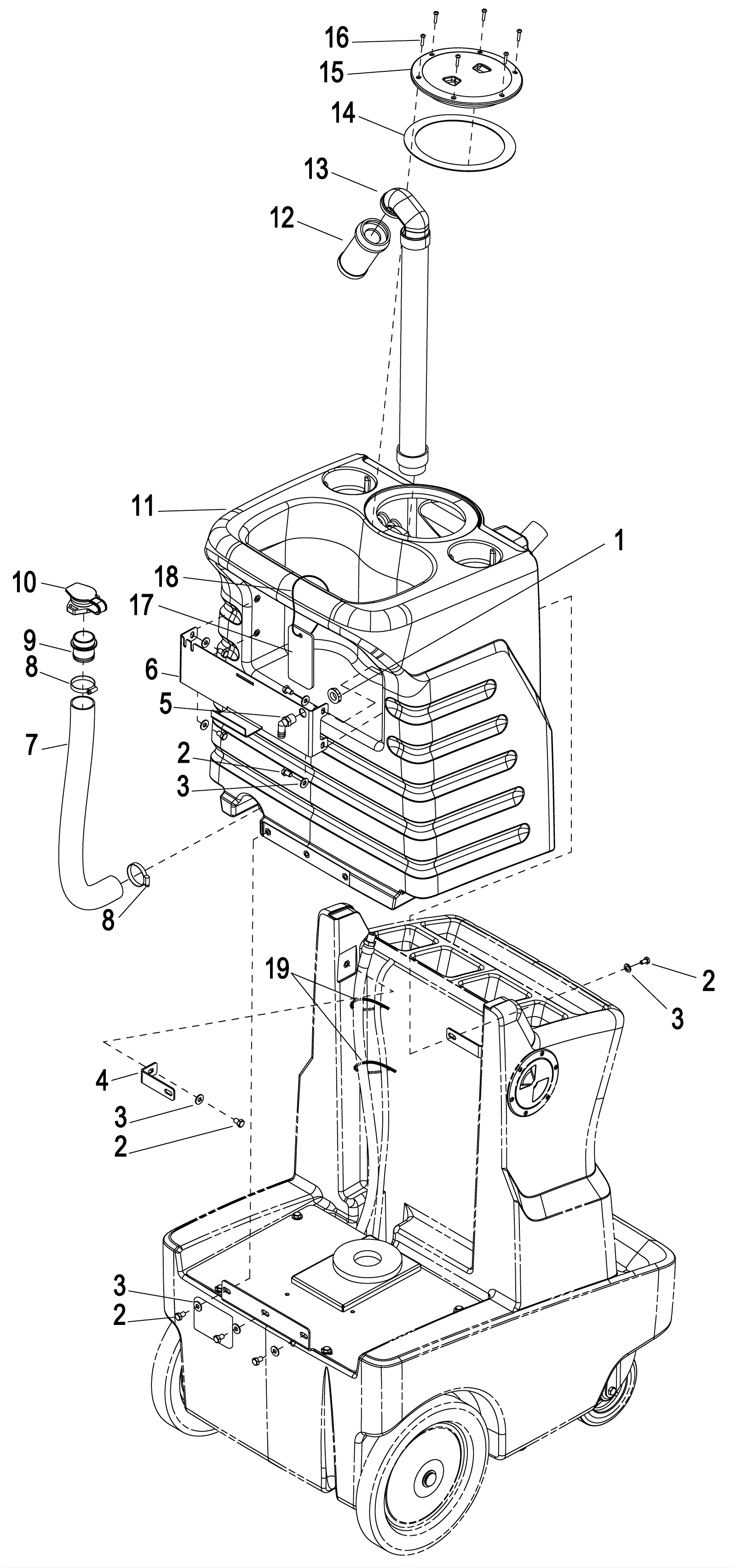

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-4130
|
Nut 3/8 plastic nickel plated thread (OBSOLETE) |
1 |
|
|
2 |
999-1207
|
Screw 5/16-18 x 2 1/2 hex head stainless steel |
11 |
|
|
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
11 |
|
|
4 |
173-5688
|
Tank mount bracket |
2 |
|
|
5 |
173-1072
|
Hosebarb 3/8 x 1/2 inch |
1 |
|
|
6 |
173-4401
|
Utility mounting bracket |
1 |
|
|
7 |
173-2320
|
Vacuum hose 1 1/2 x 24 inch (black) |
1 |
|
|
8 |
997-2007
|
Hose clamp |
2 |
|
|
9 |
173-5207
|
Hose insert |
1 |
|
|
10 |
173-5208
|
Drain plug |
1 |
|
|
11 |
173-4402
|
Recovery tank |
1 |
|
|
12 |
173-5336
|
Float cage assembly |
1 |
|
|
13 |
173-5689
|
Stand pipe assembly |
1 |
|
|
14 |
173-8585
|
Tank lid gasket |
1 |
|
|
15 |
173-8584
|
Tank lid (OBSOLETE) |
1 |
|
|
16 |
999-1141
|
Screw 8 x 3/4 pan head phillips zinc plated |
6 |
|
|
17 |
173-4403
|
Instruction card |
1 |
|
|
18 |
173-3412
|
Cord 1/8 x 12 inch |
1 |
|
|
19 |
273-3820
|
11 inch cable tie |
2 |
|
|
