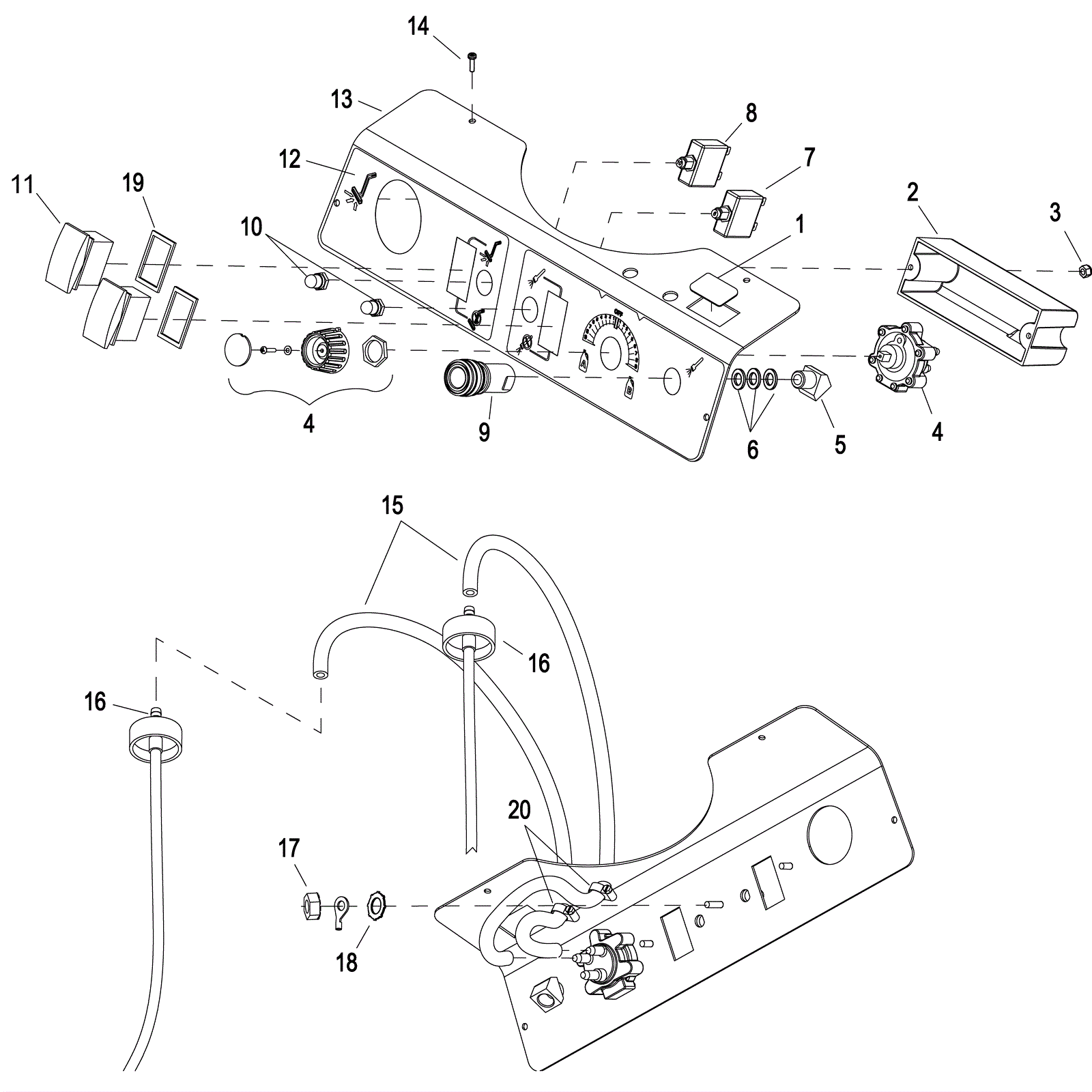

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-5450
|
Cover decal |
1 |
|
|
2 |
173-4398
|
Switch panel cover |
1 |
|
|
3 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
2 |
|
|
4 |
273-0057
|
Chemical metering valve |
1 |
|
|
5 |
173-1928
|
Elbow |
1 |
|
|
6 |
173-5162
|
Washer 5/8 x 1/2 inch |
3 |
|
|
7 |
173-2053
|
6amp circuit breaker |
1 |
|
|
8 |
173-5647
|
10amp circuit breaker |
1 |
|
|
9 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
10 |
189-0312
|
3/8 inch circuit breaker boot |
2 |
|
|
11a |
173-2277
|
2 position rocker switch |
2 |
|
|
11b |
189-0319
|
2 position rocker switch |
1 |
|
|
12 |
173-4399
|
Switch panel decal |
1 |
|
|
13 |
173-4400
|
Switch control panel |
1 |
|
|
14 |
999-1390
|
Screw 10-12 x 3/4 truss head phillips stainless steel |
4 |
|
|
15 |
273-0042
|
Nylon braided hose 1/4 x 23 inch |
2 |
|
|
16 |
173-8598
|
Chemical feed cap |
2 |
|
|
17 |
173-2472
|
Nut 10-32 with star washer |
2 |
|
|
18 |
999-0311
|
Washer #10 external star lock zinc plated |
1 |
|
|
19 |
173-4358
|
Switch gasket |
2 |
|
|
20 |
173-2741
|
Hose clamp |
2 |
|
|
