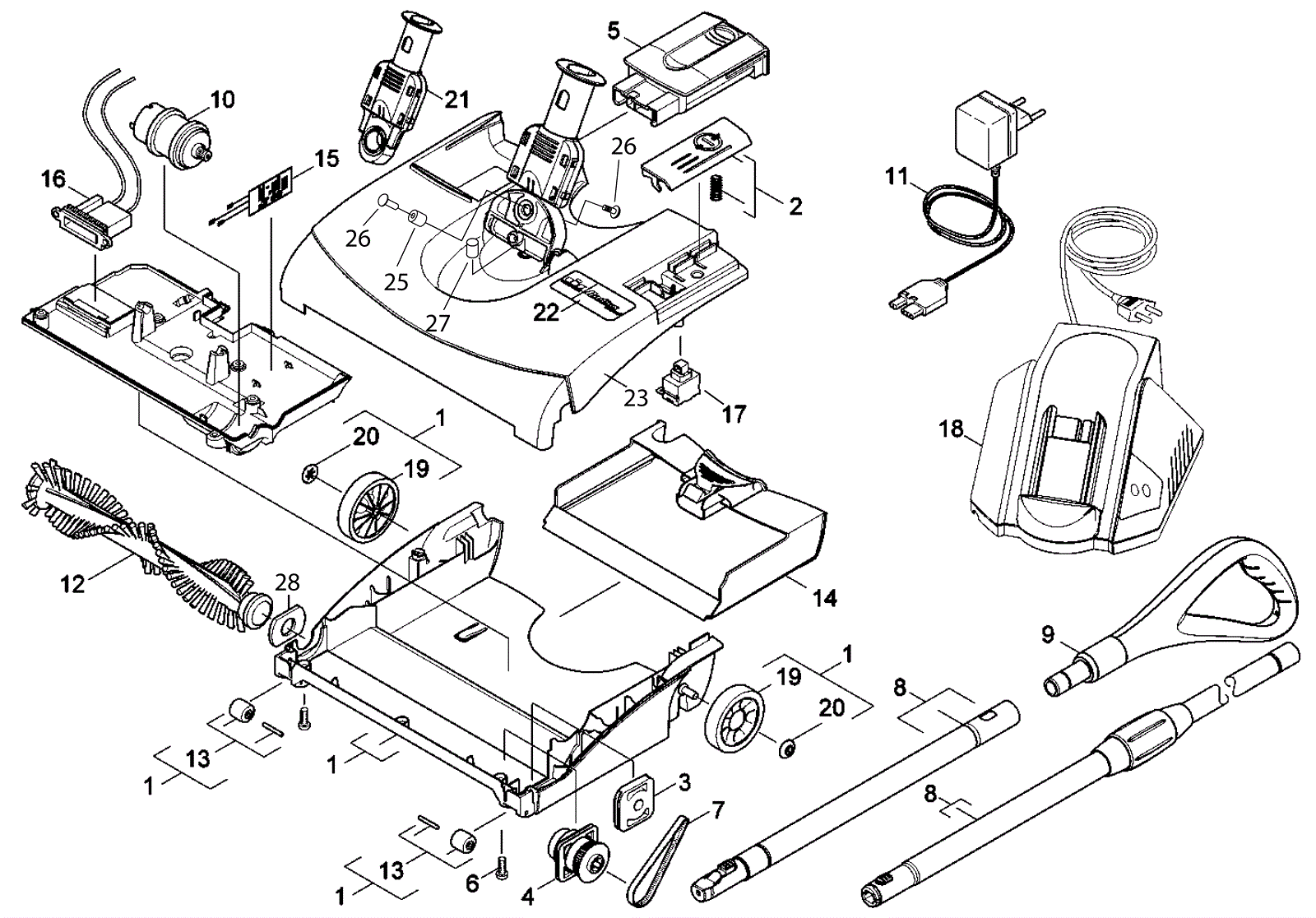

RADIUS MINI Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4375 Bottom part complete (black) $150.70 1 usually ships 1-5 days
2 173-4376 Push button (black) $55.55 1 usually ships 14-22 days
3 173-4377 Right bearing $13.09 1 usually ships 14-22 days
4 173-5296 Transmission $59.95 1 usually ships 14-22 days
5 183-7541 7V Lithium battery $123.20 1 ships same day
6 173-4378 Screw $0.99 11 usually ships 14-22 days
7 173-4379 Toothed belt $21.12 1 usually ships 14-22 days
8 173-4380 Tube complete (black) $59.95 1 usually ships 14-22 days
9 173-4381 Hand grip $31.13 1 usually ships 14-22 days
10 173-4382 Motor $151.80 1 usually ships 14-22 days
11 173-4383 120V adapter $60.74 1 ships same day
12a 183-7551 Brush roller (black) $40.71 1 ships same day
12b 273-6426 Brush roller (red) $49.06 1 usually ships 14-22 days
13 183-8106 Roller assembly $18.48 1 ships same day
14 173-4384 Sweep tank (gray) $45.22 1 ships same day
15 173-4385 Electronics $100.10 1 usually ships 1-5 days
16 173-4386 Electrical small parts $66.55 1 usually ships 1-5 days
17 173-4387 Switch $11.44 1 usually ships 14-22 days
18 273-6411 Battery charger $249.70 1 usually ships 14-22 days
19 173-4388 Wheel (black) $5.50 2 usually ships 1-5 days
20 173-4389 Lock washer $9.90 2 usually ships 14-22 days
21 173-4390 Locking part complete $32.23 1 usually ships 1-5 days
22 173-4391 Radius Mini decal Call for price 1 usually ships 1-5 days
23 173-4392 Top cover (blue) (OBSOLETE) $38.06 1 usually ships 14-22 days
24 173-4393 Nut $1.21 1 usually ships 1-5 days
25 173-4394 Spacer sleeve $4.51 1 usually ships 1-5 days
26 173-4395 Screw $1.52 1 usually ships 1-5 days
27 173-4396 Thrust piece spring $12.98 1 ships same day
28 173-4397 Left bearing plate $9.41 1 usually ships 14-22 days
