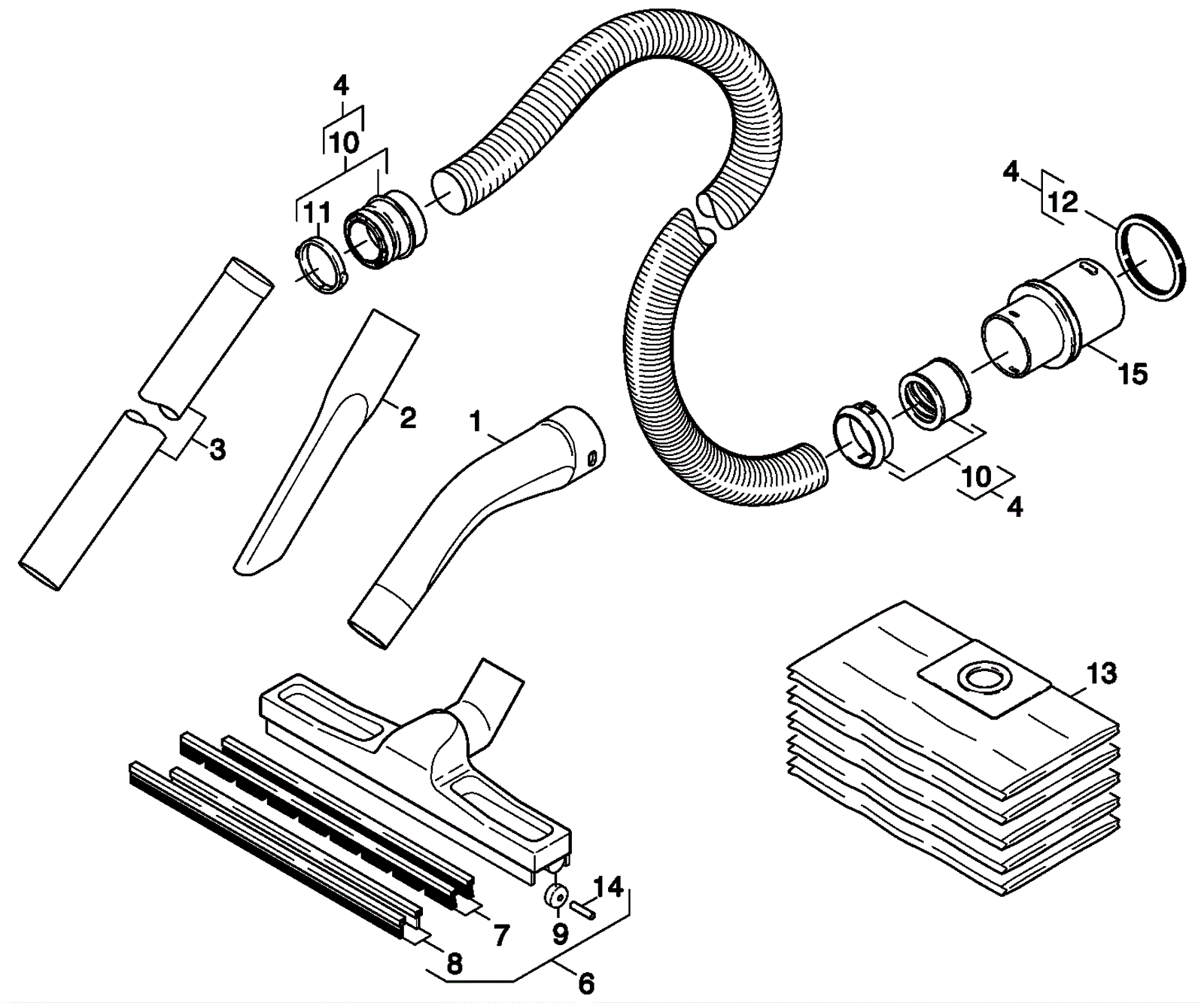

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-5754
|
Elbow |
1 |
|
|
2 |
173-5755
|
Crevice nozzle |
1 |
|
|
3 |
173-5756
|
Suction tube |
2 |
|
|
4 |
173-5757
|
Suction hose elbow |
1 |
(includes 10, 11 and 12) |
|
6 |
173-5758
|
Floor tool with brush strips |
1 |
(includes 7-9 and 14) |
|
7 |
173-5759
|
Brush strips (pkg of 2) |
1 |
|
|
8 |
173-5760
|
Squeegee blade set |
1 |
|
|
9 |
173-5766
|
Roller complete with axle |
1 |
|
|
10 |
173-5762
|
Coupling |
1 |
|
|
11 |
173-5763
|
Tension ring |
1 |
|
|
12 |
173-5764
|
O-ring |
1 |
|
|
13 |
173-5768
|
Filter bags (pkg of 5) |
1 |
|
|
14 |
173-5766
|
Roller complete with axle |
2 |
|
|
15 |
173-5767
|
Hose cuff |
1 |
|
|
N/S |
173-5760
|
Squeegee blade set |
1 |
|
|
N/S |
273-6688
|
Squeegee deck assembly |
|
|
|
N/S |
273-1145
|
Pivot cover |
|
|
|
N/S |
273-1146
|
Screw 1/4-10 x 1.25 hex head plastite |
|
|
|
N/S |
173-7263
|
Washer seal 1/4 x 5/8 stainless steel |
|
|
|
