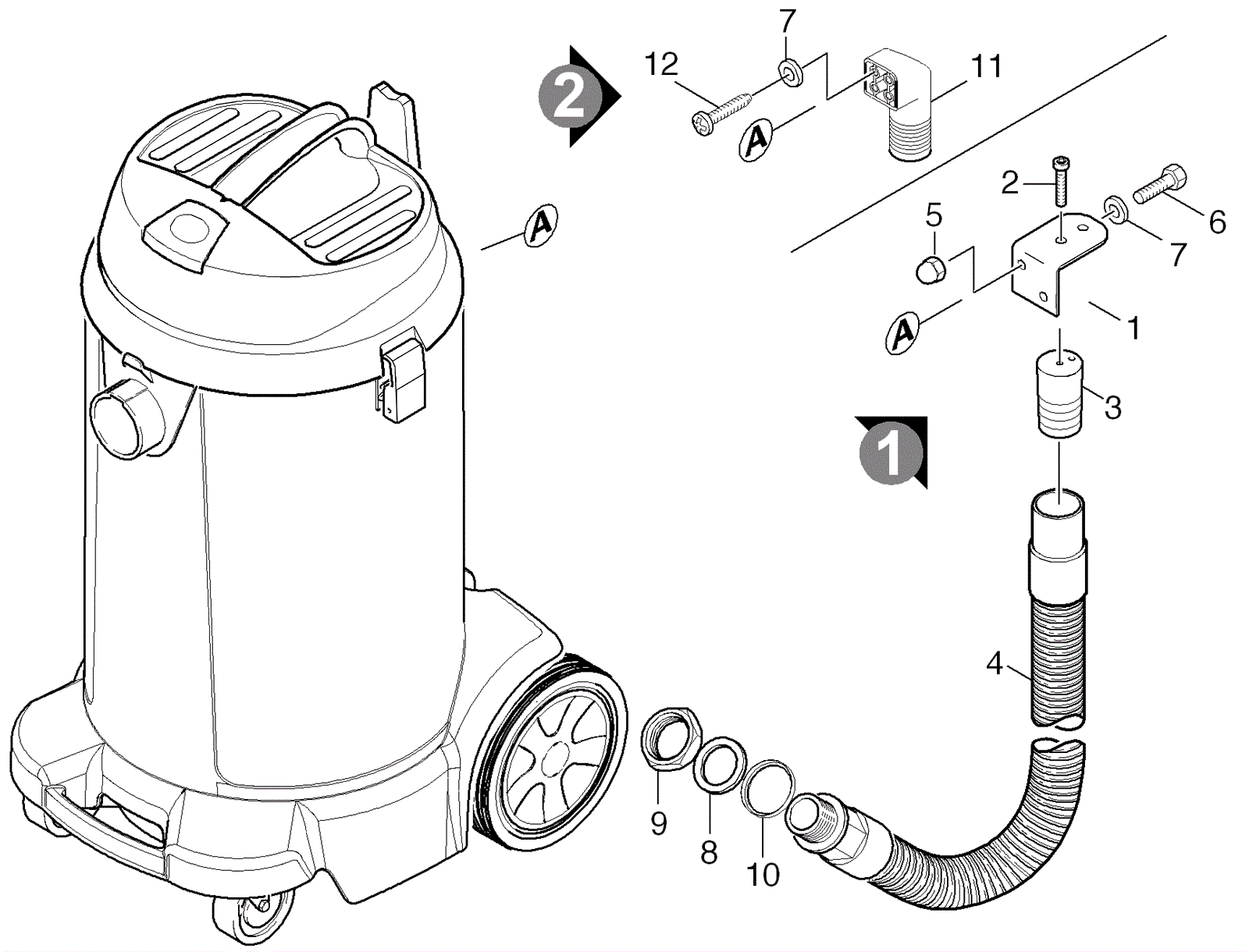

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-5436
|
Bracket |
1 |
(style 1) |
|
2 |
183-0108
|
Screw M4-10.9 x 16mm oval head |
2 |
(style 1) |
|
3 |
183-0161
|
Drain hose cap |
1 |
(style 1) |
|
4 |
173-5437
|
Recovery tank drain hose |
1 |
|
|
5 |
173-5438
|
Nut M5-50 acorn |
1 |
(style 1) |
|
6 |
173-5439
|
Screw M5 hex head |
2 |
(style 1) |
|
7 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
8 |
173-5440
|
O-ring |
1 |
|
|
9 |
173-5441
|
Nut hex |
1 |
|
|
10 |
173-5442
|
Ring |
1 |
|
|
11 |
173-5443
|
Drain hose connector |
1 |
(style 2) |
|
