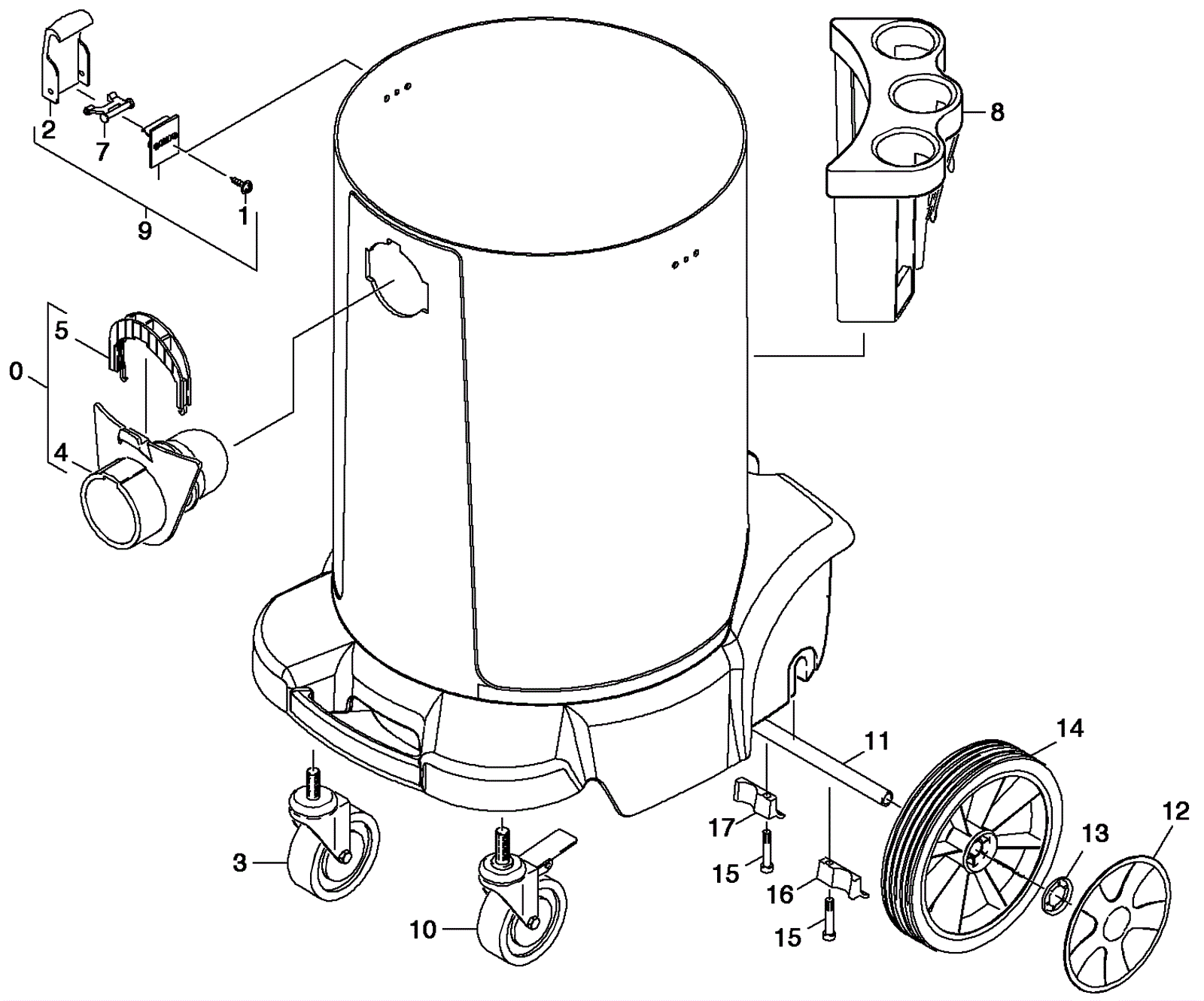

Tank Assembly

#PartDescription ReqNotesAvailability
0 273-0965 Tank assembly 1 (includes 4 and 5)
2 273-0967 Locking latch 2
3 273-0968 Caster wheel 1
4 273-0969 Hose receptacle 1
5 273-0970 Hose holder connector 1
7 273-0971 Locking joint 1
8 273-0972 Accessories holder 2
9 273-0973 Closure latch 1 (includes 1, 2, 7)
10 173-5389 3 inch caster wheel 1
11 273-0974 Axle 1
12 273-0975 Wheel hub 2
13 273-0976 Hub clip 2
14 173-5390 Wheel 2
15 273-0977 Screw M5-10.9 x 30mm 2
16 273-0978 Left holder 1
17 273-0979 Right holder 1
