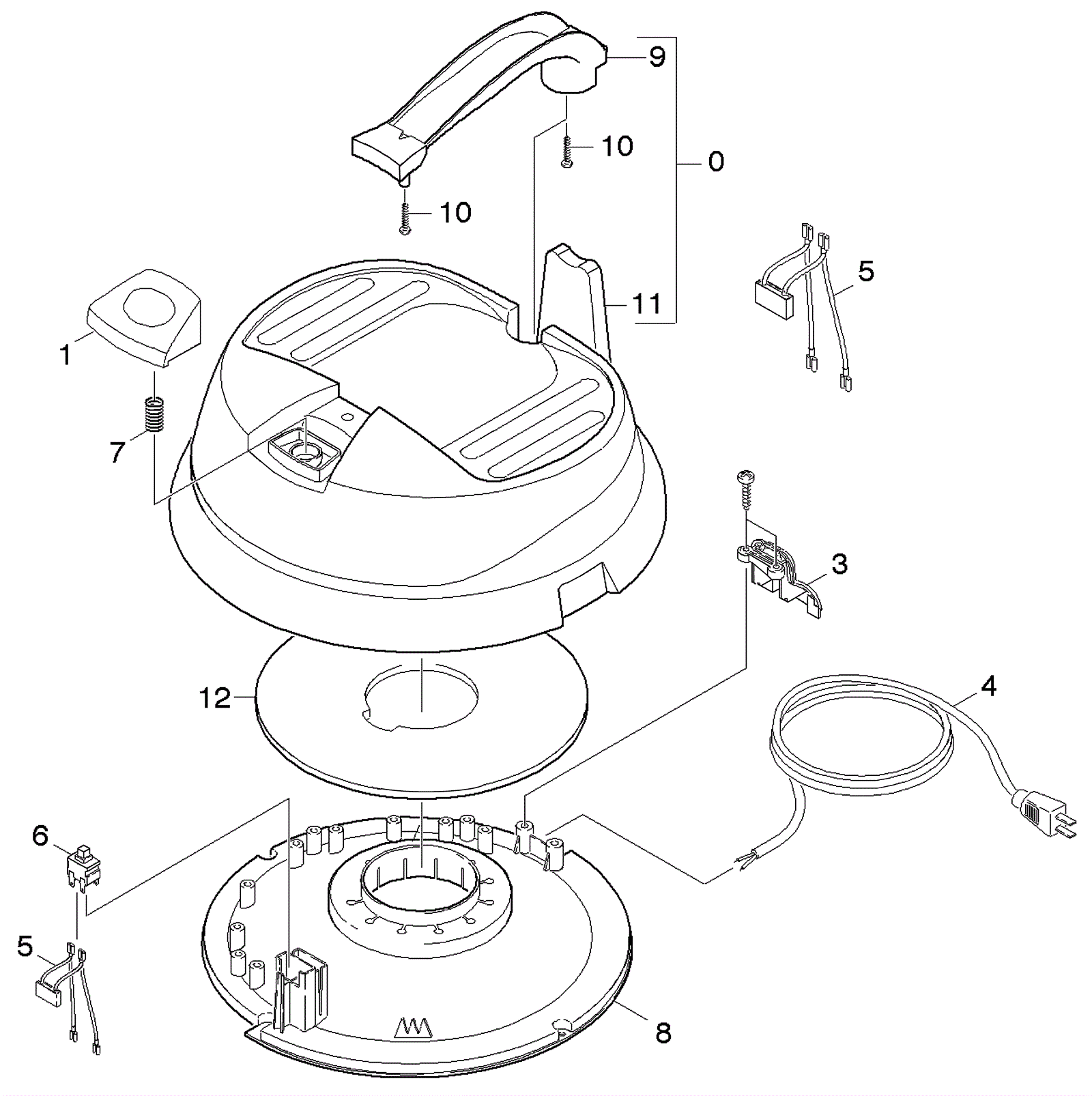

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
273-0955
|
Cover assembly |
1 |
(includes 9, 10, 11) |
|
1 |
273-0956
|
Spring cover |
1 |
|
|
3 |
273-0957
|
Strain relief |
1 |
|
|
4a |
173-5384
|
14/3 power cord |
1 |
(OEM) |
|
4b |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
|
4c |
991-5001
|
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
5 |
273-0958
|
Wire |
1 |
|
|
6 |
173-5367
|
Toggle switch |
1 |
|
|
7 |
273-0959
|
Spring |
1 |
|
|
8 |
273-0960
|
Bottom plate |
1 |
|
|
9 |
273-0961
|
Handle |
1 |
|
|
10 |
273-0962
|
Screw M4-10.9 x 25mm phillips head |
4 |
|
|
11 |
273-0963
|
Cover |
1 |
|
|
12 |
273-0964
|
Sound insulation set |
1 |
|
|
