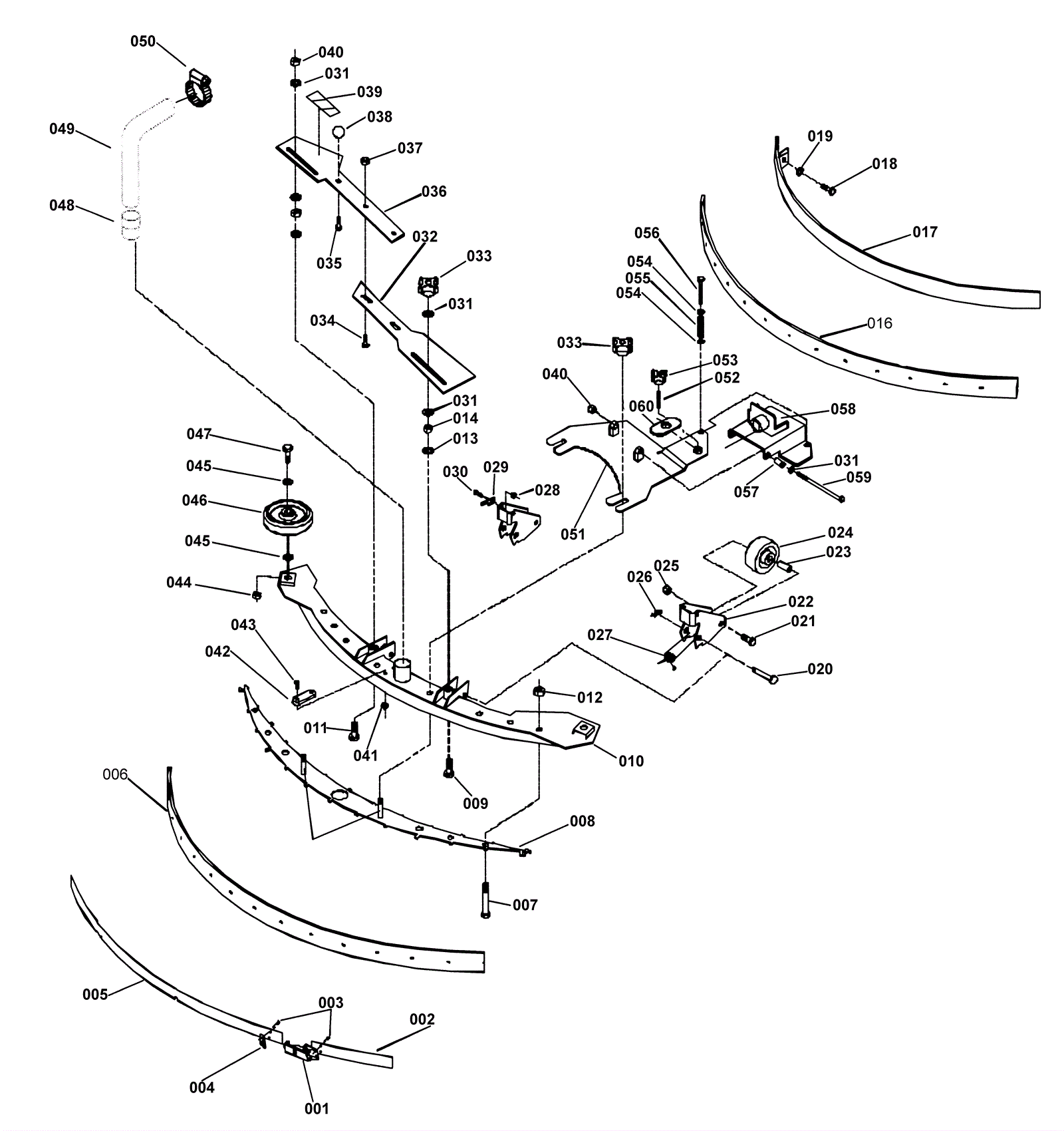

FLEX CAT2 Tight Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-0412 Squeegee strap latch $47.20 1 usually ships 7-12 days
002 173-8774 Rear strap assembly $115.50 1 usually ships 1-5 days
003 173-2797 Rivet $1.57 4 usually ships 14-22 days
004 170-7029 Keeper $3.75 1 ships same day
005 173-8775 Rear long strap assembly $172.70 1 usually ships 1-5 days
006a 173-8776 Squeegee blade rear linatex $172.70 1 usually ships 1-5 days
006b 173-8777 Squeegee blade rear tile (OBSOLETE) $97.70 usually ships 1-5 days
006c 173-8778 Squeegee blade rear $122.10 usually ships 1-5 days
007 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc $0.99 9 ships same day
008 173-8779 Plate assembly $312.40 1 usually ships 1-5 days
009 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 1 ships same day
010 173-8780 Squeegee top plate assembly $1,041.70 1 usually ships 1-5 days
011 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
012 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 6 ships same day
013 999-1144 Washer 3/8 external star lock stainless steel $0.99 2 ships same day
014 999-0247 Nut 3/8-16 hex jam plain finish $0.99 2 ships same day
016a 173-8781 Squeegee blade front $141.90 1 usually ships 1-5 days
016b 173-8782 Squeegee blade front tile $78.10 usually ships 1-5 days
016c 173-8783 Squeegee blade front (OBSOLETE) $59.38 usually ships 1-5 days
017 173-8784 Front strap assembly $148.80 1 usually ships 1-5 days
018 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 1 ships same day
019 999-0971 Nut 1/4-20 jam stainless steel $0.99 1 ships same day
020 173-1610 Clevis pin $16.89 2 usually ships 14-22 days
021 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
022 173-1624 Squeegee wheel support bracket $47.30 2 usually ships 1-5 days
023 173-1634 Bushing $11.55 2 usually ships 14-22 days
024a 173-1630 3 inch rubber wheel $5.50 2 ships same day
025 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
026 173-1593 Cotter ring (OBSOLETE) $0.99 2 usually ships 14-22 days
027 173-1601 Torsion spring $23.98 2 usually ships 1-5 days
028 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
029 173-1617 Pointer plate $15.43 1 usually ships 1-5 days
030 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 1 ships same day
031 999-0033 Washer 7/16 SAE flat $0.99 6 ships same day
032 173-8764 Slide plate short $45.76 1 usually ships 1-5 days
033 173-1025 Knob $21.12 3 usually ships 14-22 days
034 173-3931 Screw 1/4-20 x 3/4 carriage $0.99 2 usually ships 1-5 days
035 173-3962 Bolt 5/16-18 x 1/2 hex head $3.33 1 usually ships 1-5 days
036 173-8765 Side plate long $24.20 1 usually ships 1-5 days
037 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
038 173-1618 Knob adjustment ball $9.87 1 usually ships 1-5 days
039 173-1616 Squeegee overlay $11.99 1 usually ships 1-5 days
040 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
041 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
042 164-1136 Squeegee level $13.15 1 usually ships 18-33 days
043 173-8766 Screw 8-32 X 1 1/4 flat head stainless steel machine $1.52 2 usually ships 1-5 days
044 173-5058 Nut 1/2-13 elastic stop $2.97 2 usually ships 1-5 days
045 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
046 173-8767 Wheel 6 X 1 X 1/2 gray $51.04 2 usually ships 1-5 days
047 999-0378 Bolt 1/2-13 x 2 1/2 hex head grade 5 zinc plated $1.67 2 ships same day
048 173-3716 Hose cuff $67.65 1 usually ships 1-5 days
049 173-3717 Squeegee hose $111.10 1 usually ships 1-5 days
050 997-2003 Hose clamp $2.66 1 ships same day
051 173-8768 Squeegee mount assembly lower $192.50 1 usually ships 1-5 days
052 173-8769 Stud 3/8-16 X 2 3/25 stainless steel $26.51 1 usually ships 1-5 days
053 173-8770 Knob 3/8-16 X 2 3/25 stainless steel (OBSOLETE) $13.32 1 usually ships 1-5 days
054 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
055 173-8771 Compression spring $19.25 1 usually ships 1-5 days
056 999-0921 Bolt 3/8-16 x 3 1/2 hex head grade 8 plain finish $1.47 1 usually ships 1-5 days
057 173-1665 Flanged bearing $6.11 2 usually ships 14-22 days
058 173-8786 Squeegee mount assembly upper modern $258.50 1 usually ships 1-5 days
059 173-4138 Screw 3/8-16 x 6 hex head cap stainless steel $12.67 2 usually ships 1-5 days
060 173-8773 Squeegee locking bar $31.24 1 usually ships 1-5 days
