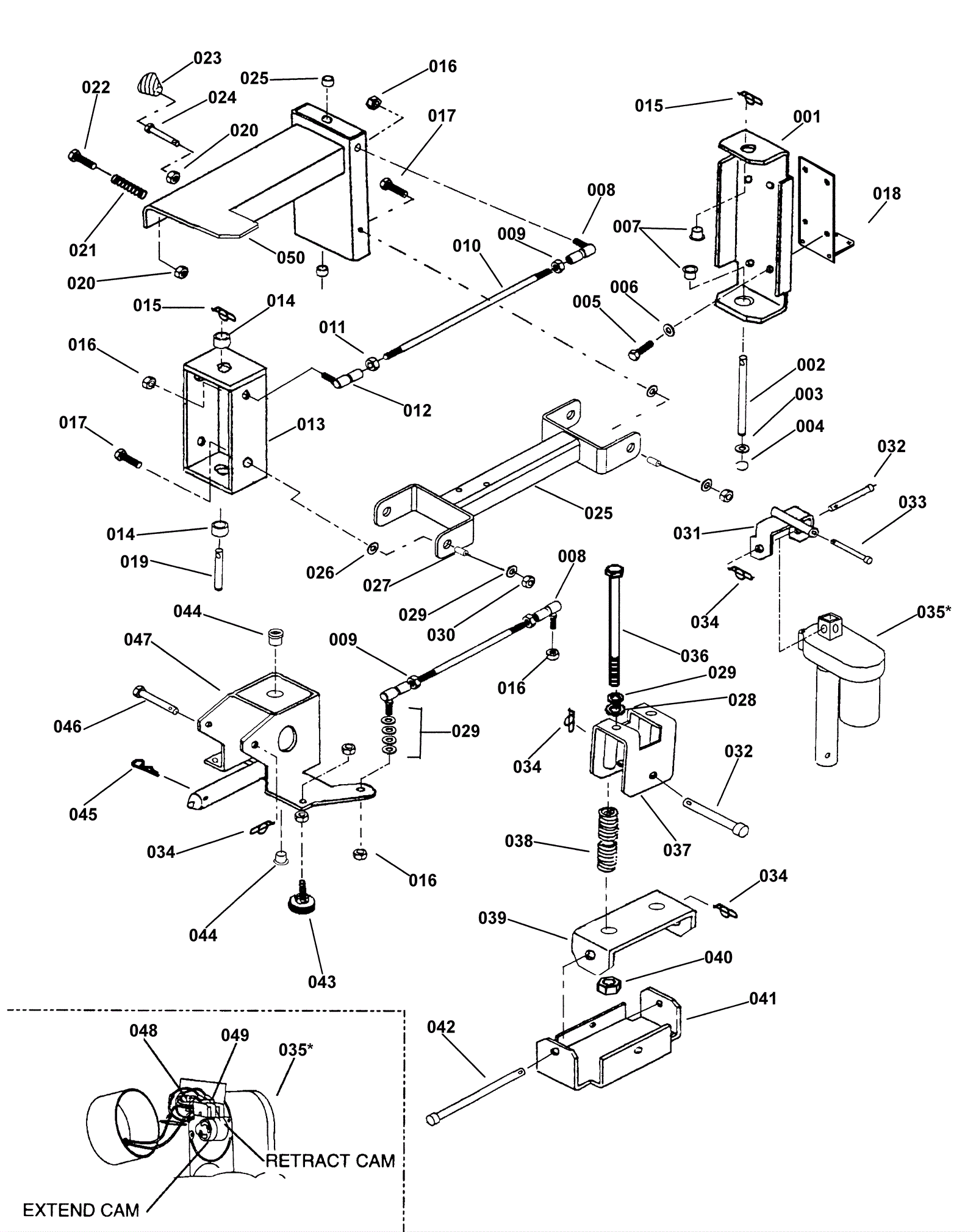

FLEX CAT2 Scrub Head Lift Disk Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-3692 Swing mount plate $464.20 1 usually ships 1-5 days
002 173-3695 Pivot pin $0.99 1 usually ships 1-5 days
003 173-3974 Washer 53/100 ID X 1 OD X 3/50 $2.44 10 usually ships 1-5 days
004 173-3486 Snap ring $4.16 2 usually ships 14-22 days
005 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
006 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
007 173-3220 Bushing $7.54 4 usually ships 1-5 days
008 173-3691 1/2 inch ball joint $56.10 3 ships same day
009 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
010 173-3687 Trailing assembly rod $98.10 1 usually ships 1-5 days
011 999-0134 Nut 1/2-20 hex jam plain finish $0.99 1 ships same day
012 173-8740 Pin .178 diameter cotter hair $45.10 1 usually ships 1-5 days
013 173-3688 Front pivot $170.84 1 usually ships 1-5 days
014 173-3355 Bearing fiber $23.21 8 usually ships 1-5 days
015 173-1659 1/2 inch cotter ring (OBSOLETE) $2.90 2 usually ships 14-22 days
016 173-5056 Nut 1/2-20 hex elastic lock (OBSOLETE) $2.77 4 usually ships 14-22 days
017 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
018 173-3561 Valve mount angle $85.25 1 usually ships 1-5 days
019 173-3696 Pivot pin 1/2 X 7 5/8 inch (OBSOLETE) $53.71 1 usually ships 1-5 days
020 999-0069 Nut 5/16-18 hex $0.99 6 ships same day
021 173-3693 Extension spring $24.24 1 usually ships 1-5 days
022 173-3378 Clevis pin $6.88 1 usually ships 1-5 days
023 173-3697 Shift stop bumper $3.96 1 usually ships 1-5 days
024 999-0353 Bolt 5/16-18 x 2 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
025 173-3686 Trailing arm channel $183.70 1 usually ships 1-5 days
026 173-3995 Washer 1/2 Fiber Glide $20.79 4 usually ships 1-5 days
027 173-1591 Spacer $45.21 4 usually ships 1-5 days
028 173-3996 Washer 3/8in ID x 1x 0.1 neoprene $3.96 2 usually ships 1-5 days
029 999-0033 Washer 7/16 SAE flat $0.99 2 ships same day
030 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 6 usually ships 14-22 days
031 173-3520 Actuator pivot $80.30 1 usually ships 1-5 days
032 173-1595 Clevis pin (OBSOLETE) $4.88 2 usually ships 10-16 days
033 173-3157 Clevis pin $17.27 1 usually ships 14-22 days
034 173-1593 Cotter ring (OBSOLETE) $0.99 5 usually ships 14-22 days
035 273-4033 36V actuator $843.70 1 usually ships 14-22 days
036 999-0926 Bolt 3/8-16 x 7 1/2 hex head grade 8 plain finish $5.92 2 usually ships 1-5 days
037 173-3526 Spring retainer $106.15 1 usually ships 1-5 days
038 173-1776 Compound spring $27.01 4 usually ships 1-5 days
039 173-3524 Spring mount $121.24 1 usually ships 1-5 days
040 999-0170 Nut 3/8-16 hex plain finish $0.99 2 ships same day
041 173-3525 Pivot channel $103.95 1 usually ships 1-5 days
042 173-1596 Clevis pin $19.58 1 usually ships 14-22 days
043 173-1537 Adjustment bumper $53.79 2 usually ships 1-5 days
044 173-3220 Bushing $7.54 4 usually ships 1-5 days
045 173-1538 Cotter hair pin $9.68 1 usually ships 1-5 days
046 173-3531 Clevis pin $6.55 1 usually ships 14-22 days
047 173-3690 Quick connect pin weldment $380.26 1 usually ships 1-5 days
048 173-3462 Assembly fasco actuator diode $64.35 1 usually ships 1-5 days
049 173-3463 Travel limit switch $51.59 1 usually ships 1-5 days
050 173-3681 Swing arm weldment $230.11 1 usually ships 1-5 days
