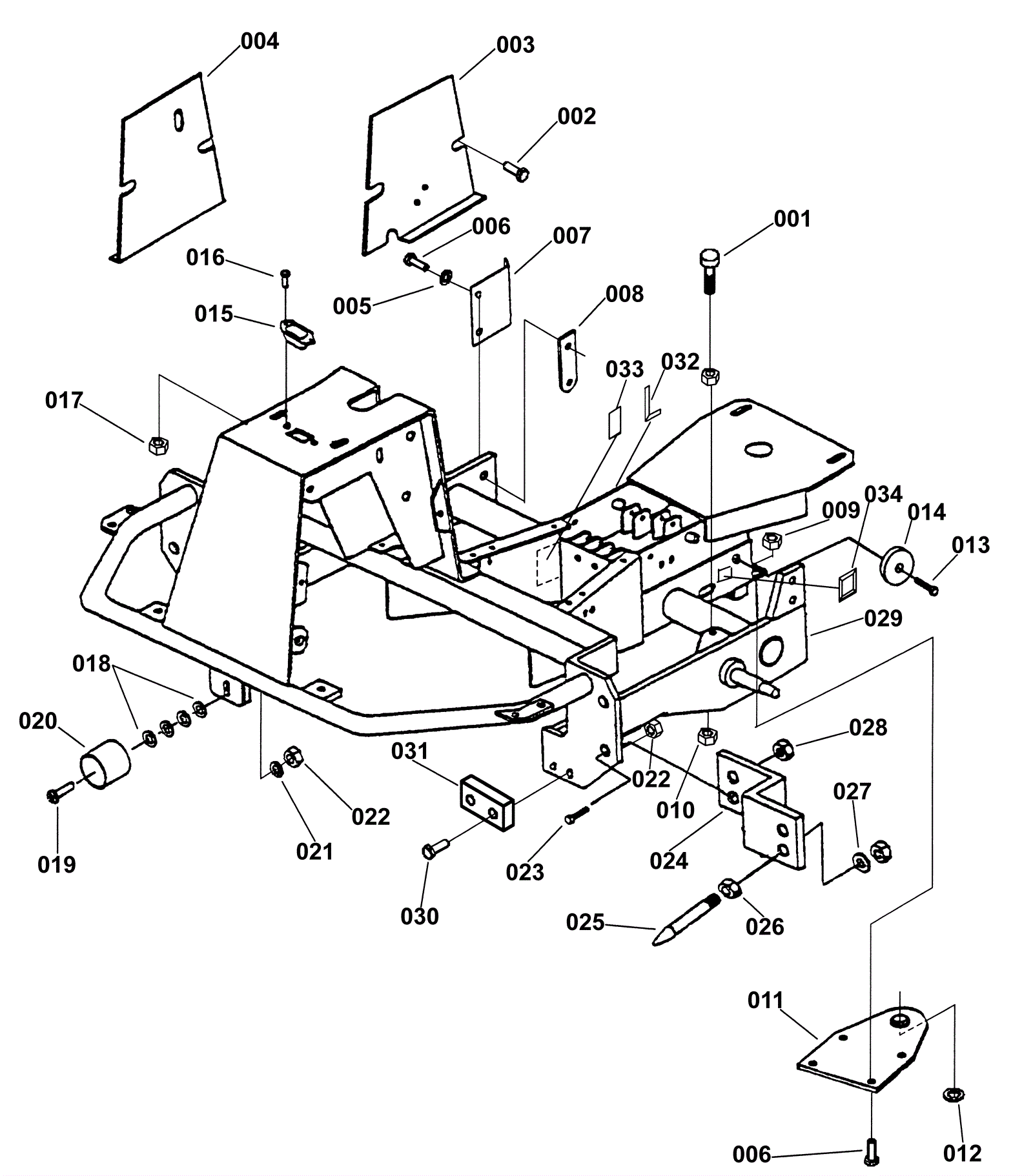

FLEX CAT2 Front Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-1537 Adjustment bumper $53.79 4 usually ships 1-5 days
002 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 4 ships same day
003 173-3569 Left cover plate $119.90 1 usually ships 1-5 days
004 173-3568 Right cover plate $88.55 1 usually ships 1-5 days
005 173-5043 Washer 3/8 interlocking $1.25 2 usually ships 1-5 days
006 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 6 ships same day
007 173-3574 Drain hose guard plate $44.55 1 usually ships 1-5 days
008 173-3573 Tapped bar from S/N6000513 $58.85 1 usually ships 1-5 days
009 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 4 usually ships 14-22 days
010 999-0069 Nut 5/16-18 hex $0.99 8 ships same day
011 173-3558 Pivot plate weldment $279.40 1 usually ships 1-5 days
012 173-1062 1.0 extension snap hd ring $5.50 1 usually ships 1-5 days
013 173-3962 Bolt 5/16-18 x 1/2 hex head $3.33 2 usually ships 1-5 days
014 173-3575 Spacer plate $19.25 2 usually ships 1-5 days
015 173-1160 LED hour meter $213.40 1 usually ships 14-22 days
016 173-3976 Screw 6-32 x 3/4 socket head cap $3.92 2 usually ships 1-5 days
017 173-5037 Nut 6-32 elastic stop (OBSOLETE) $1.25 2 usually ships 14-22 days
018 173-5040 Washer plastic $1.91 4 usually ships 1-5 days
019 173-5041 Screw 1/4-20 x 1 1/2 socket head $3.76 1 usually ships 1-5 days
020 173-3570 Female latch $28.66 1 usually ships 1-5 days
021 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
022 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 5 ships same day
023 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 4 ships same day
024 173-3576 Extension plate $76.45 2 usually ships 1-5 days
025 173-3567 Bumper pin $72.19 4 usually ships 1-5 days
026 999-0881 Nut 1/2-13 jam $0.99 8 usually ships 1-5 days
027 999-0126 Washer 1/2 split lock $1.28 4 ships same day
028 173-5058 Nut 1/2-13 elastic stop $2.97 4 usually ships 1-5 days
029 173-8708 Front frame (OBSOLETE) $2,380.20 1 usually ships 1-5 days
030 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated $0.99 4 usually ships 1-5 days
031 173-3559 Slide block $53.27 2 usually ships 1-5 days
032 173-3776 Edging $10.25 2 usually ships 1-5 days
033 173-8709 Edging 1 63/100 inch $20.90 1 usually ships 1-5 days
034 173-8710 Edging 7 1/4 inch $15.73 1 usually ships 1-5 days
