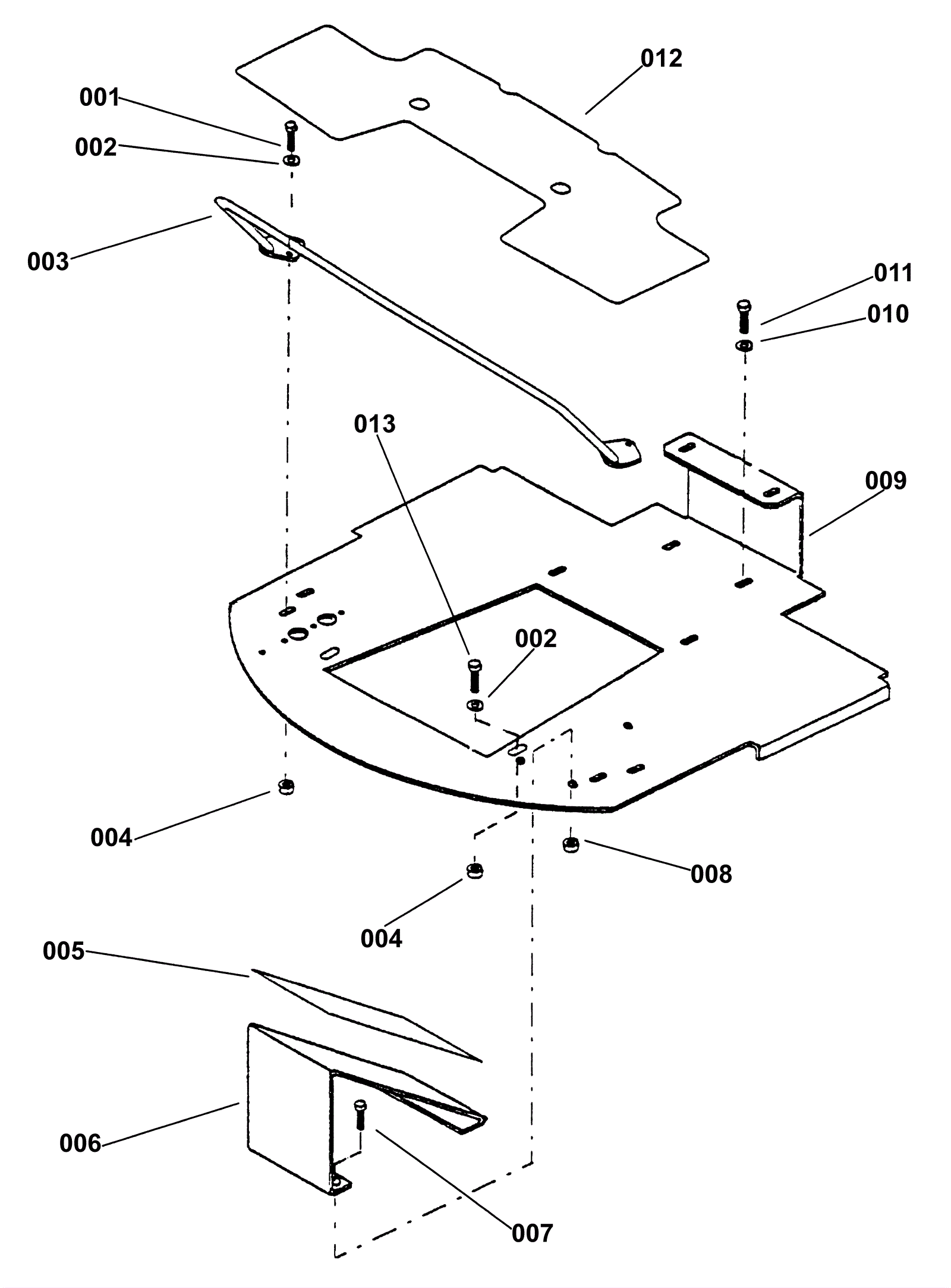

FLEX CAT2 Floor Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
002 999-0033 Washer 7/16 SAE flat $0.99 6 ships same day
003 173-3665 Guard weldment $147.77 1 usually ships 1-5 days
004 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 6 usually ships 14-22 days
005 173-3664 Foot rest pad $7.15 1 usually ships 1-5 days
006 173-3662 Foot rest plate $68.20 1 usually ships 1-5 days
007 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 3 ships same day
008 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
009 173-8704 Plate floor (OBSOLETE) $278.42 1 usually ships 1-5 days
010 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
011 173-5055 Screw 3/8-16 x 2 1/2 $5.10 4 usually ships 1-5 days
012 173-8705 Pad floor $166.58 1 usually ships 1-5 days
013 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 ships same day
