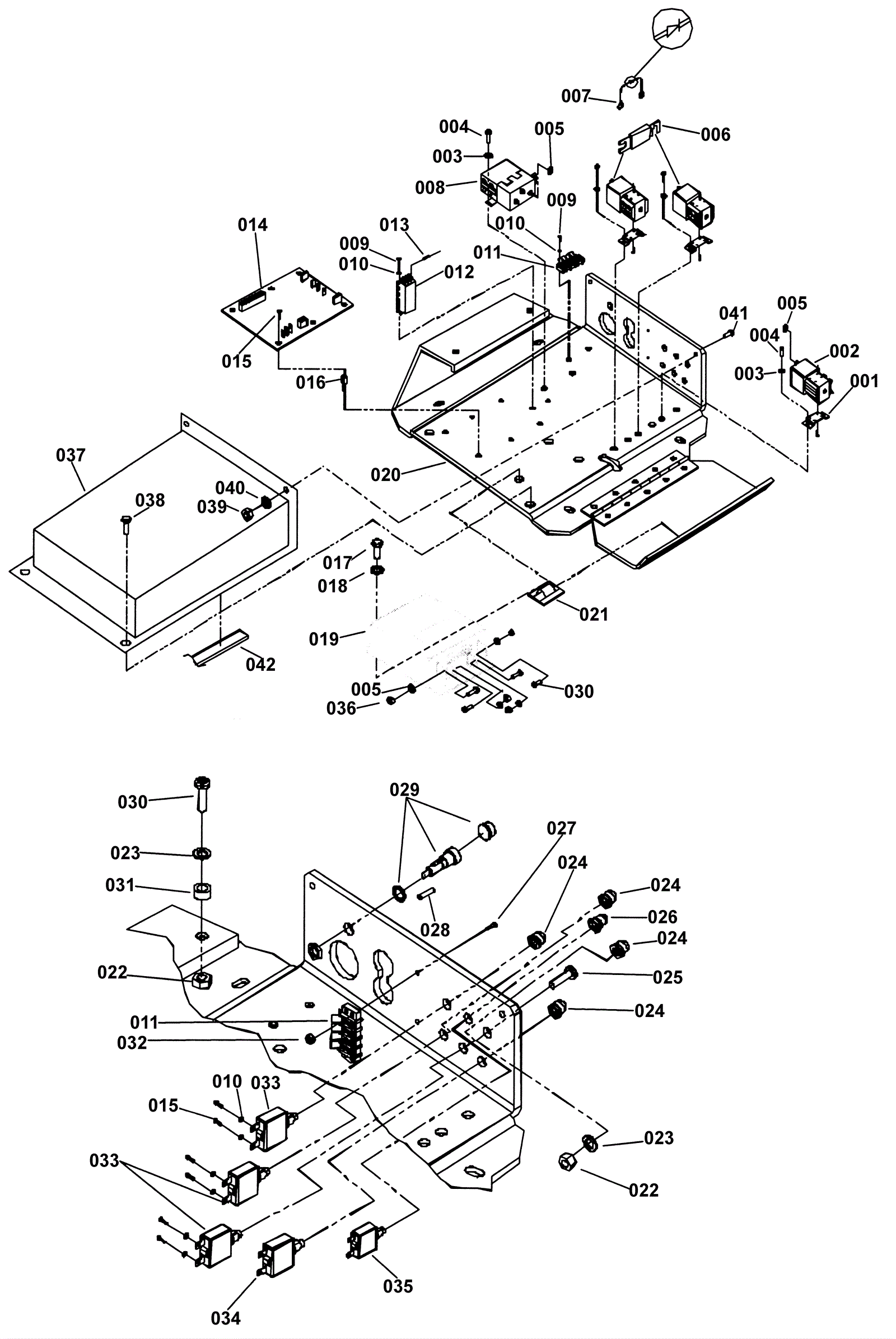

FLEX CAT2 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-3547 Contractor mount (OBSOLETE) $24.51 3 usually ships 1-5 days
002 173-3548 Contractor $365.20 3 usually ships 1-5 days
003 999-0311 Washer #10 external star lock zinc plated $0.99 8 ships same day
004 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel $0.99 8 ships same day
005 999-0028 Washer 5/16 split lock plain finish $0.99 13 ships same day
006 173-3549 125amp fuse $96.80 1 usually ships 14-22 days
007 189-0372 Diode assembly $148.58 1 usually ships 14-27 days
008 173-3552 Forward/reverse contractor (OBSOLETE) $470.12 1 usually ships 1-5 days
009 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 4 ships same day
010 999-0051 Washer #6 medium split lock $0.99 4 ships same day
011 173-1790 Strip 8 position terminal $8.58 2 usually ships 1-5 days
012 173-8697 Relay $114.40 1 usually ships 14-22 days
013 173-8698 Resistor assembly $20.57 1 usually ships 1-5 days
014 173-8699 Control board secondary $624.80 1 usually ships 1-5 days
015 199-0418 1 1/2 inch blower kit with felt and horse hair brushes $224.85 12 usually ships 1-5 days
016 173-8700 Standoff 6-32 X 3/8 hex (OBSOLETE) $4.74 6 usually ships 1-5 days
017 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 3 ships same day
018 999-1049 Washer 1/4 split lock zinc plated $0.99 3 ships same day
019 173-3546 Speed controller $1,102.20 1 usually ships 1-5 days
020 173-8701 Seat mount (OBSOLETE) $360.26 1 usually ships 1-5 days
021 173-3705 Self adhesive clip (OBSOLETE) $5.23 1 usually ships 1-5 days
022 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 3 ships same day
023 173-3912 Washer .344 x .066 flat head (OBSOLETE) $0.99 3 usually ships 14-22 days
024a 173-1522 3/8 inch circuit breaker boot $25.30 4 ships same day
024b 991-5157 3/8 inch circuit breaker boot $2.11 4 (NON-OEM) ships same day
025 173-3984 Screw 5/16-18 x 1/2 phillips truss head machine $5.50 1 usually ships 1-5 days
026 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 14-27 days
027 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
028 173-3212 8A fuse $7.21 1 usually ships 1-5 days
029 173-3210 Fuseholder $22.99 1 usually ships 1-5 days
030 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 6 ships same day
031 173-3703 Rubber bumper $18.04 2 usually ships 1-5 days
032 173-5037 Nut 6-32 elastic stop (OBSOLETE) $1.25 2 usually ships 14-22 days
033 991-1632 25amp circuit breaker $7.91 3 ships same day
034 173-3492 10A circuit breaker $36.52 1 usually ships 1-5 days
035 173-2271 8amp circuit breaker $69.30 1 usually ships 14-22 days
036 999-0069 Nut 5/16-18 hex $0.99 4 ships same day
037 173-8702 Electronics cover (OBSOLETE) $95.69 1 usually ships 1-5 days
038 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 2 ships same day
039 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
040 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
041 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
042 173-8703 Gasket 1/8 X 3/8 foam (OBSOLETE) $5.30 usually ships 1-5 days
