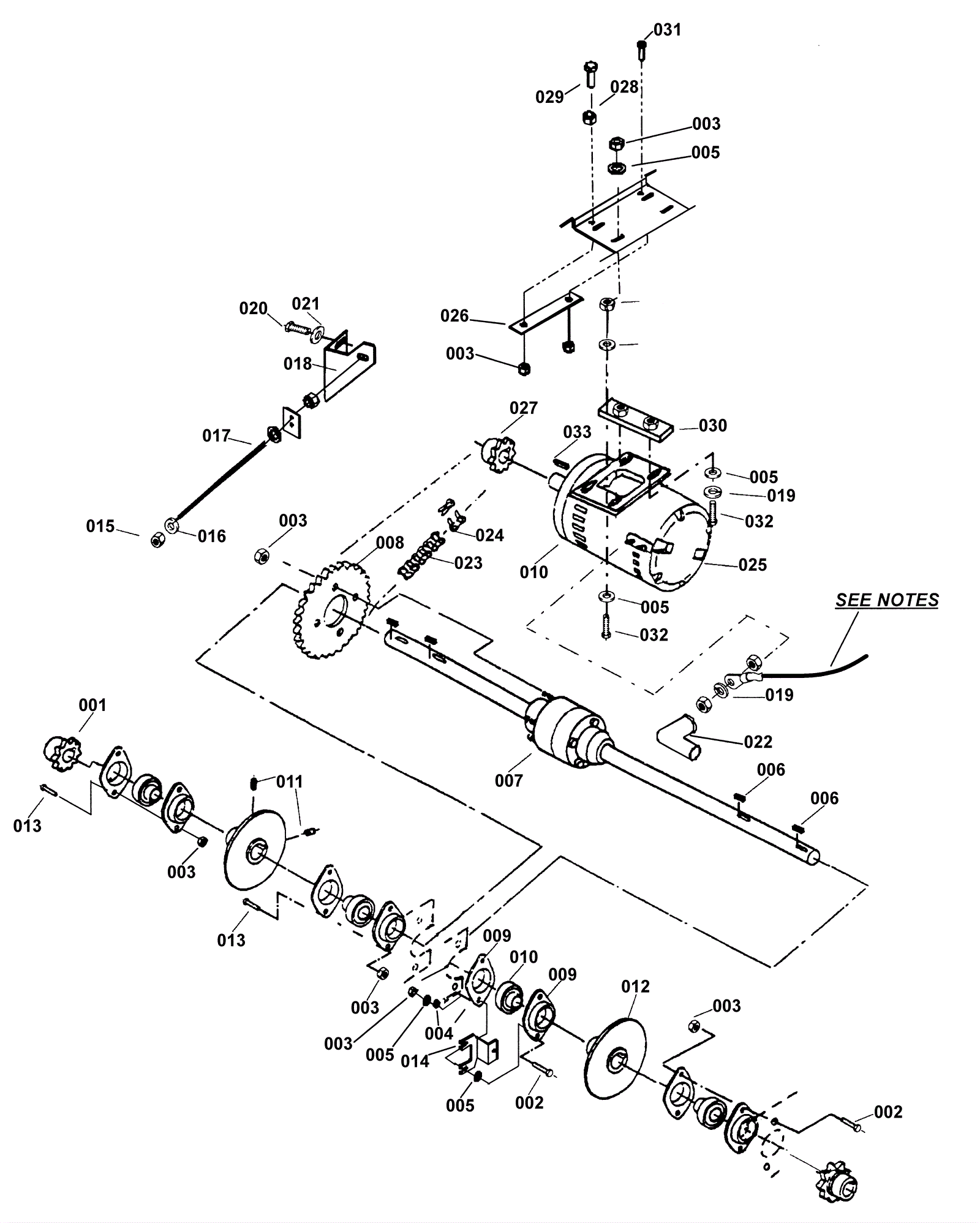

FLEX CAT2 Differential Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-3289 Sprocket $54.34 2 usually ships 1-5 days
002 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 6 ships same day
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 16 ships same day
004 999-0430 Nut 5/16-18 hex jam plain finish $0.99 2 ships same day
005 173-3912 Washer .344 x .066 flat head (OBSOLETE) $0.99 10 usually ships 14-22 days
006 173-1856 Square keyway $3.75 4 usually ships 14-22 days
007 173-3535 Flex differential $202.40 1 usually ships 1-5 days
008 173-3534 36 tooth sprocket $96.80 1 usually ships 1-5 days
009 173-3536 Flanged bearing $13.42 8 usually ships 14-22 days
010 173-3444 Ball bearing $95.70 4 usually ships 1-5 days
011 999-1051 Screw 1/4-28 x 1/4 knurled point socket set plain finish $0.99 4 usually ships 1-5 days
012 173-3537 Brake disc $297.00 2 usually ships 1-5 days
013 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
014 173-3598 Guard harness plate $62.15 1 usually ships 1-5 days
015 999-0881 Nut 1/2-13 jam $0.99 4 usually ships 1-5 days
016 173-3974 Washer 53/100 ID X 1 OD X 3/50 $2.44 4 usually ships 1-5 days
017 173-3542 Motor position rod $29.76 1 usually ships 1-5 days
018 173-3539 Motor position angle $90.75 1 usually ships 1-5 days
019 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
020 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
021 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
022 173-3311 Insulated rubber terminal boot $3.70 4 usually ships 14-22 days
023 173-3533 Chain $152.90 1 usually ships 1-5 days
024 173-3303 Lambda m-link chain $25.08 1 usually ships 1-5 days
025 173-3532 Drive motor (OBSOLETE) $2,536.44 1 usually ships 1-5 days
026 173-3587 Motor locator bar $20.57 1 usually ships 1-5 days
027 173-3443 Sprocket $54.34 1 usually ships 1-5 days
028 999-0069 Nut 5/16-18 hex $0.99 1 ships same day
029 173-8463 Screw 5/16 - 18 x 2 hex head cap plated $1.74 1 usually ships 14-22 days
030 173-3541 Retaining bar $36.52 1 usually ships 1-5 days
031 999-0225 Screw 5/16-18 x 1 button head socket plain finish $0.99 1 ships same day
033 173-3540 Square key $51.81 1 usually ships 1-5 days
