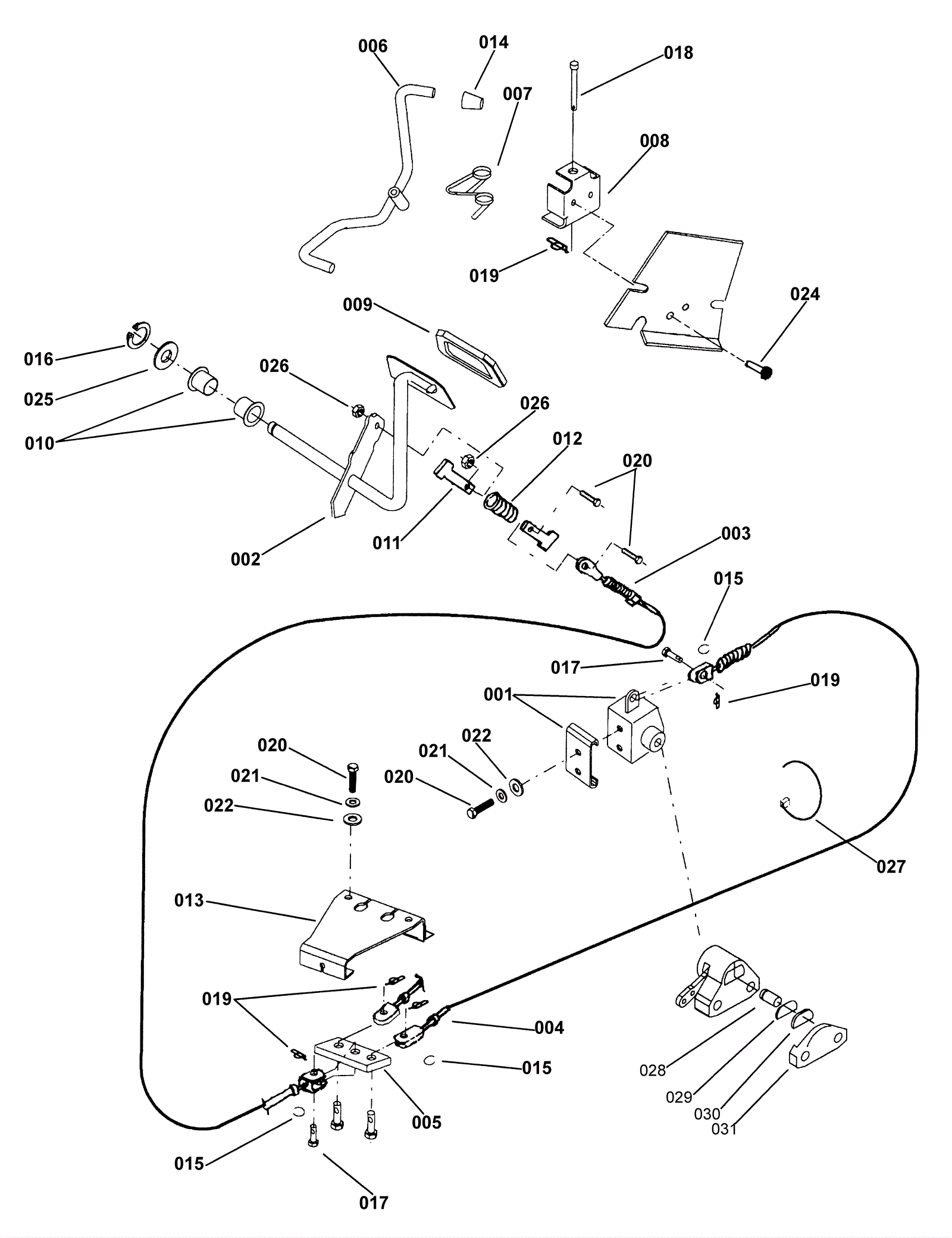

FLEX CAT2 Brake Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-3471 Brake caliper $203.91 2 usually ships 1-5 days
002 173-3476 Brake pedal weldment $146.30 1 usually ships 1-5 days
003 173-3477 Front brake cable $81.95 1 usually ships 1-5 days
004 173-3481 Rear brake cable $64.35 2 usually ships 1-5 days
005 173-3482 Equalizer bar $14.63 1 usually ships 1-5 days
006 173-3478 Parking brake weldment $137.78 1 usually ships 1-5 days
007 173-3479 Torsion spring $27.56 1 usually ships 1-5 days
008 173-3480 Parking brake channel (OBSOLETE) $23.05 1 usually ships 1-5 days
009 173-3218 Brake pedal pad $31.13 1 usually ships 1-5 days
010 173-3220 Bushing $7.54 2 usually ships 1-5 days
011 173-3483 Spring retainer plate $13.97 2 usually ships 1-5 days
012 173-3221 compression spring $17.08 1 usually ships 1-5 days
013 173-8691 Channel cable mount $127.60 1 usually ships 1-5 days
014 173-3485 Rod end cap $1.10 1 usually ships 1-5 days
015 173-8224 1/4 clip ring $0.99 5 usually ships 14-22 days
016 173-3486 Snap ring $4.16 1 usually ships 14-22 days
017 173-3153 Clevis pin $6.38 5 usually ships 14-22 days
018 173-3487 Clevis pin $1.91 1 usually ships 1-5 days
019 173-1130 Cotter ring $2.42 6 ships same day
020 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
021 999-1049 Washer 1/4 split lock zinc plated $0.99 6 ships same day
022 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
024 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 2 ships same day
025 173-3974 Washer 53/100 ID X 1 OD X 3/50 $2.44 1 usually ships 1-5 days
026 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
027 173-3169 Wire tie $1.03 3 usually ships 1-5 days
028 173-3472 Pin caliper actuator $15.73 1 usually ships 1-5 days
029 173-3473 Caliper backing plate $15.29 1 usually ships 1-5 days
030 173-3474 Caliper puck $38.61 1 usually ships 1-5 days
031 173-3475 Anvil subassembly caliper $72.05 1 usually ships 1-5 days
