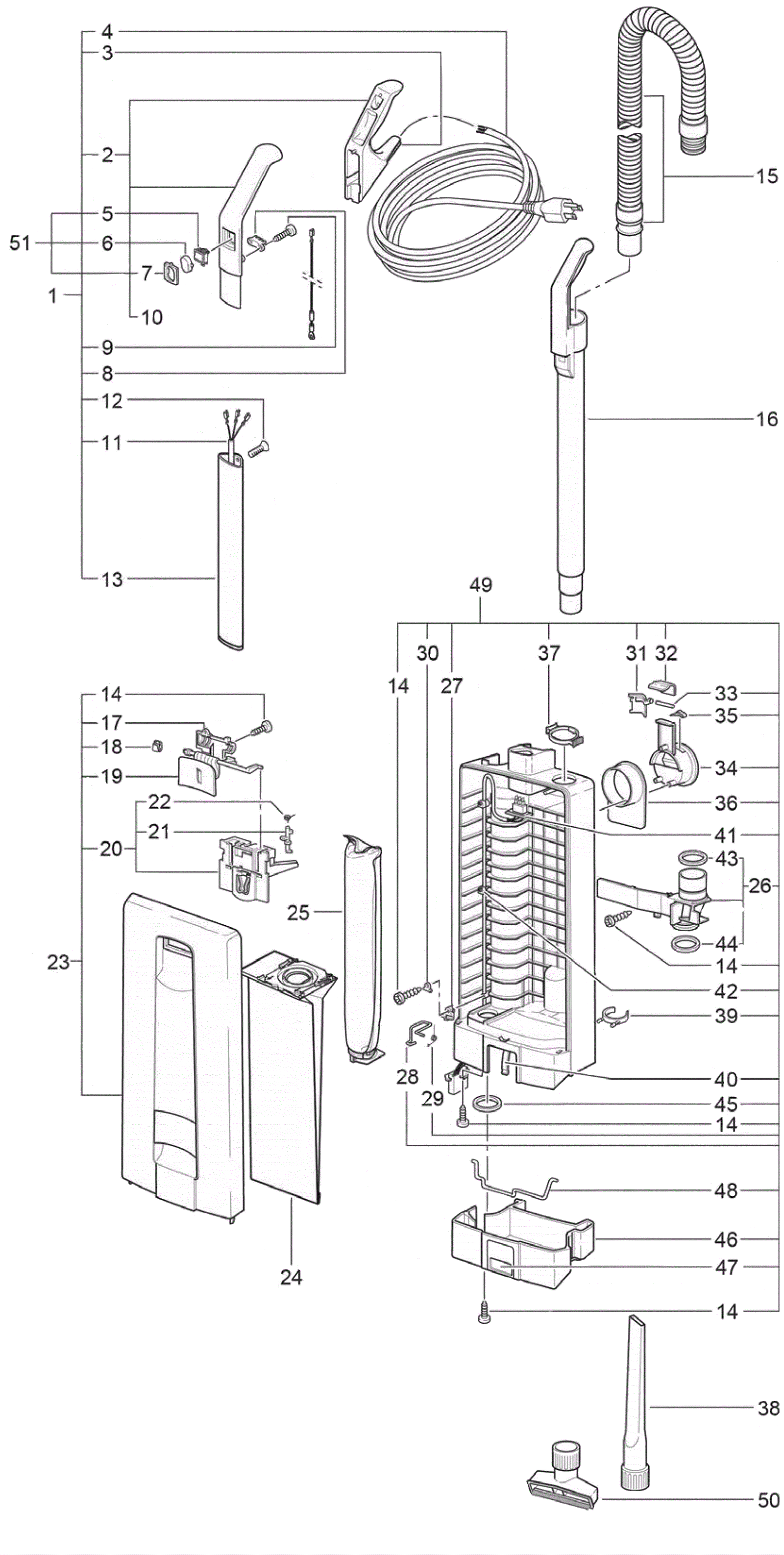

SENSOR S15 Upper Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7619 Complete handle (black/yellow) $218.93 1 (includes 2-13) ships same day
2 273-7618 Handle grip (black) $94.60 1 (includes 10) usually ships 14-22 days
3 173-6339 Grommet (black) $7.37 1 ships same day
4a 273-3554 18/3 power cord 40 foot (yellow) $41.67 1 (OEM) ships same day
4b 991-5008 18/3 replacement power cord 50 foot (beige) $43.29 1 (non-OEM) ships same day
4c 991-5100 18/3 power cord 40 foot (blue) $37.63 1 (NON-OEM) ships same day
4d 991-5007 18/3 replacement power cord 50 foot (black) $32.10 1 (NON-OEM) ships same day
5 273-3549 Switch $99.55 1 ships same day
6 173-6340 Switch cap (yellow) $9.63 1 usually ships 14-22 days
7 173-6341 Switch cap holder (black) $11.33 1 usually ships 14-22 days
8 173-2354 Cable clamp $3.03 1 ships same day
9 173-0135 Screw M3-.5 x 16mm $0.99 1 ships same day
10 173-2355 Antistatic wire $19.58 1 usually ships 14-22 days
11 173-2356 Interconnect cord $40.37 1 ships same day
12 173-2457 Screw M4 x 12mm $1.64 1 usually ships 14-22 days
13 173-2357 Handle tube weldment $53.79 1 ships same day
14 173-0007 Screw M3-.5 x 13mm $1.91 5 ships same day
15 173-0205 Hose $94.05 1 ships same day
16 173-6342 Extension tube (black) $84.71 1 ships same day
17 173-6343 Cover (gray) $20.35 1 usually ships 14-22 days
18 173-2359 Bag holder spring $4.07 1 ships same day
19a 173-6344 Cover release (yellow) $23.54 1 ships same day
19b 173-5236 Cover release (blue) $19.58 1 ships same day
20 173-2362 Bag holder $30.58 1 (includes 21-22) ships same day
21 173-2361 Safety catch $4.66 1 usually ships 14-22 days
22 173-0202 Safety catch spring $5.50 1 ships same day
23 173-6345 Front cover (gray) $151.80 1 (includes 14, 17-22) ships same day
24a 173-0096 Versamatic Plus/Sensor paper bags (pkg of 10) $42.79 1 (OEM) ships same day
24b 991-9005 Paper vacuum bags (pkg of 10) Versamatic Plus/Sensor $12.25 1 (non-OEM) ships same day
24c 991-9150 Paper vacuum bags Sensor/VSP (pkg of 10) $11.54 1 (NON-OEM) usually ships 14-21 days
25a 173-0102 HEPA filter $23.56 1 (OEM) ships same day
25b 991-9006 HEPA filter $5.88 1 (NON-OEM) ships same day
25c 991-9152 Micro-hygiene filter $6.52 1 (NON-OEM) usually ships 14-21 days
26 173-6346 Internal cover (gray) $35.97 1 (includes 43-44) usually ships 14-22 days
27 173-2367 Cable clamp $7.32 1 usually ships 14-22 days
28 173-2365 Filter safety catch $12.21 1 usually ships 14-22 days
29 173-2366 Torsion spring $5.39 1 ships same day
30 173-0048 Clamp $3.39 1 usually ships 14-22 days
31 173-2370 Handle locking plate $12.21 1 ships same day
32 173-6347 Lock catch $12.54 1 ships same day
33 173-2371 Locking pin $2.66 1 ships same day
34 173-6348 Carrying handle $21.89 1 ships same day
35 173-0170 Spring stop $4.48 1 usually ships 14-22 days
36 173-6349 Cable hook $21.12 1 ships same day
37a 173-6350 Retaining ring (10 pack) $30.47 1 ships same day
37b 273-8764 Karcher gray retaining ring $1.91 1 ships same day
38 173-7532 Crevice tool (black) $44.55 1 usually ships 14-22 days
39 173-6351 Dust bag clip $14.19 1 usually ships 14-22 days
40 173-2379 Locking rod spring $5.39 1 ships same day
41 173-2375 Internal cable $44.42 1 ships same day
42 173-2376 Cord clamp $4.11 1 usually ships 14-22 days
43 173-6352 Seal $12.54 1 usually ships 14-22 days
44 173-0162 Seal $12.87 1 usually ships 14-22 days
45 173-2381 Seal $6.44 1 usually ships 14-22 days
46 173-6353 Dust bag bumper base $35.64 1 usually ships 14-22 days
47 173-6354 Locking latch $13.20 1 usually ships 14-22 days
48 173-5234 Locking rod $20.90 1 usually ships 14-22 days
49 173-6355 Dust bag housing $214.93 1 (includes 14, 26-37, 39-48) usually ships 14-22 days
50 273-1401 Dust bag housing bumper (black) $48.95 1 usually ships 14-22 days
51 173-6356 Switch $72.60 1 (includes 5-7) ships same day
