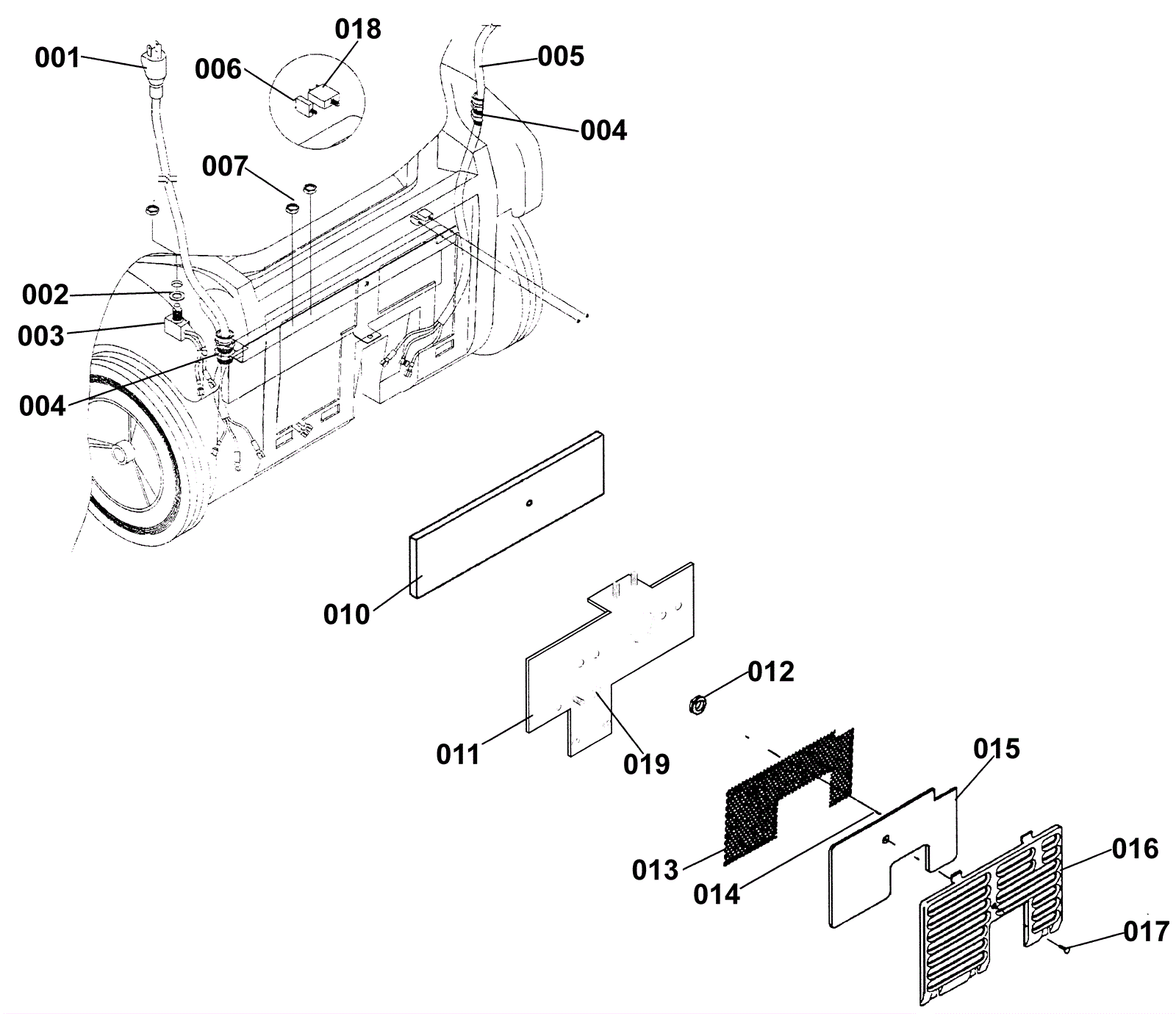

WAVE Electrical Panel and Cover Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-8427 115V Cord assembly $304.70 1 usually ships 14-22 days
002 173-2499 Washer 1/2 External Star $1.19 1 usually ships 1-5 days
003 173-8428 Main switch/breaker wire assembly $203.91 1 usually ships 14-22 days
004 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.90 2 usually ships 14-22 days
005 173-8429 Brush/handle switch wire assembly $172.70 1 usually ships 1-5 days
006 173-9970 13 Amp circuit breaker (OBSOLETE) $80.30 1 usually ships 14-22 days
010 173-4147 Foam sound filter $24.97 1 usually ships 14-22 days
011 173-8430 Electrical panel $113.30 1 usually ships 1-5 days
012 173-0426 Grommet 3/4 x 1.38 $10.56 1 usually ships 1-5 days
013 173-4145 Exhaust screen $20.68 1 usually ships 14-22 days
014 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 8 ships same day
015 173-4145 Exhaust screen $20.68 1 usually ships 14-22 days
016 273-3883 Rear cover $311.30 1 usually ships 14-22 days
017 173-8431 Screw 1/4-20 x 1 black thumb $9.35 1 usually ships 1-5 days
018 173-7523 3 Amp circuit breaker $82.50 1 ships same day
019 173-2188 Ground symbol decal $4.66 1 usually ships 1-5 days
