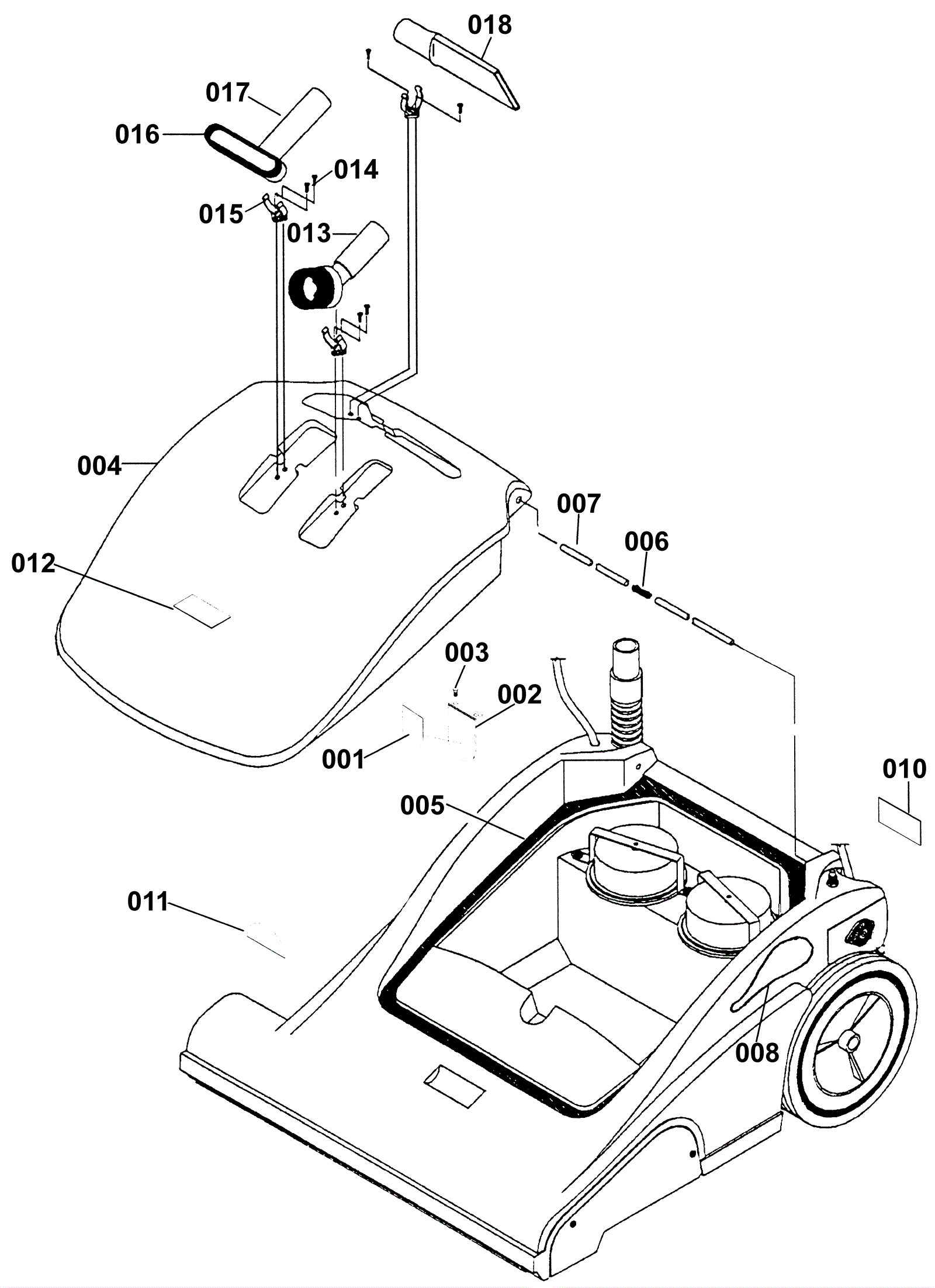

WAVE Lid and Decal Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-4141 Accessory port gasket $8.47 1 ships same day
002 189-4204 Accessory port cover $117.73 1 usually ships 14-27 days
003 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 2 ships same day
004 173-8419 Lid $430.10 1 usually ships 1-5 days
005 173-8420 Foam gasket $22.22 2 usually ships 14-22 days
006 173-8421 Spring $14.74 1 usually ships 1-5 days
007 173-8422 Pin 1/4 x 3/4 inch $17.93 2 usually ships 14-22 days
008 173-8423 Right logo label $15.73 1 usually ships 1-5 days
009 173-8424 Left logo label $7.92 1 usually ships 1-5 days
010 173-1282 For safety decal $9.63 1 usually ships 1-5 days
011 173-8425 Brush height adjustment label $22.66 1 usually ships 1-5 days
012 173-8426 Logo label $15.68 1 usually ships 1-5 days
013a 173-0329 3 inch brush tool $41.58 1 usually ships 14-22 days
013b 991-3087 3 inch dust brush with reducer $7.44 1 (NON-OEM) usually ships 14-21 days
014 173-3889 Screw 10 x 3/8 pan head hi/lo $1.58 6 ships same day
015 173-9990 Clip $29.81 3 usually ships 14-22 days
016 173-0328 5 inch brush head $29.15 2 usually ships 14-22 days
017a 173-0327 5 inch upholstery tool $55.56 1 usually ships 14-22 days
017b 991-3085 Upholstery tool $10.06 1 (NON-OEM) usually ships 14-21 days
018 173-9991 Crevice nozzle $16.39 1 usually ships 14-22 days
