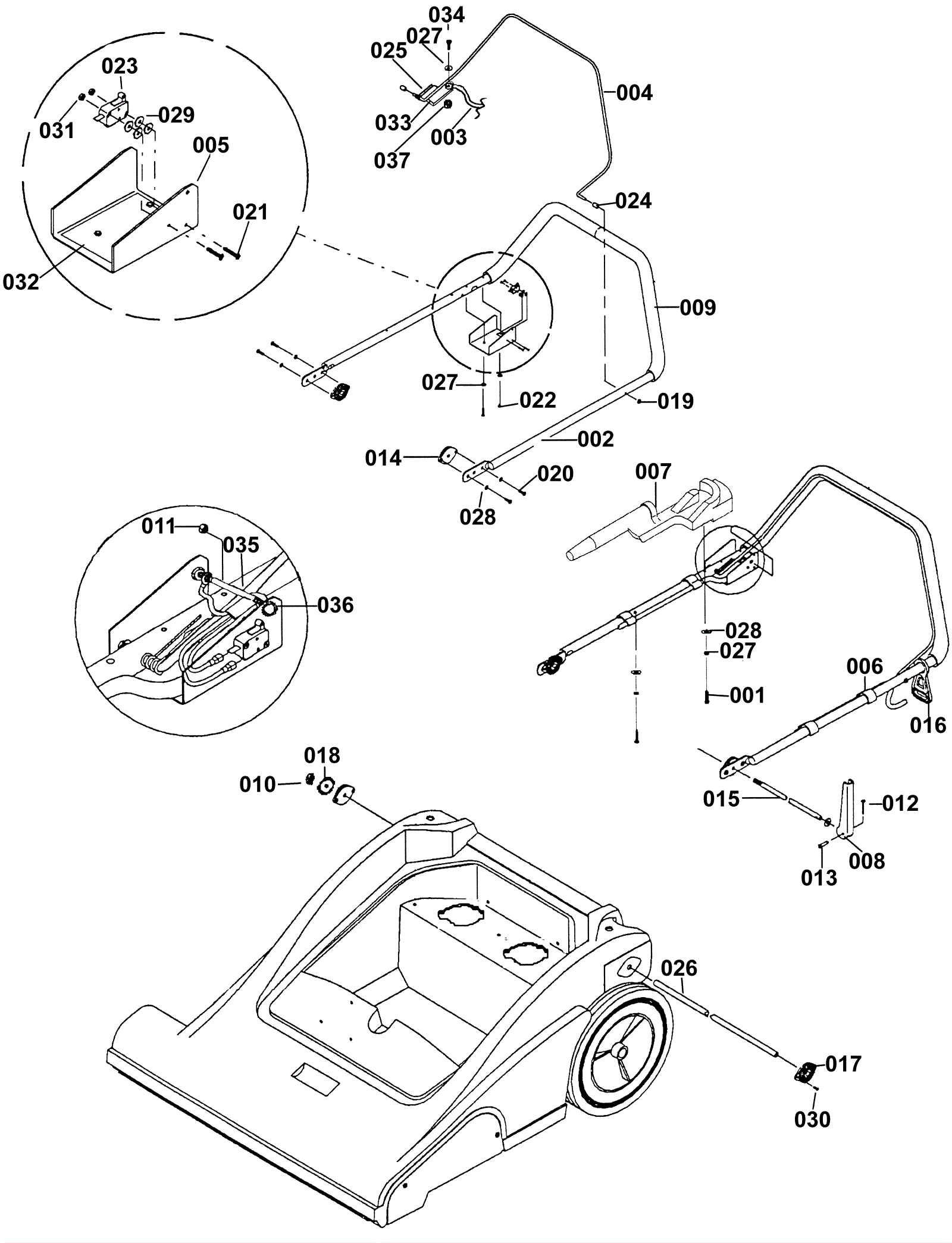

WAVE Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-1138 10-32 x 1.25 PHMS (OBSOLETE) $1.39 1 usually ships 14-22 days
002 173-8406 Main handle (OBSOLETE) $114.20 1 usually ships 1-5 days
003 173-8407 6 Inch ground wire $11.77 1 usually ships 1-5 days
004 173-8408 Brush switch bar assembly (OBSOLETE) $172.70 1 usually ships 14-22 days
005 173-8409 Switch mounting bracket $79.75 1 usually ships 1-5 days
006 173-2077 Power cord clip $1.69 4 usually ships 14-22 days
007 173-8410 Wand holster $143.00 1 usually ships 14-22 days
008 173-0418 Handle locking lever $31.90 1 usually ships 14-22 days
009 173-8411 17 Inch adjustable handle grip $29.59 2 usually ships 1-5 days
010 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
011 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 1 ships same day
012 173-1130 Cotter ring $2.42 1 ships same day
013 173-0419 Clevis pin $8.47 1 usually ships 14-22 days
014 173-5097 Handle adjustment lock $96.80 2 usually ships 14-22 days
015 173-2343 Vacuum pivot rod $85.80 1 usually ships 1-5 days
017 173-8412 Handle lock $125.40 2 usually ships 14-22 days
018 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
019 173-8413 Nut 1/4 cap $0.99 2 ships same day
020 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 4 ships same day
021 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
023 189-0305 Microswitch $123.95 1 usually ships 14-22 days
024 173-1049 .5 OD x .28 ID x .38 Lnyl Spacer $1.21 2 usually ships 1-5 days
025 173-8414 Torsion spring (OBSOLETE) $28.16 1 usually ships 14-22 days
026 173-8415 Handle adjustment tube $51.59 1 usually ships 1-5 days
027 999-0311 Washer #10 external star lock zinc plated $0.99 5 ships same day
028 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
029 173-3904 Washer 1/8 rivet backup $1.40 4 usually ships 1-5 days
030 999-0437 Screw 8-32 x 1/2 flat head phillips zinc plated $0.99 4 ships same day
031 173-2579 Nut 4-40 hex star lock $0.99 2 usually ships 1-5 days
032 173-8416 Switch box insulator plate (OBSOLETE) $11.88 1 usually ships 14-22 days
033 173-5114 Scrub deck TC17 (OBSOLETE) $176.76 1 usually ships 1-5 days
034 173-2508 Screw 10-32 x 3/8 pan head thread rolling $0.99 1 usually ships 1-5 days
035 999-0362 Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
036 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
037 209-0071 Complete ball float assembly (OBSOLETE) $176.00 1 usually ships 17-28 days
