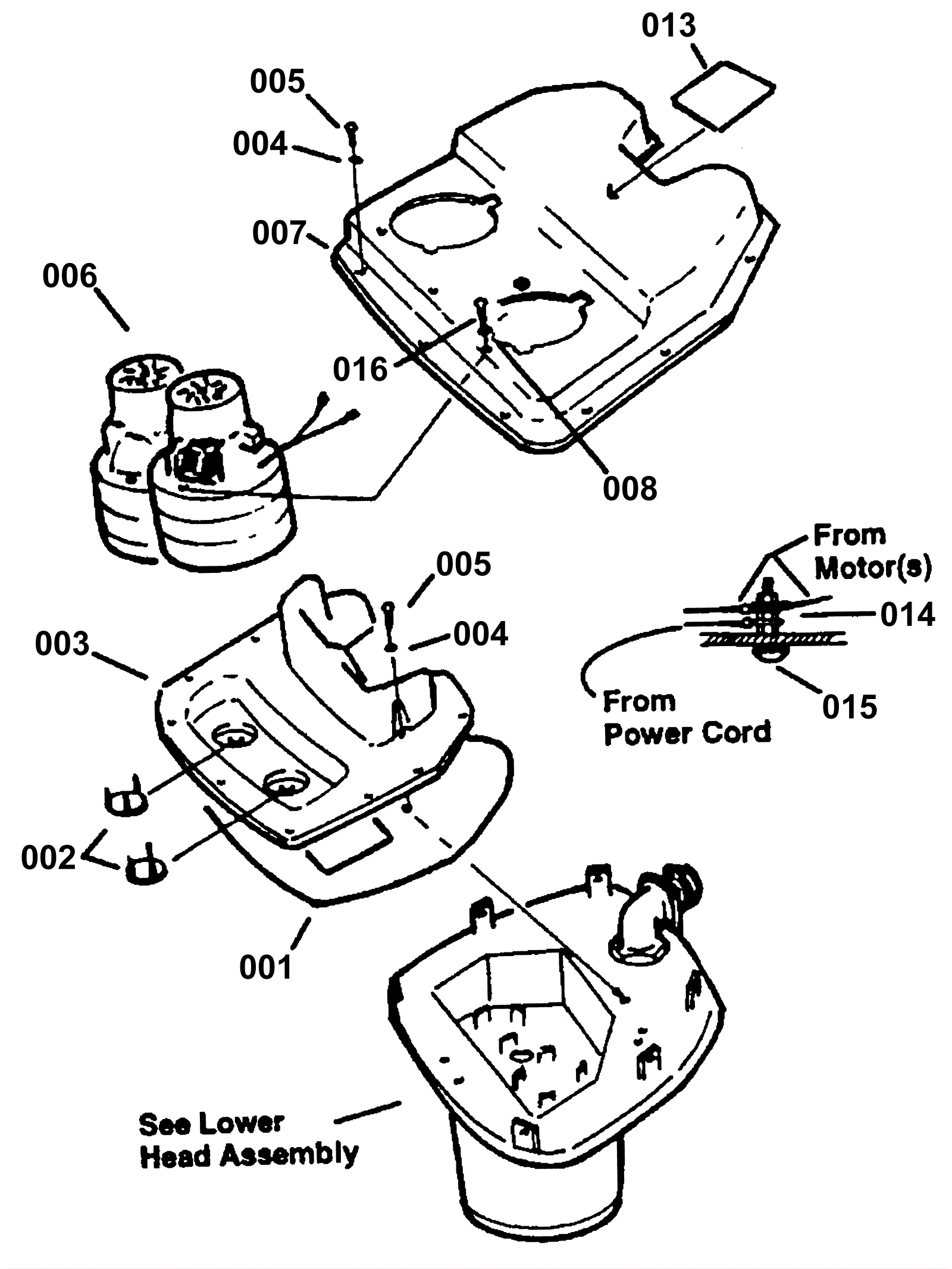

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-0275
|
Support Plate Gasket |
|
|
|
002 |
173-0276
|
Vacuum Shut-Off Disc Plate (OBSOLETE) |
|
|
|
003a |
173-0277
|
Twin Motor Support Plate |
|
|
|
003b |
173-0278
|
Single Motor Support Plate (OBSOLETE) |
|
|
|
005 |
999-0733
|
Screw 8-18 x 3/4 pan head phillips stainless steel |
|
|
|
006a |
173-0279
|
Twin Motor Assembly |
|
|
|
006b |
173-0280
|
Single Motor Assembly |
|
|
|
006c |
173-0281
|
Twin and Single Motor Assembly (OBSOLETE) |
|
|
|
007a |
173-0282
|
Twin Exhaust Chamber |
|
|
|
007b |
173-0283
|
Single Exhaust Chamber (OBSOLETE) |
|
|
|
008 |
999-0006
|
Washer 3/16 flat zinc plated |
|
|
|
013a |
173-0284
|
Twin Wiring Label (OBSOLETE) |
|
|
|
013b |
173-0285
|
Single Wiring Label |
|
|
|
013c |
N/A
|
Not available |
|
(not available) |
|
013d |
173-0287
|
Single Wiring Label 100V (OBSOLETE) |
|
|
|
014 |
173-2472
|
Nut 10-32 with star washer |
|
|
|
016 |
173-2454
|
Screw 10-3/4 polyfast |
|
|
|
