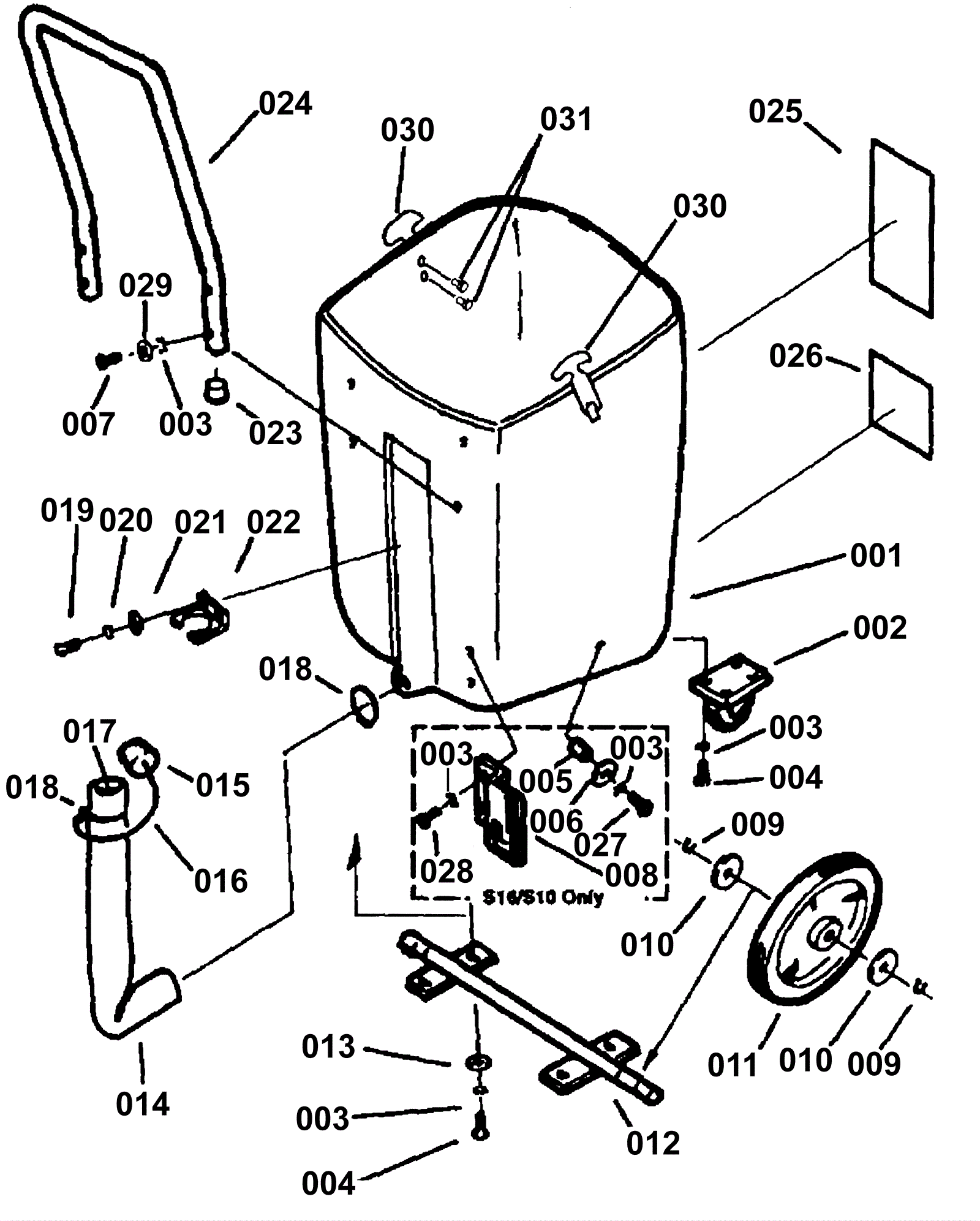

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
173-0258
|
16 gallon tank (OBSOLETE) |
|
|
|
001b |
173-0259
|
10 gallon tank (OBSOLETE) |
|
|
|
002 |
173-0260
|
3 inch swivel caster |
|
|
|
003 |
999-0017
|
Washer 1/4 external star lock |
|
|
|
004 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
|
|
|
005 |
173-0261
|
Squeegee pivot tube |
|
|
|
006 |
999-0016
|
Washer 1/4 flat plain finish |
|
|
|
008 |
173-0262
|
Squeegee lock plate |
|
|
|
009 |
173-0263
|
5/8 external snap ring |
|
|
|
010 |
173-0349
|
Label (OBSOLETE) |
|
|
|
011 |
173-0264
|
8 inch diameter wheel with 0.62 bore |
|
|
|
012a |
173-0265
|
Axle assembly for 16 gallon tank (OBSOLETE) |
|
|
|
012b |
173-0266
|
Axle assembly for 10 gallon tank (OBSOLETE) |
|
|
|
013 |
173-2483
|
Washer 1/4ID x 3/4OD plated |
|
|
|
014a |
173-0267
|
1.5 drain hose (20 inches) |
|
|
|
014b |
173-0268
|
1.5 drain hose (14.5 inches) |
|
|
|
015 |
173-2107
|
Plug |
|
|
|
016 |
173-0269
|
drain plug cord assembly |
|
|
|
017 |
189-4130
|
1/2 inch hosebarb |
|
|
|
018 |
189-4122
|
Hose clamp |
|
|
|
019 |
999-0452
|
Screw 8-32 x 3/8 pan head phillips zinc plated |
|
|
|
022 |
173-3007
|
drain hose bracket (OBSOLETE) |
|
|
|
023 |
173-0226
|
7/16 dress plug |
|
|
|
024a |
173-0271
|
16 gallon handle (OBSOLETE) |
|
|
|
024b |
173-0272
|
10 gallon handle (OBSOLETE) |
|
|
|
025 |
173-0273
|
Main Tank Label |
|
|
|
026 |
173-0274
|
Super Gulp Label (OBSOLETE) |
|
|
|
027 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
|
|
|
029 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
|
|
|
030 |
173-1212
|
flexible draw latch set |
|
|
|
031 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
|
|
|
