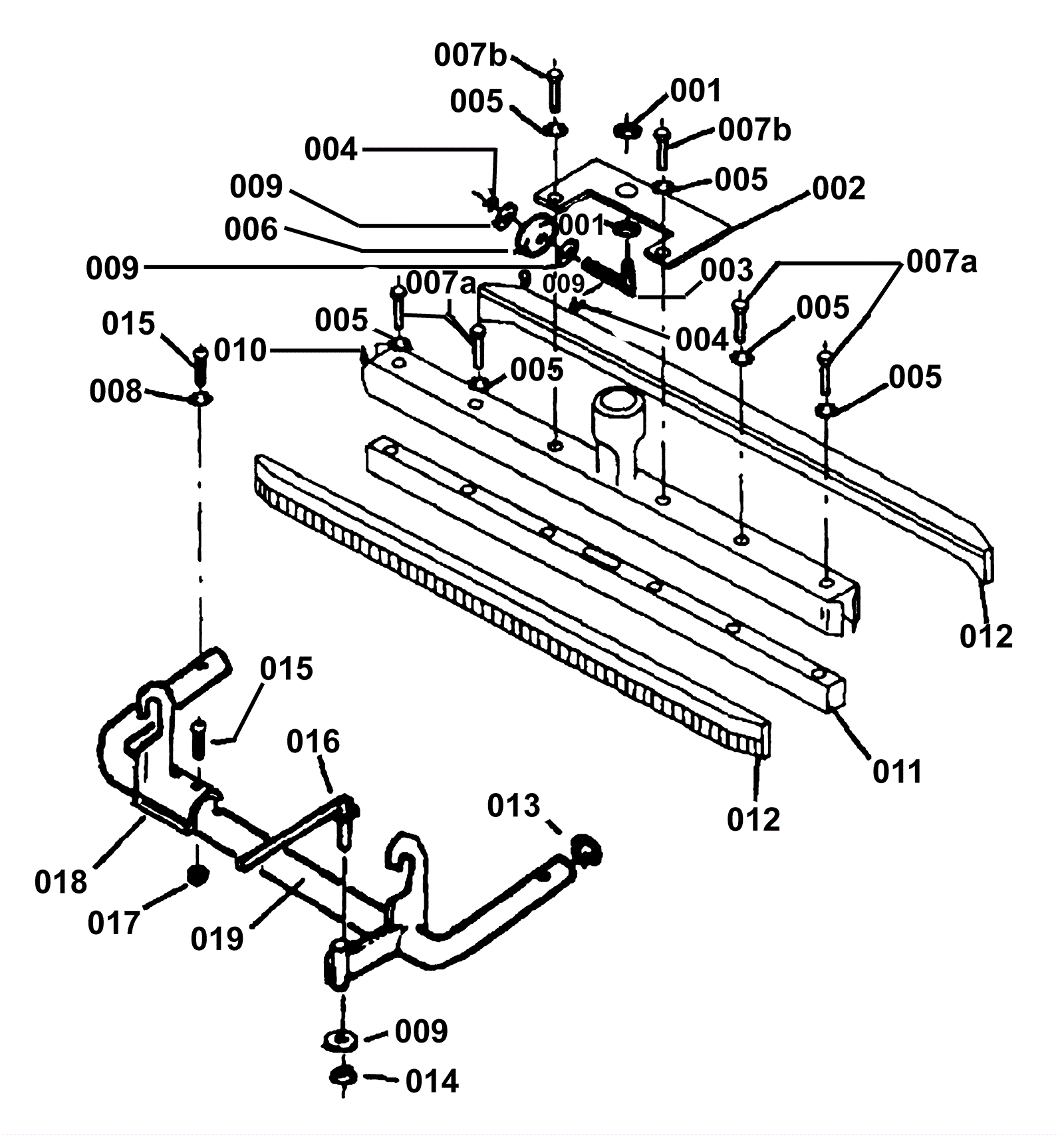

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-2465
|
Nut 5/16 external snap (OBSOLETE) |
|
|
|
002 |
173-0230
|
Squeegee reverse wheel bracket |
|
|
|
003 |
173-3026
|
Squeegee wheel pin |
|
|
|
004 |
173-3027
|
5/16 external snap ring |
|
|
|
005 |
999-1144
|
Washer 3/8 external star lock stainless steel |
|
|
|
006 |
173-3028
|
Roller wheel |
|
|
|
007a |
173-2467
|
Screw 3/8-16 x 1/2 hex head machine |
|
|
|
007b |
173-2468
|
Screw 3/8-16 x 5/8 hex head machine |
|
|
|
008 |
999-0311
|
Washer #10 external star lock zinc plated |
|
|
|
009 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
|
|
|
010 |
173-0223
|
Squeegee shoe assembly outer |
|
|
|
011 |
173-0224
|
Squeegee shoe assembly inner 24 inch |
|
|
|
012 |
173-0225
|
Squeegee blade 27 inch maize (OBSOLETE) |
|
|
|
013 |
173-0226
|
7/16 dress plug |
|
|
|
014 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
|
|
|
015 |
999-0359
|
Screw 10-32 x 1 1/4 pan head phillips zinc plated |
|
|
|
016 |
173-0227
|
Squeegee lever |
|
|
|
017 |
173-2472
|
Nut 10-32 with star washer |
|
|
|
018 |
173-0228
|
Squeegee pivot plate |
|
|
|
019 |
173-0229
|
Squeegee frame assembly |
|
|
|
