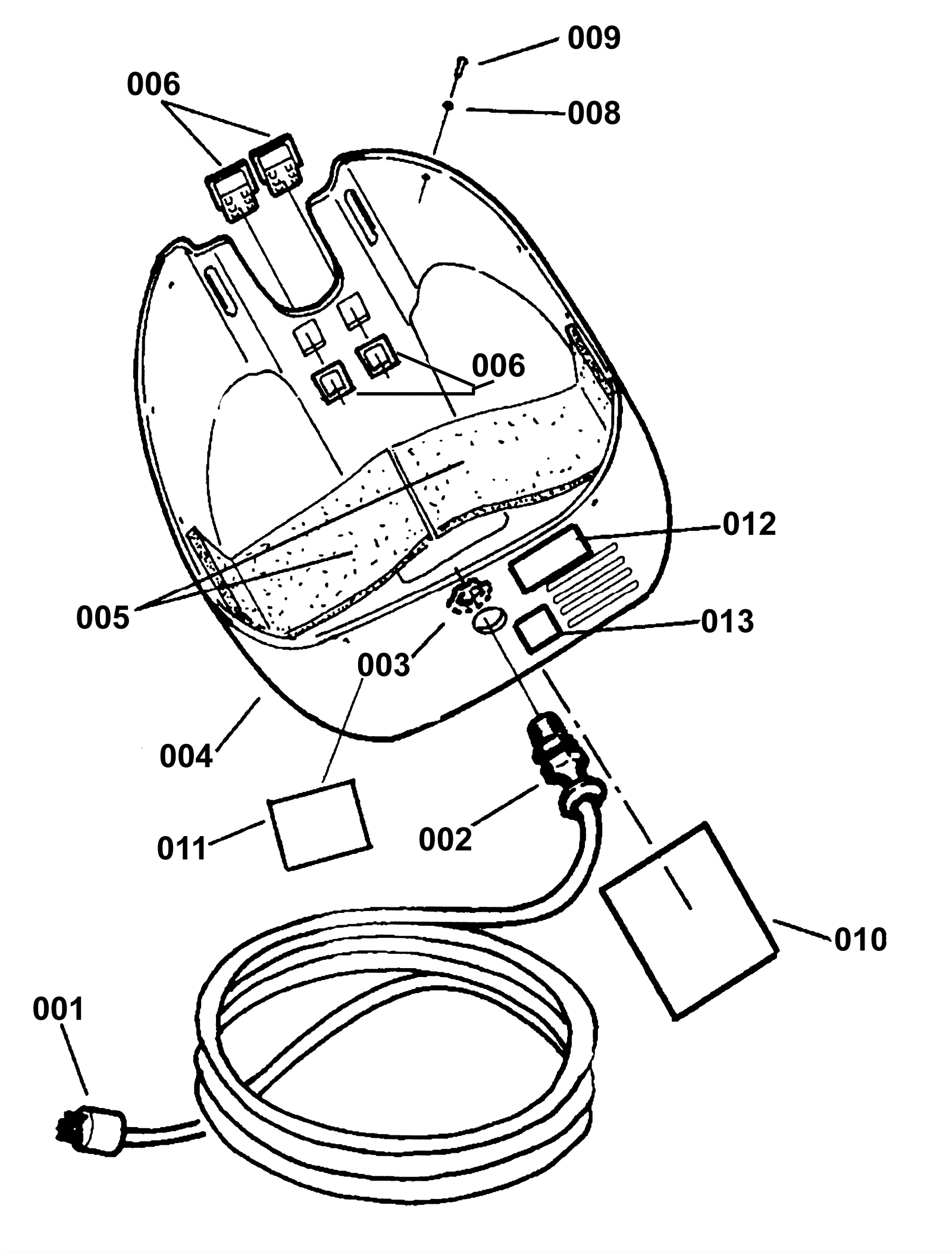

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
173-2060
|
cord end |
|
|
|
001b |
203-0281
|
16/3 power cord 27 foot |
|
|
|
002 |
173-0682
|
Strain relief (OBSOLETE) |
|
|
|
003 |
173-2478
|
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
|
|
|
004a |
173-0244
|
standard single cover |
|
|
|
004b |
173-0245
|
twin only cover |
|
|
|
005 |
173-0246
|
cover foam (OBSOLETE) |
|
|
|
006a |
173-0247
|
16 rocker switch (OBSOLETE) |
|
|
|
006b |
173-0248
|
16 rocker switch (singles and 1 twins) |
|
|
|
006c |
173-2084
|
Switch retaining clip |
|
|
|
008 |
999-0006
|
Washer 3/16 flat zinc plated |
|
|
|
009 |
999-0269
|
Screw 10-24 x 5/8 pan head phillips zinc plated |
|
|
|
010a |
173-0249
|
twin label (OBSOLETE) |
|
|
|
010b |
173-0250
|
single label |
|
|
|
011a |
173-0251
|
warning label |
|
|
|
011b |
173-0252
|
warning caution lable (Japan) (OBSOLETE) |
|
|
|
012 |
173-0253
|
Warning explosion decal |
|
|
|
013 |
173-1282
|
For safety decal |
|
|
|
N/S |
173-0256
|
cord assembly (OBSOLETE) |
|
|
|
N/S |
173-0254
|
cord assembly |
|
|
|
N/S |
173-0255
|
cord assembly (OBSOLETE) |
|
|
|
N/S |
173-0257
|
cord assembly (OBSOLETE) |
|
|
|
