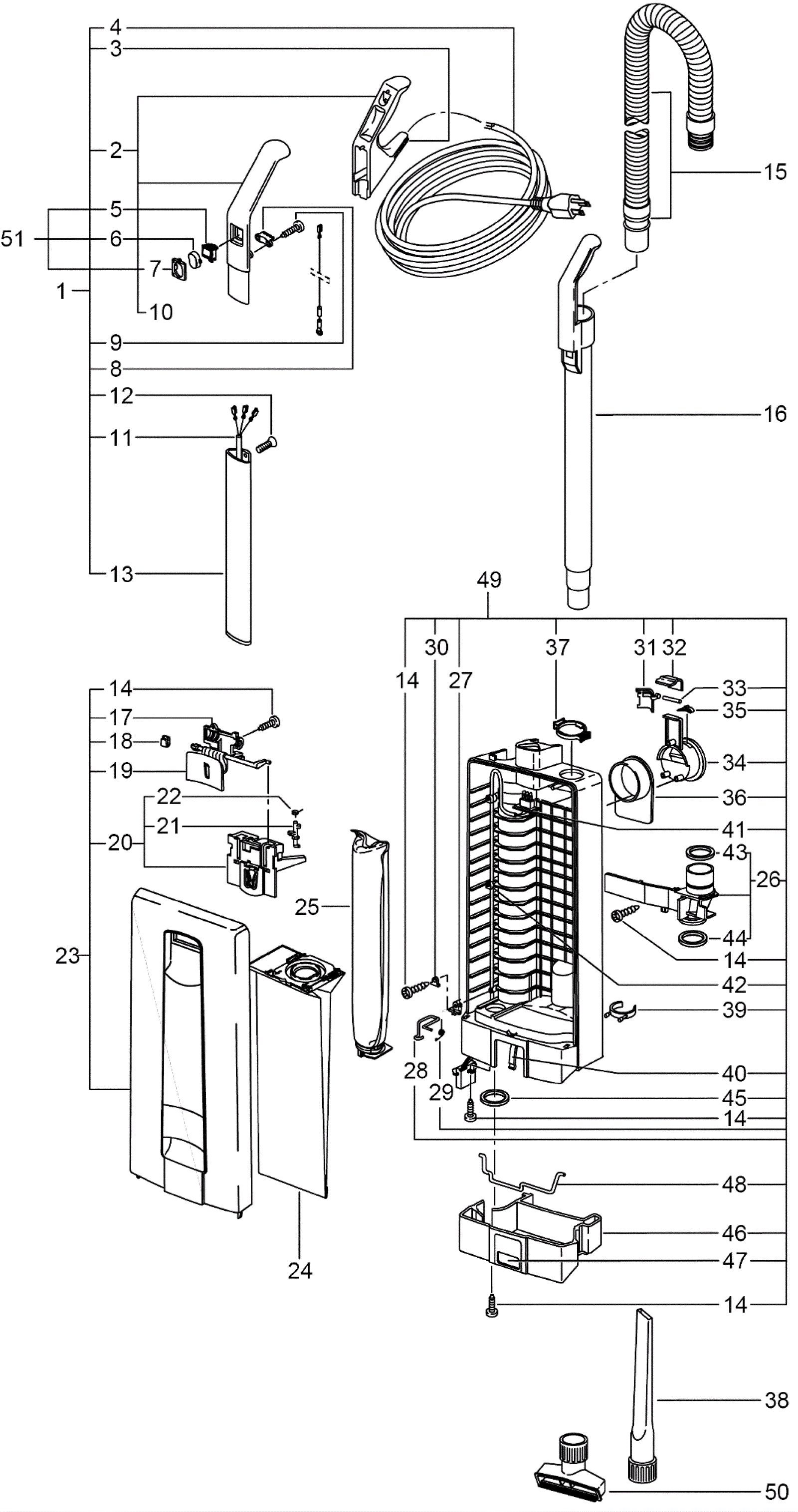

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
173-2349
|
Handle assembly |
1 |
(includes 002-014) |
|
001b |
273-7619
|
Complete handle (black/yellow) |
1 |
(includes 002-014) |
|
002a |
173-2350
|
Handle grip (gray) |
1 |
|
|
002b |
273-7618
|
Handle grip (black) |
1 |
|
|
003a |
173-0166
|
Grommet |
1 |
|
|
003b |
173-6339
|
Grommet (black) |
1 |
|
|
004a |
173-0005
|
18/3 power cord 40 foot (blue) |
1 |
(OEM) |
|
004b |
273-3554
|
18/3 power cord 40 foot (yellow) |
1 |
(OEM) |
|
004c |
991-5008
|
18/3 replacement power cord 50 foot (beige) |
1 |
(NON-OEM) |
|
004d |
991-5100
|
18/3 power cord 40 foot (blue) |
1 |
(NON-OEM) |
|
004e |
991-5007
|
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
|
005a |
173-2385
|
Switch |
1 |
|
|
005b |
273-3549
|
Switch |
1 |
|
|
006a |
173-2352
|
Switch cap (blue) |
1 |
|
|
006b |
173-6340
|
Switch cap (yellow) |
1 |
|
|
007a |
173-2353
|
Switch cap holder (gray) |
1 |
|
|
007b |
173-6341
|
Switch cap holder (black) |
1 |
|
|
008 |
173-2354
|
Cable clamp |
1 |
|
|
009 |
173-0135
|
Screw M3-.5 x 16mm |
1 |
|
|
010 |
173-2355
|
Antistatic wire |
1 |
|
|
011 |
173-2356
|
Interconnect cord |
1 |
|
|
012 |
173-2457
|
Screw M4 x 12mm |
1 |
|
|
013 |
173-2357
|
Handle tube weldment |
1 |
|
|
014 |
173-0007
|
Screw M3-.5 x 13mm |
6 |
|
|
015 |
173-0205
|
Hose |
1 |
|
|
016a |
173-0204
|
Straight extension tube (gray) |
1 |
|
|
016b |
173-6342
|
Extension tube (black) |
1 |
|
|
017a |
173-5231
|
Cover |
1 |
|
|
017b |
173-6343
|
Cover (gray) |
1 |
|
|
018 |
173-2359
|
Bag holder spring |
1 |
|
|
019a |
173-5236
|
Cover release (blue) |
1 |
|
|
019b |
173-6344
|
Cover release (yellow) |
1 |
|
|
020 |
173-2362
|
Bag holder |
1 |
(includes 21-22) |
|
021 |
173-2361
|
Safety catch |
1 |
|
|
022 |
173-0202
|
Safety catch spring |
1 |
|
|
023a |
173-5232
|
Front cover complete |
1 |
(includes 014, 017-022) |
|
023b |
173-6345
|
Front cover (gray) |
1 |
(includes 014, 017-022) |
|
024a |
173-0096
|
Versamatic Plus/Sensor paper bags (pkg of 10) |
1 |
(OEM) |
|
024b |
991-9005
|
Paper vacuum bags (pkg of 10) Versamatic Plus/Sensor |
1 |
(non-OEM) |
|
024c |
991-9150
|
Paper vacuum bags Sensor/VSP (pkg of 10) |
1 |
(NON-OEM) |
|
025a |
173-0102
|
HEPA filter |
1 |
(OEM) |
|
025b |
991-9006
|
HEPA filter |
1 |
(NON-OEM) |
|
025c |
991-9152
|
Micro-hygiene filter |
1 |
(NON-OEM) |
|
026a |
173-2364
|
Internal cover |
1 |
(includes 43-44) |
|
026b |
173-6346
|
Internal cover (gray) |
1 |
(includes 43-44) |
|
027 |
173-2367
|
Cable clamp |
1 |
|
|
028 |
173-2365
|
Filter safety catch |
1 |
|
|
029 |
173-2366
|
Torsion spring |
1 |
|
|
030 |
173-0048
|
Clamp |
1 |
|
|
031 |
173-2370
|
Handle locking plate |
1 |
|
|
032a |
173-2369
|
Catch lock |
1 |
|
|
032b |
173-6347
|
Lock catch |
1 |
|
|
033 |
173-2371
|
Locking pin |
1 |
|
|
034a |
173-2372
|
Carrying handle |
1 |
|
|
034b |
173-6348
|
Carrying handle |
1 |
|
|
035 |
173-0170
|
Spring stop |
1 |
|
|
036a |
173-2373
|
Cord hook |
1 |
|
|
036b |
173-6349
|
Cable hook |
1 |
|
|
037a |
173-0164
|
Retaining ring |
1 |
|
|
037b |
373-9518
|
Karcher gray retaining ring |
1 |
|
|
038a |
173-2384
|
Dust bag housing assembly |
1 |
|
|
039a |
173-0165
|
Attachment clip |
1 |
|
|
039b |
173-6351
|
Dust bag clip |
1 |
|
|
040 |
173-2379
|
Locking rod spring |
1 |
|
|
041 |
173-2375
|
Internal cable |
1 |
|
|
042 |
173-2376
|
Cord clamp |
1 |
|
|
043a |
173-0163
|
Seal |
1 |
|
|
043b |
173-6352
|
Seal |
1 |
|
|
044 |
173-0162
|
Seal |
1 |
|
|
045 |
173-2381
|
Seal |
1 |
|
|
046a |
173-2383
|
Bumper |
1 |
|
|
046b |
173-6353
|
Dust bag bumper base |
1 |
|
|
047a |
173-2368
|
Catch |
1 |
|
|
047b |
173-6354
|
Locking latch |
1 |
|
|
048 |
173-5234
|
Locking rod |
1 |
|
|
049a |
173-2384
|
Dust bag housing assembly |
1 |
(includes 014, 026-037, 039, 040-048) |
|
049b |
173-6355
|
Dust bag housing |
1 |
(includes 014, 026-037, 039, 040-048) |
|
050a |
173-5237
|
Upholstery nozzle |
|
|
|
050b |
173-6357
|
Upholstery nozzle (black) |
1 |
|
|
051 |
173-6356
|
Switch |
1 |
(includes 5-7) |
|
N/S |
173-5238
|
Crevice nozzle |
|
|
|
