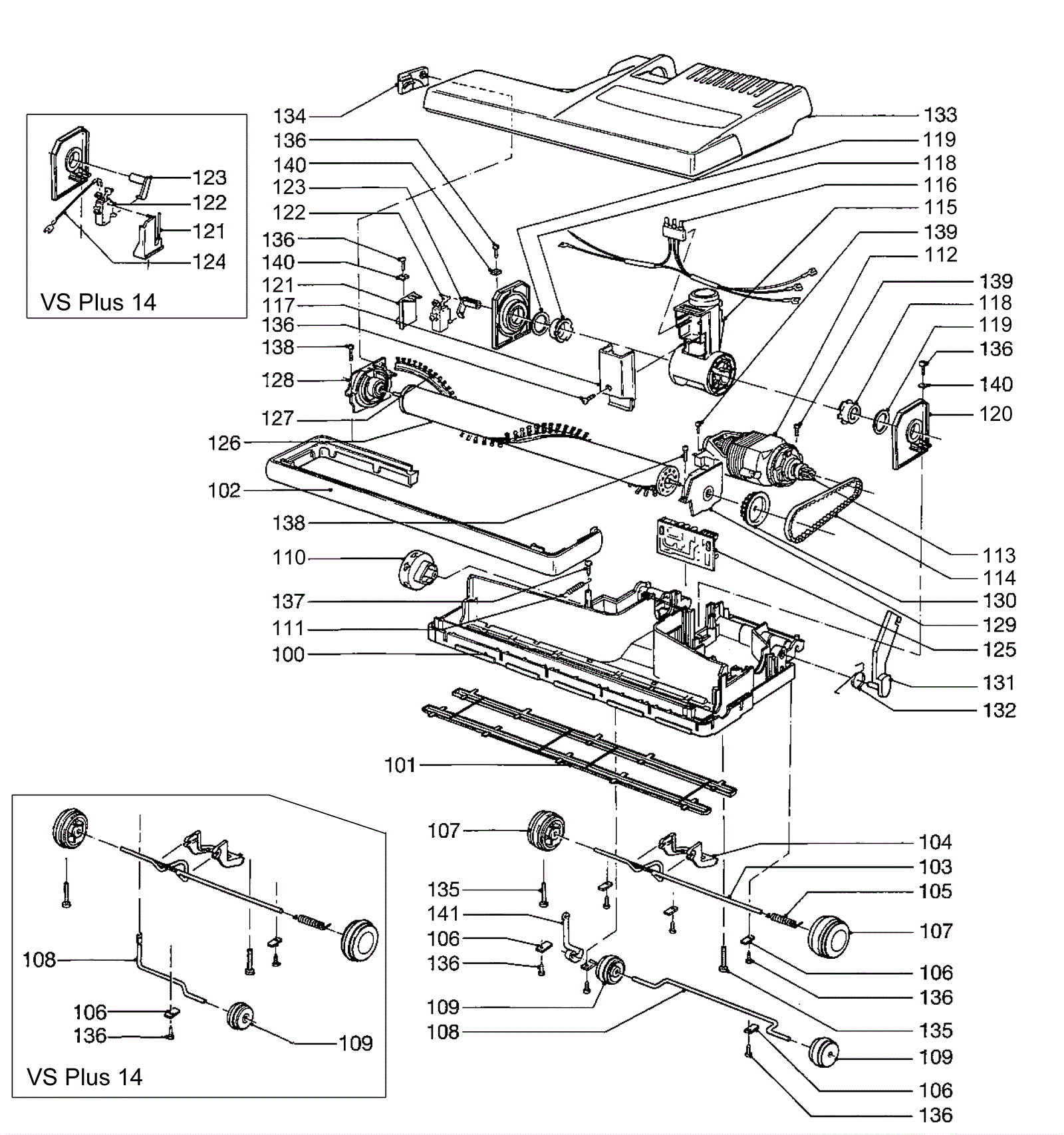

| # | Part | Description |
Req | Notes | Availability |
|---|
100a |
173-0115
|
14 inch chassis |
1 |
|
|
100b |
173-0138
|
18 inch chassis |
1 |
|
|
101a |
173-0101
|
14 inch metal plate set |
1 |
|
|
101b |
173-0139
|
18 inch metal plate set |
1 |
|
|
102a |
173-0116
|
14 inch bumper |
1 |
|
|
102b |
173-0140
|
18 inch bumper |
1 |
|
|
103a |
173-0066
|
Axle |
1 |
(14 inch) |
|
103b |
173-0141
|
Axle |
1 |
(18 inch) |
|
104 |
173-0069
|
Foot pedal |
1 |
|
|
105 |
173-0009
|
Axle spring |
1 |
|
|
106 |
173-0008
|
Axle clamp |
3 |
|
|
107a |
173-0117
|
Wheel (includes hub cap and push nut) |
2 |
(14 inch) |
|
107b |
173-0142
|
Wheel (includes hub cap and push nut) (OBSOLETE) |
2 |
(18 inch) |
|
108a |
173-0072
|
Pile adjustment axle |
1 |
(14 inch) |
|
108b |
173-0143
|
Pile adjustment axle |
1 |
(18 inch) |
|
109 |
173-0118
|
Pile adjustment wheel |
2 |
|
|
110 |
173-0145
|
Pile adjustment lever |
1 |
(18 inch) |
|
111 |
173-0119
|
Pile adjustment knob |
1 |
|
|
112 |
173-0073
|
Spring |
1 |
|
|
113a |
173-0091
|
120V brush motor |
1 |
(14 inch) |
|
113b |
173-0147
|
120V brush motor |
1 |
(18 inch) |
|
113c |
173-0920
|
New style non-spring type carbon brush set |
1 |
|
|
114 |
173-0092
|
Motor pulley |
1 |
|
|
115a |
173-0120
|
Drive belt |
1 |
(14 inch) |
|
115b |
173-0002
|
Drive belt |
1 |
(18 inch) |
|
116a |
173-0121
|
Swivel neck assembly |
1 |
(14 inch) |
|
116b |
173-0148
|
Swivel neck assembly |
1 |
(18 inch) |
|
117a |
173-0122
|
Swivel neck wire |
1 |
(14 inch) |
|
117b |
173-0149
|
Swivel neck wire |
1 |
(18 inch) |
|
118 |
173-0123
|
Swivel neck cover |
1 |
|
|
119 |
173-0124
|
Plastic inside bearing |
2 |
|
|
120 |
173-0125
|
Washer |
2 |
|
|
121 |
173-0126
|
Swivel support |
1 |
|
|
122a |
173-0129
|
Lever switch |
1 |
(14 inch) |
|
122b |
173-0150
|
Switch lever |
1 |
(18 inch) |
|
123 |
173-0128
|
Micro switch |
1 |
|
|
124 |
173-0075
|
Electronic control board |
1 |
(14 inch) |
|
124b |
173-0151
|
Micro switch support |
1 |
(18 inch) |
|
125b |
173-0152
|
120V electronic control board |
1 |
(18 inch) |
|
125c |
273-0934
|
PC board cover |
1 |
|
|
126a |
173-0076
|
14 inch brush assy (no bearing blocks or bearings included) |
1 |
|
|
126b |
173-0153
|
18 inch brush assy (no bearing blocks or bearings included) |
1 |
|
|
127a |
173-0077
|
14 inch brush strip |
2 |
(14 inch) |
|
127b |
173-0100
|
18 inch brush strip |
2 |
(18 inch) |
|
127c |
991-5124
|
18 inch brush strip |
1 |
(NON-OEM) |
|
128a |
173-0078
|
Right hand bearing block with bearings |
1 |
|
|
128b |
991-9172
|
BEARING BLOCK, VSM/VSE RH |
|
(NON-OEM) |
|
129 |
173-0079
|
Left hand bearing block with bearings |
1 |
|
|
130 |
173-0080
|
Brush roller pulley |
1 |
|
|
131 |
173-7393
|
Support lever with spring |
1 |
|
|
132 |
173-0064
|
Torsion spring |
1 |
|
|
133a |
173-0133
|
Cover |
1 |
(14 inch) |
|
133b |
173-0154
|
Cover |
1 |
(18 inch) |
|
134 |
173-0081
|
Brush strip cover with screws |
1 |
|
|
135 |
999-1085
|
Screw M5-.8 x 30mm pan head phillips zinc plated |
2 |
|
|
136 |
173-0007
|
Screw M3-.5 x 13mm |
7 |
|
|
137 |
173-0135
|
Screw M3-.5 x 16mm |
1 |
|
|
138 |
173-0136
|
Screw M3-9 x 19mm (OBSOLETE) |
2 |
|
|
139 |
173-0137
|
Screw M3-9 x 22mm |
2 |
|
|
140 |
173-0090
|
Lock washer |
3 |
|
|
N/S |
173-0075
|
Electronic control board |
1 |
(14 inch) |
|
