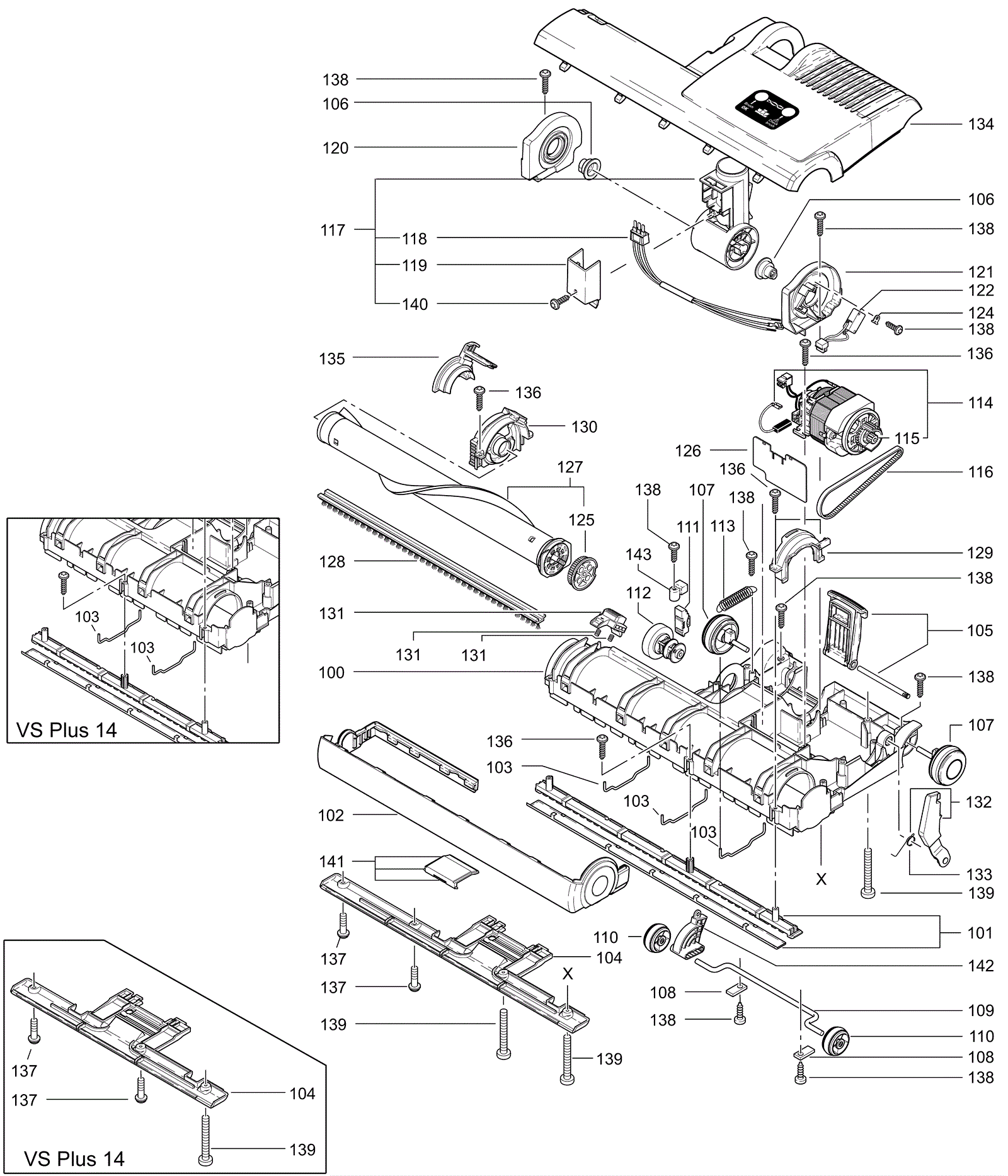

| # | Part | Description |
Req | Notes | Availability |
|---|
100a |
273-0134
|
14 inch chassis |
1 |
(before 01.11.17) |
|
100b |
173-7554
|
14 inch chassis |
1 |
(after 01.11.17) |
|
100c |
273-0106
|
18 inch chassis |
1 |
|
|
101a |
273-0135
|
Rear bottom plate |
1 |
(14 inch) |
|
101b |
273-0107
|
Rear bottom plate |
1 |
(18 inch) |
|
102a |
273-0136
|
Bumper |
1 |
(14 inch) (before 01.11.17) |
|
102b |
173-7555
|
Bumper (black) |
1 |
(14 inch) (after 01.11.17) |
|
102c |
273-0108
|
Bumper |
1 |
(18 inch) |
|
103 |
273-0137
|
Retaining bracket |
3 |
|
|
104a |
273-0111
|
Bottom plate |
1 |
(14 inch) (before 01.11.17) |
|
104b |
173-7556
|
Rear bottom plate |
1 |
(14 inch) (after 01.11.17) |
|
104c |
273-0109
|
Bottom plate |
1 |
(18 inch) |
|
105a |
273-0112
|
Foot pedal |
1 |
(before 01.11.17) |
|
105b |
173-7557
|
Foot pedal |
1 |
(after 01.11.17) |
|
105c |
173-7558
|
Foot pedal axle |
1 |
(after 01.11.17) |
|
106 |
273-0113
|
Swivel neck bearing (pkg of 2) |
2 |
|
|
107a |
173-4235
|
Wheel |
2 |
(before 01.11.17) |
|
107b |
173-7559
|
Wheel (black) |
2 |
(after 01.11.17) |
|
108 |
173-0008
|
Axle clamp |
2 |
|
|
109 |
273-0115
|
Pile adjustment axle |
1 |
|
|
110a |
173-0118
|
Pile adjustment wheel |
2 |
(before 01.11.17) |
|
110b |
173-7560
|
Pile adjustment wheel |
2 |
(after 01.11.17) |
|
111 |
173-5260
|
Thrust member |
1 |
|
|
112a |
273-0116
|
Adjustment button |
1 |
(before 01.11.17) |
|
112b |
173-7561
|
Adjustment button |
1 |
(after 01.11.17) |
|
113 |
173-0073
|
Spring |
1 |
|
|
114a |
173-5345
|
Brush motor |
1 |
(includes 114b-115) |
|
114b |
173-6319
|
Carbon brush set |
1 |
|
|
115 |
173-5354
|
Brush motor pulley |
1 |
|
|
116 |
173-5342
|
Belt |
1 |
|
|
117 |
173-6313
|
Swivel neck assembly |
1 |
(includes 118-119, 140) |
|
118 |
173-6314
|
Wire |
1 |
|
|
119 |
173-0123
|
Swivel neck cover |
1 |
|
|
120 |
273-0119
|
Right side swivel neck support |
1 |
|
|
121 |
273-0120
|
Left side swivel neck support |
1 |
|
|
122 |
173-6315
|
Switch lever |
1 |
|
|
124 |
173-0048
|
Clamp |
1 |
|
|
125 |
273-0121
|
Brush pulley |
1 |
|
|
126a |
173-6316
|
120V circuit board |
1 |
(14 inch) |
|
126b |
173-6309
|
120V control board |
1 |
(18 inch) |
|
127a |
273-0123
|
14 inch brush assembly |
1 |
(includes 125) |
|
127b |
273-0140
|
18 inch brush assembly |
1 |
(includes 125) |
|
128a |
173-0077
|
14 inch brush strip |
1 |
|
|
128b |
173-0100
|
18 inch brush strip |
1 |
|
|
128c |
991-5124
|
18 inch brush strip |
1 |
(NON-OEM) |
|
129 |
273-0124
|
Left side bearing block |
1 |
|
|
130a |
273-0125
|
Right side bearing block |
1 |
(before 01.11.17) |
|
130b |
173-7562
|
Right side bearing block (black) |
1 |
(after 01.11.17) |
|
131a |
273-0126
|
Brush roller release |
1 |
(before 01.11.17) |
|
131b |
173-7563
|
Brush roller release |
1 |
(after 01.11.17) |
|
132 |
173-7393
|
Support lever with spring |
2 |
|
|
133 |
173-0064
|
Torsion spring |
1 |
|
|
134a |
173-6317
|
14 inch power head cover |
1 |
(before 01.11.17) |
|
134b |
173-6405
|
14 inch power head cover (gray) |
1 |
(after 01.11.17) |
|
134c |
173-6318
|
18 inch power head cover |
1 |
|
|
135a |
273-0129
|
Side plate |
1 |
(before 01.11.17) |
|
135b |
173-7565
|
Side plate (black) |
1 |
(after 01.11.17) |
|
136 |
173-4217
|
Screw M4-.7 x 20mm self-tapping torx |
4 |
|
|
137 |
273-0939
|
Screw M4-.7 x 12mm with washer |
2 |
|
|
138 |
273-0130
|
Screw M4-.7 x 14mm |
9 |
|
|
139 |
999-1518
|
Screw M4-.7 x 30mm pan head phillips zinc plated |
3 |
|
|
140 |
173-0007
|
Screw M3-.5 x 13mm |
1 |
|
|
141a |
273-0139
|
Access door |
1 |
(before 01.11.17) |
|
141b |
273-3546
|
Access door |
1 |
(after 01.11.17) |
|
142 |
273-0131
|
Lever |
1 |
|
|
143 |
273-0132
|
Leaf hinge |
1 |
|
|
