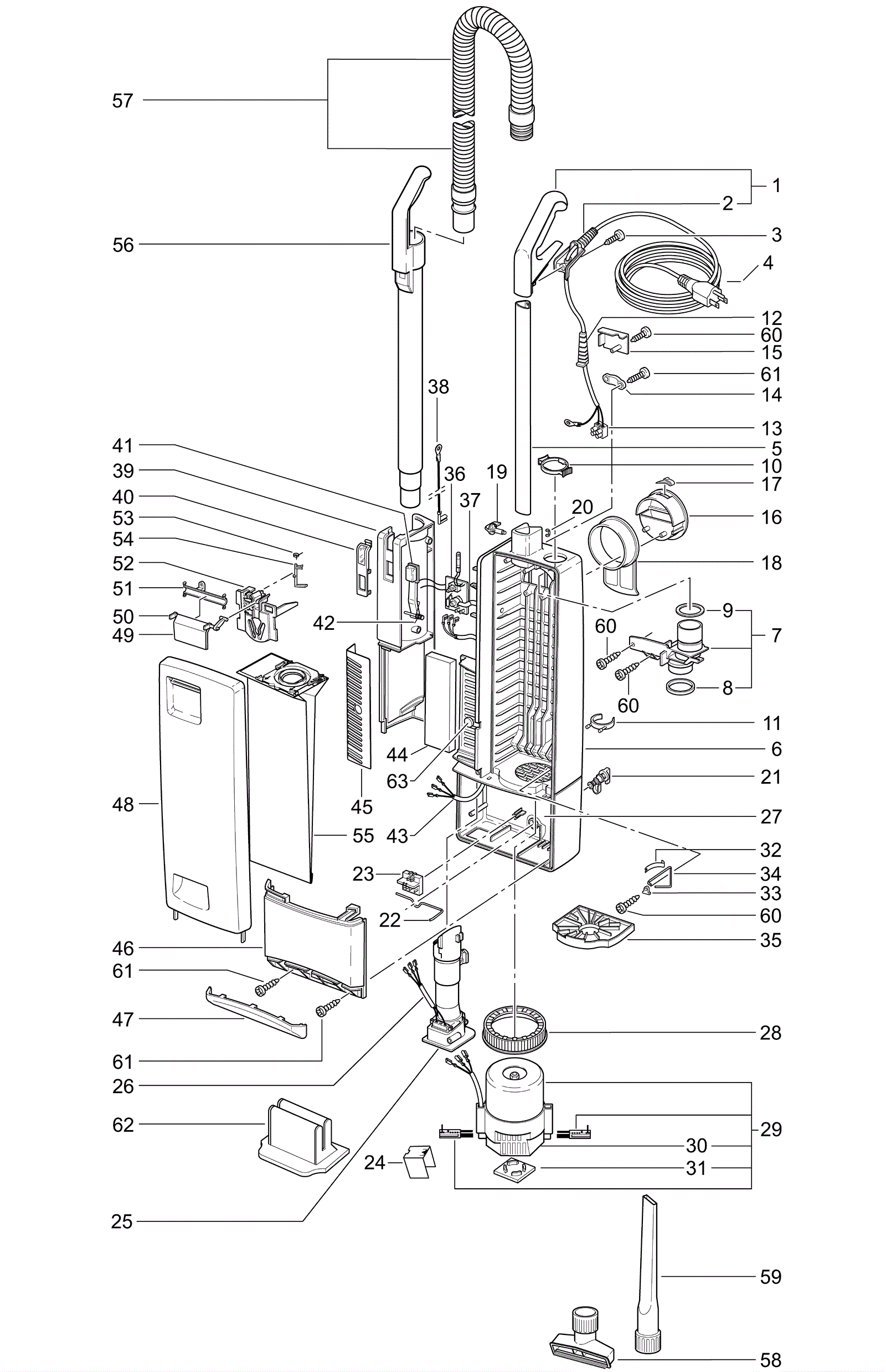

JAVELIN 14 Upper Body Assembly

#PartDescriptionPriceReqNotesAvailability
1a 173-0156 Handle grip assembly $43.78 1 (includes 2) (before 01.11.17) ships same day
1b 173-7536 Handle grip (black) $39.93 1 (includes 2) (after 01.11.17) usually ships 14-22 days
2a 173-0157 Handle cover $11.33 1 (before 01.11.17) usually ships 14-22 days
2b 173-7537 Handle cover (black) $11.11 1 (after 01.11.17) usually ships 14-22 days
3a 173-4211 Screw M4-.7 x 10mm $3.94 1 (after 08.01.12) usually ships 14-22 days
3b 173-0158 Screw $1.64 1 (after 08.01.12) usually ships 14-22 days
4a 273-7614 18/3 power cord (yellow) $103.95 1 (OEM) (14 inch) usually ships 14-22 days
4b 991-5100 18/3 power cord 40 foot (blue) $37.63 1 (NON-OEM) ships same day
4c 273-7614 18/3 power cord (yellow) $103.95 1 (OEM) (18 inch) usually ships 14-22 days
4d 991-5008 18/3 replacement power cord 50 foot (beige) $43.29 1 (NON-OEM) ships same day
4e 173-7535 Power cord $103.96 1 (OEM) (after 01.11.17) usually ships 14-22 days
4f 991-5007 18/3 replacement power cord 50 foot (black) $32.10 1 (NON-OEM) ships same day
5 173-0159 Handle $55.55 1 ships same day
6a 173-0160 Dust bag housing $238.70 1 (before 01.11.17) ships same day
6b 173-6396 Dust bag housing (gray) $209.00 1 (after 01.11.17) usually ships 14-22 days
7a 173-0161 Internal cover $38.39 1 (includes 8-9) (before 01.11.17) usually ships 14-22 days
7b 173-6397 Internal cover (gray) $43.01 1 (includes 8-9) (after 01.11.17) usually ships 14-22 days
8 173-0162 Seal $12.87 1 usually ships 14-22 days
9 173-0163 Seal $3.39 1 usually ships 14-22 days
10a 173-0164 Retaining ring $5.59 1 (before 01.11.17) ships same day
10b 273-8764 Karcher gray retaining ring $1.91 1 (after 01.11.17) ships same day
11a 173-0165 Attachment clip $7.21 1 (before 01.11.17) usually ships 14-22 days
11b 173-6351 Dust bag clip $14.19 1 (after 01.11.17) usually ships 14-22 days
12a 173-0166 Grommet $4.11 1 (before 01.11.17) ships same day
12b 173-6339 Grommet (black) $7.37 1 (after 01.11.17) ships same day
13 173-0167 Terminal block (2 wire) (OBSOLETE) $30.47 1 usually ships 14-22 days
14 173-0030 Cable clamp $3.58 1 usually ships 14-22 days
15a 173-0168 Cover $9.96 1 (before 01.11.17) usually ships 14-22 days
15b 173-6398 Brush strip cover (gray) $16.39 1 (after 01.11.17) usually ships 14-22 days
16a 173-0169 Carrying handle $33.66 1 (before 01.11.17) usually ships 1-5 days
16b 173-6399 Carrying handle (gray) $29.59 1 (after 01.11.17) usually ships 14-22 days
17 173-0170 Spring stop $4.48 1 usually ships 14-22 days
18a 173-0171 Cable hook $33.73 1 (before 01.11.17) usually ships 14-22 days
18b 173-6400 Cable hook (gray) $27.39 1 (after 01.11.17) usually ships 14-22 days
19a 173-0172 Handle catch $22.66 1 (before 01.11.17) usually ships 14-22 days
19b 173-6401 Handle catch (gray) $16.39 1 (after 01.11.17) usually ships 14-22 days
20 173-0173 Clip $1.28 1 usually ships 14-22 days
21a 173-0174 Locking catch $29.59 1 (before 01.11.17) usually ships 14-22 days
21b 173-6402 Locking catch (gray) $25.08 1 (after 01.11.17) usually ships 14-22 days
22 173-0175 Locking rod $24.20 1 usually ships 14-22 days
23 173-0052 Terminal block (3 wire) $43.78 1 usually ships 14-22 days
24 173-0060 Terminal block cover $9.08 1 usually ships 14-22 days
25a 173-0176 Connector tube $54.89 1 (before 01.11.17) usually ships 14-22 days
25b 173-6403 Connector (gray) $49.28 1 (after 01.11.17) usually ships 14-22 days
26 173-0177 Female contact holder $41.47 1 usually ships 14-22 days
27 173-0178 Sound insulation $15.62 1 usually ships 14-22 days
28 173-0029 Vacuum motor seal $33.66 1 usually ships 14-22 days
29a 173-0179 120V vacuum motor $514.90 1 (includes 29b-31) usually ships 14-22 days
29b 173-0180 Carbon brush (set of 2) $73.70 1 usually ships 14-22 days
30 173-4727 Motor cover $39.16 1 usually ships 14-22 days
31 173-6311 Motor support $25.74 1 usually ships 1-5 days
32 173-0046 Leaf spring $5.32 1 usually ships 14-22 days
33 173-0048 Clamp $3.39 1 usually ships 14-22 days
34 173-0183 Connecting rod $10.45 1 usually ships 14-22 days
35a 173-0109 Vacuum motor filter $22.59 1 (OEM) ships same day
35b 991-9007 Vacuum motor filter $6.05 1 (NON-OEM) ships same day
36a 273-0933 PC board cover $12.54 1 usually ships 1-5 days
36b 173-0184 Circuit board w/ on/off switch $105.60 1 usually ships 14-22 days
37 173-0185 Fitting $14.41 1 usually ships 1-5 days
38 173-0186 Grounding wire $8.58 1 usually ships 1-5 days
39a 173-0187 Suction pipe cover $135.30 1 (before 01.11.17) usually ships 14-22 days
39b 173-7694 Vacuum tube cover (gray) $122.10 1 (after 01.11.17) usually ships 14-22 days
40a 173-0188 Bag light indicator lens $30.47 1 (before 01.11.17) usually ships 14-22 days
40b 173-7695 Bag light indicator lens $13.48 1 (after 01.11.17) usually ships 14-22 days
41a 173-0189 Switch button $14.41 1 (before 01.11.17) usually ships 14-22 days
41b 173-7696 Switch button (yellow) $17.27 1 (after 01.11.17) usually ships 14-22 days
42 173-0190 Spring $2.32 1 ships same day
43 173-0191 Internal cable (OBSOLETE) $34.32 1 usually ships 14-22 days
44a 173-0108 Exhaust filter $4.46 1 (OEM) ships same day
44b 991-5147 Exhaust filter $7.46 1 (NON-OEM) usually ships 14-32 days
45a 173-0192 Exhaust filter cover $30.47 1 (before 01.11.17) ships same day
45b 173-7697 Exhaust filter cover (grey) $8.42 1 (after 01.11.17) usually ships 14-22 days
46a 173-0193 Motor cover $83.60 1 (before 01.11.17) usually ships 14-22 days
46b 173-7413 Motor cover $110.94 1 (Service Master models) usually ships 14-22 days
46c 173-7698 Motor cover dual motor (gray) $118.27 1 (after 01.11.17) usually ships 14-22 days
47a 173-0194 Bumper $25.34 1 (before 01.11.17) usually ships 14-22 days
47b 173-7699 Dust bag housing bumper (gray) $23.87 1 (after 01.11.17) usually ships 14-22 days
48a 173-0195 Front cover assembly $155.12 1 (before 01.11.17) ships same day
48b 273-4353 Front cover $130.90 1 (after 01.11.17) usually ships 14-22 days
49a 173-0196 Cover release $25.08 1 (before 01.11.17) usually ships 14-22 days
49b 173-7701 Cover release (yellow) $21.89 1 (after 01.11.17) usually ships 14-22 days
50 173-0197 Cover release seal $5.61 1 usually ships 14-22 days
51 173-0198 Plastic axle cover $7.10 1 usually ships 14-22 days
52 173-0199 Bag holder $25.96 1 ships same day
53 173-0202 Safety catch spring $5.50 1 ships same day
54 173-0203 Safety catch $8.25 1 ships same day
55a 173-0096 Versamatic Plus/Sensor paper bags (pkg of 10) $42.79 1 (OEM) ships same day
55b 991-9005 Paper vacuum bags (pkg of 10) Versamatic Plus/Sensor $16.01 1 (NON-OEM) ships same day
55c 991-9150 Paper vacuum bags Sensor/VSP (pkg of 10) $12.59 1 (NON-OEM) usually ships 14-21 days
56a 173-0204 Straight extension tube (gray) $90.20 1 (before 01.11.17) usually ships 12-18 days
56b 173-6342 Extension tube (black) $90.64 1 (after 01.11.17) ships same day
57 173-0205 Hose $94.05 1 ships same day
58a 173-5237 Upholstery nozzle $45.43 1 (before 01.11.17) ships same day
58b 173-6357 Upholstery nozzle (black) $10.73 1 (after 01.11.17) usually ships 14-22 days
59a 173-5238 Crevice nozzle $40.70 1 (before 01.11.17) ships same day
59b 173-7532 Crevice tool (black) $44.55 1 (after 01.11.17) usually ships 14-22 days
60 173-0007 Screw M3-.5 x 13mm $1.91 4 ships same day
61 173-0135 Screw M3-.5 x 16mm $0.99 3 ships same day
62 173-0110 Micro-hospital grade vacuum filter $56.21 1 ships same day
63a 173-0207 Retaining button $14.43 1 (before 01.11.17) usually ships 14-22 days
63b 173-6404 Retaining button (gray) $19.58 1 (after 01.11.17) usually ships 14-22 days
